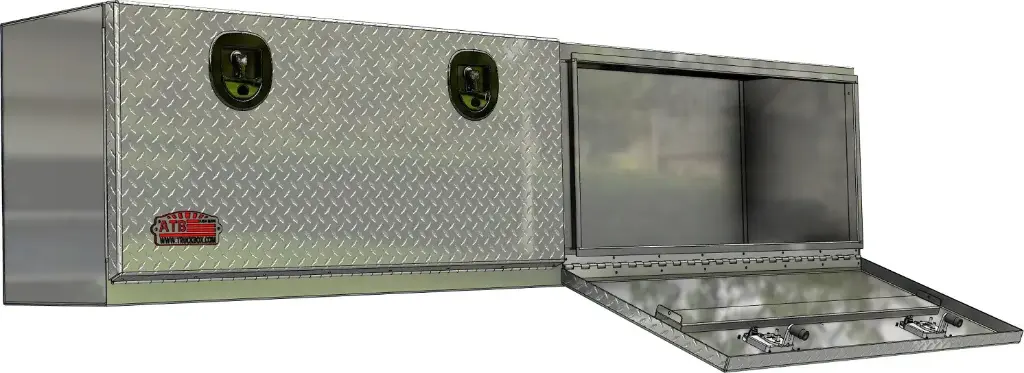

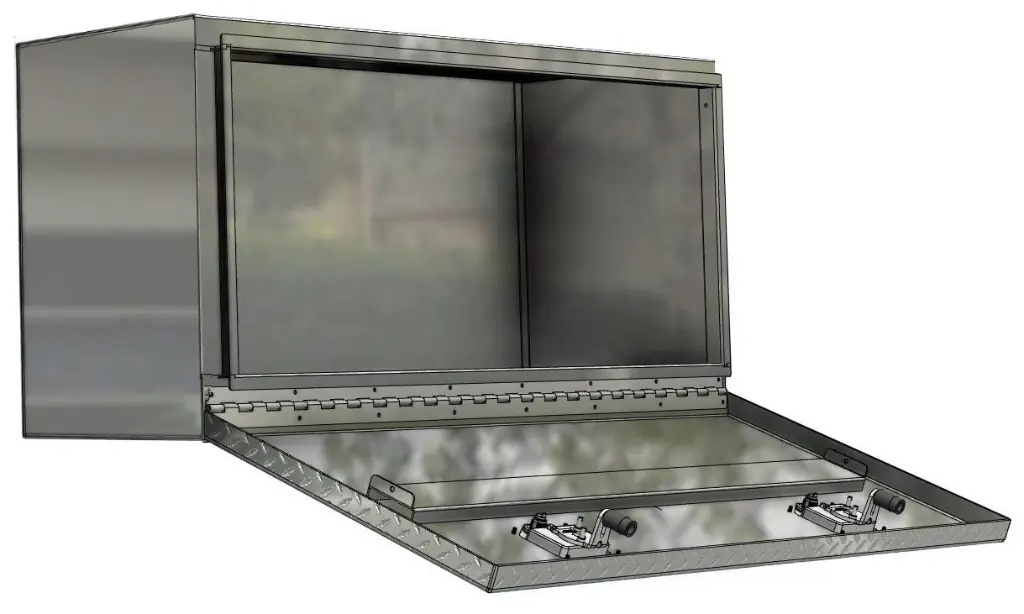

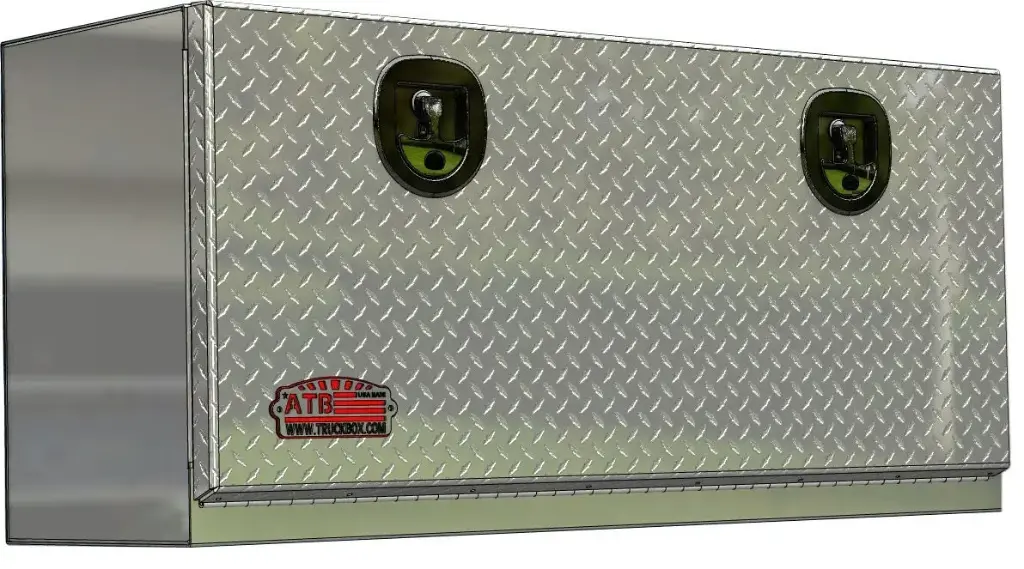

ATB Service Topside Utility Tool Box

 The ATB aluminum service topside utility tool box can be mounted on pickup truck rails, flat beds, service trucks, or trailers.

The topside service utility box is available with a single or double door and a flip up door or drop down door design.

The topside tool box features a concealed rain gutter with water resistant weather sealing and a lockable T handle latch.

ATB Service Topside Utility Tool Box Features:

• .10 inch Aluminum Diamond Tread.

• Fully seam welded on all seams and corners.
• Stainless steel continuous hinge on full length of door.
• Channel braced reinforced door with gas springs.
• Concealed rain gutter with automotive bulb weather seal.

• Lockable SS Dolphin Tail HD adjustable T-Handle latch.
• Reinforced bottom gutter or door frame.
• Zinc epoxy primer with MR powder baked topcoat finish.

Topside Tool Box Optional Features:

• Optional Mounting kit.

ATB Topside Tool Box Sizes / Dimensions / Weight (aluminum / steel):

Single Door

• 63"L x 14"W x 16"H: Door Height 12" / Door Length 59" / 56 pounds
• 72"L x 14"W x 16"H: Door Height 12" / Door Length 68" / 63 pounds
• 63"L x 16"W x 18"H: Door Height 14" / Door Length 59" / 64 pounds
• 72"L x 16"W x 18"H: Door Height 14" / Door Length 68" / 72 pounds
• 72"L x 16"W x 21"H: Door Height 17" / Door Length 68" / 78 pounds
• 72"L x 16"W x 24"H: Door Height 20" / Door Length 68" / 84 pounds

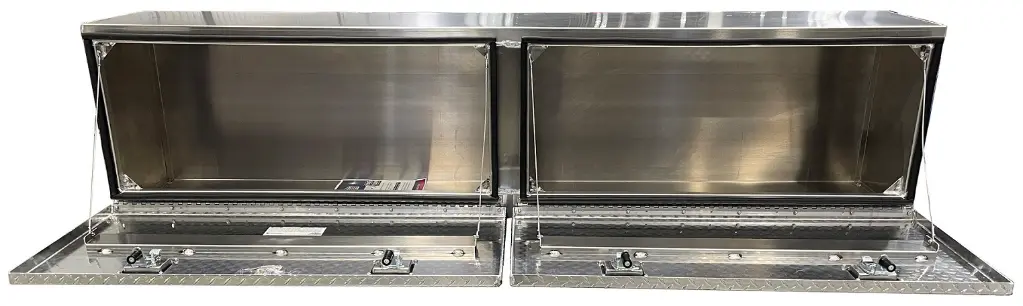

Double Door

• 88"L x 14"W x 16"H: Door Height 12" / Door Length 47" / 74 pounds
• 88"L x 16"W x 18"H: Door Height 14" / Door Length 47" / 83 pounds
• 90"L x 16"W x 18"H: Door Height 14" / Door Length 41" / 85 pounds
• 96"L x 16"W x 18"H: Door Height 14" / Door Length 51" / 89 pounds
• 84"L x 16"W x 21"H: Door Height 17" / Door Length 46" / 86 pounds
• 88"L x 16"W x 21"H: Door Height 17" / Door Length 47" / 90 pounds
• 96"L x 16"W x 21"H: Door Height 17" / Door Length 51" / 97 pounds
• 90"L x 16"W x 24"H: Door Height 20" / Door Length 41" / 92 pounds
• 96"L x 16"W x 24"H: Door Height 20" / Door Length 51" / 98 pounds




Other Tool Box Options:

• For more options see other Service Truck Tool Box options or all ATB Boxes.
