Fol-Da-Tank Single Lane Rural Water Tank

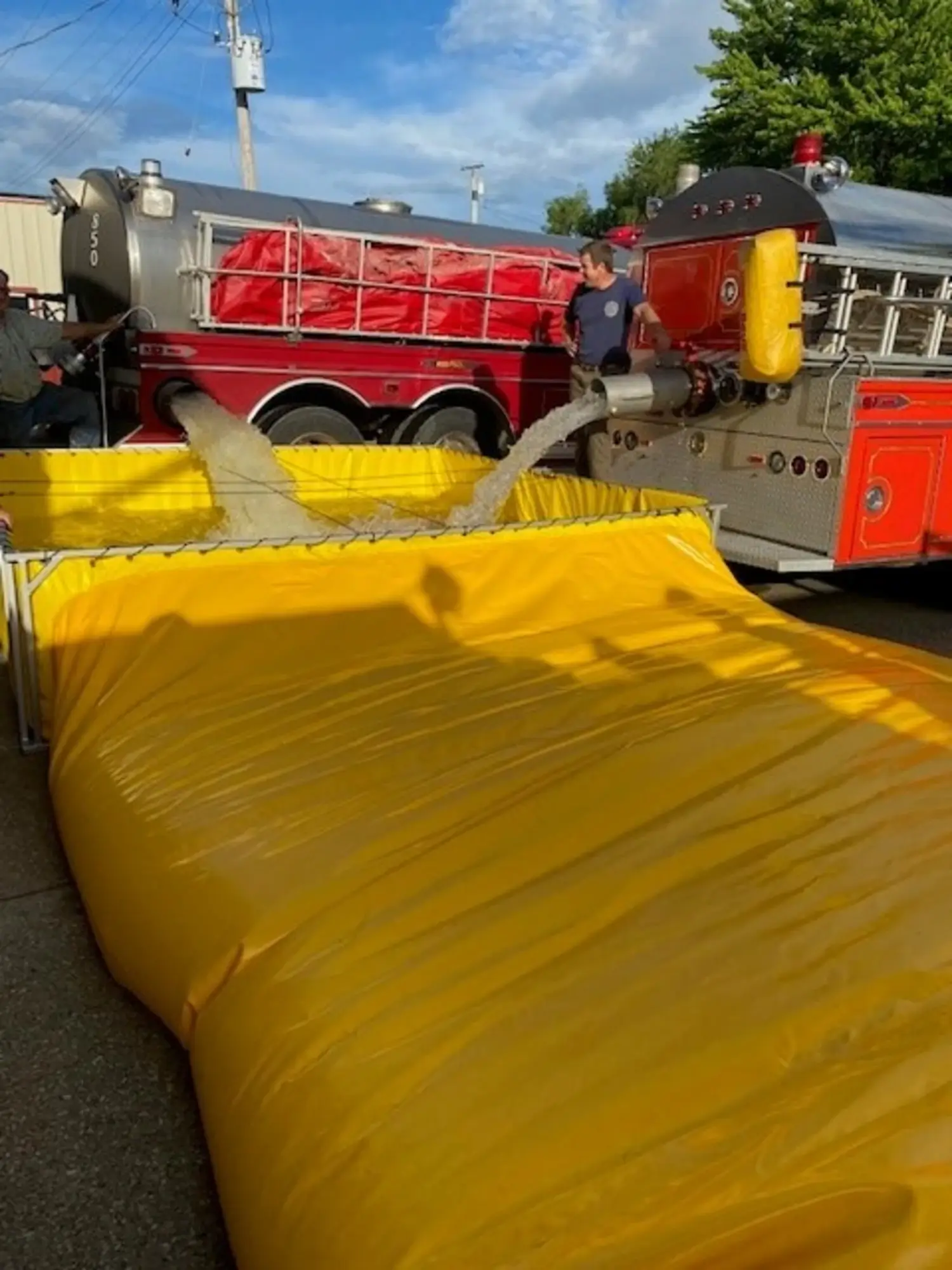

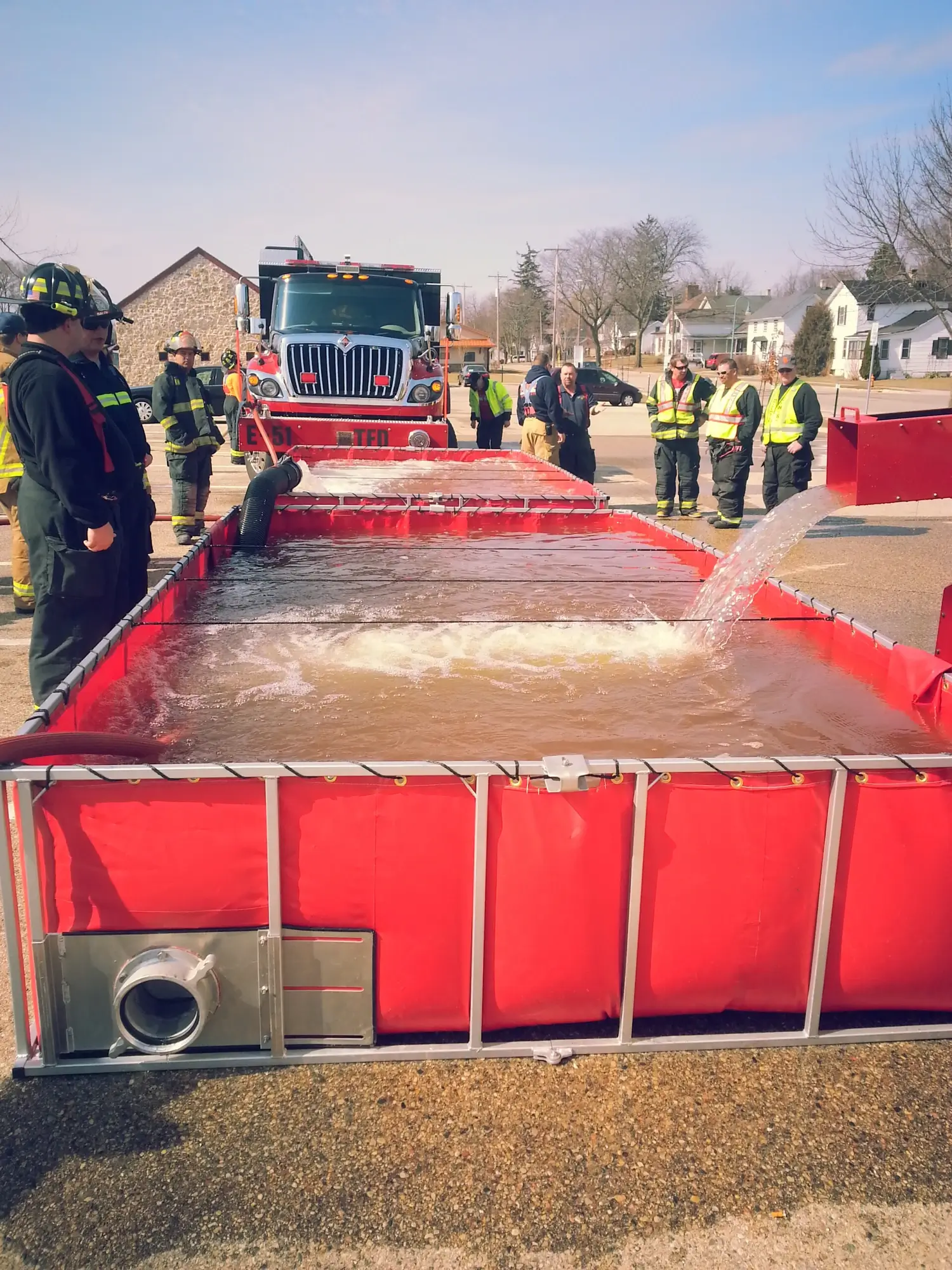

The Fol-Da-Tank Single Lane Water Tank is a water tank designed for efficient fire fighting operations in rural areas with narrow roads.

The Single Lane tank is available with rectangular, circular or square tank with bladder designs.

The single lane tank design will give you maximum capacity on the ground without affecting the opposite lane of traffic. This design works especially well for narrow rural roads that have little or no shoulder.

Choose Single Lane Type I, Type II or Max models:

• Type I - Smaller length and slightly wider than type II.
• Type II - Longer length and narrower width than type I.

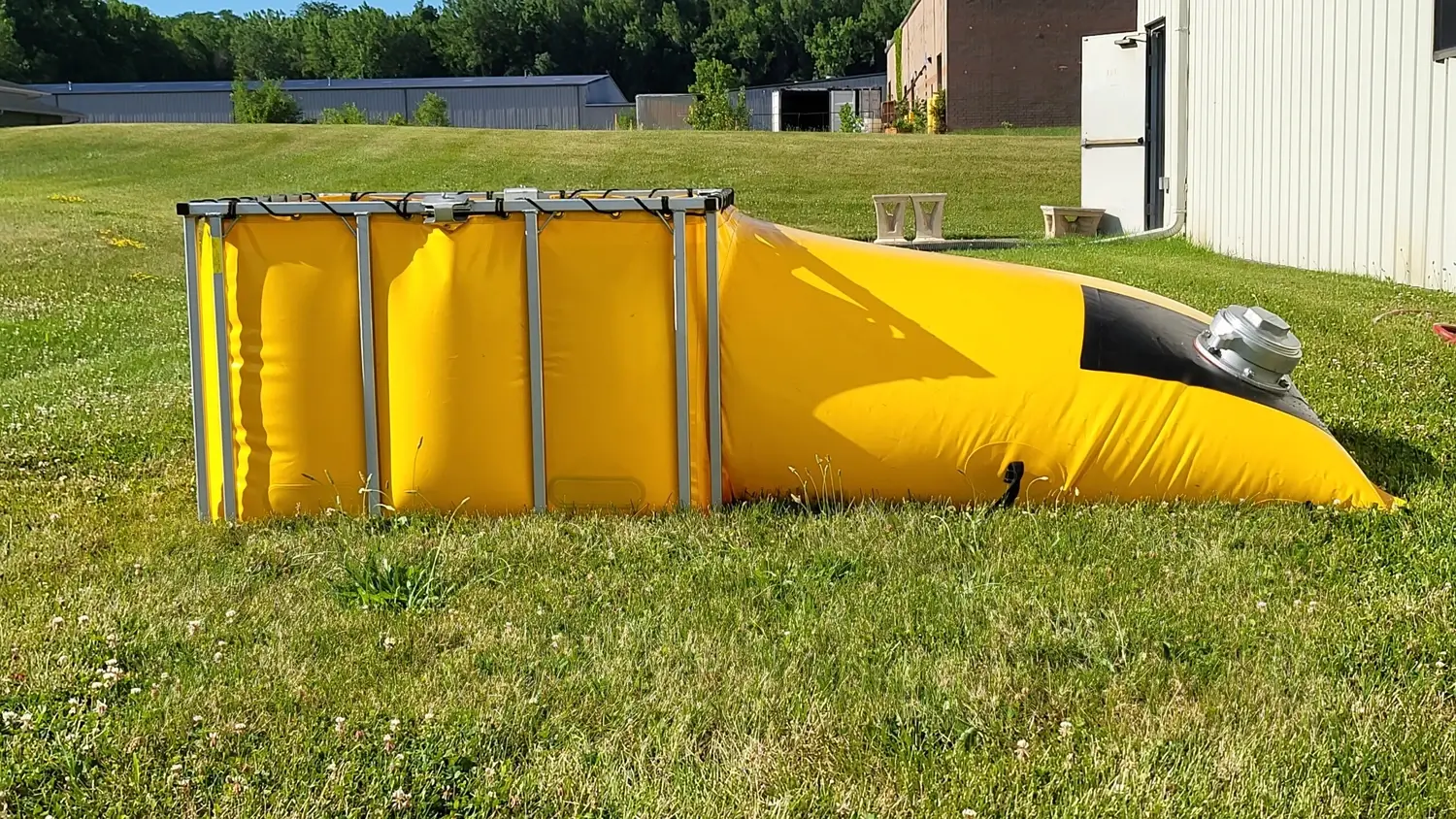

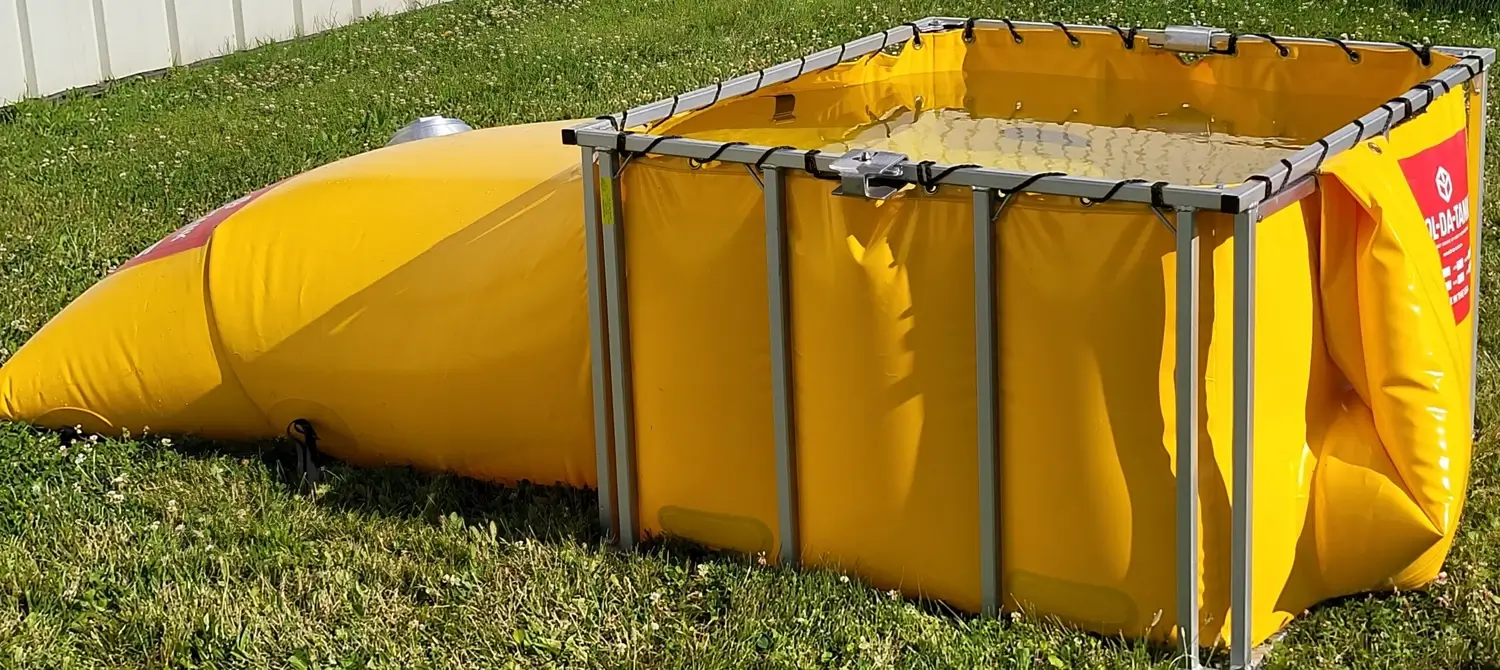

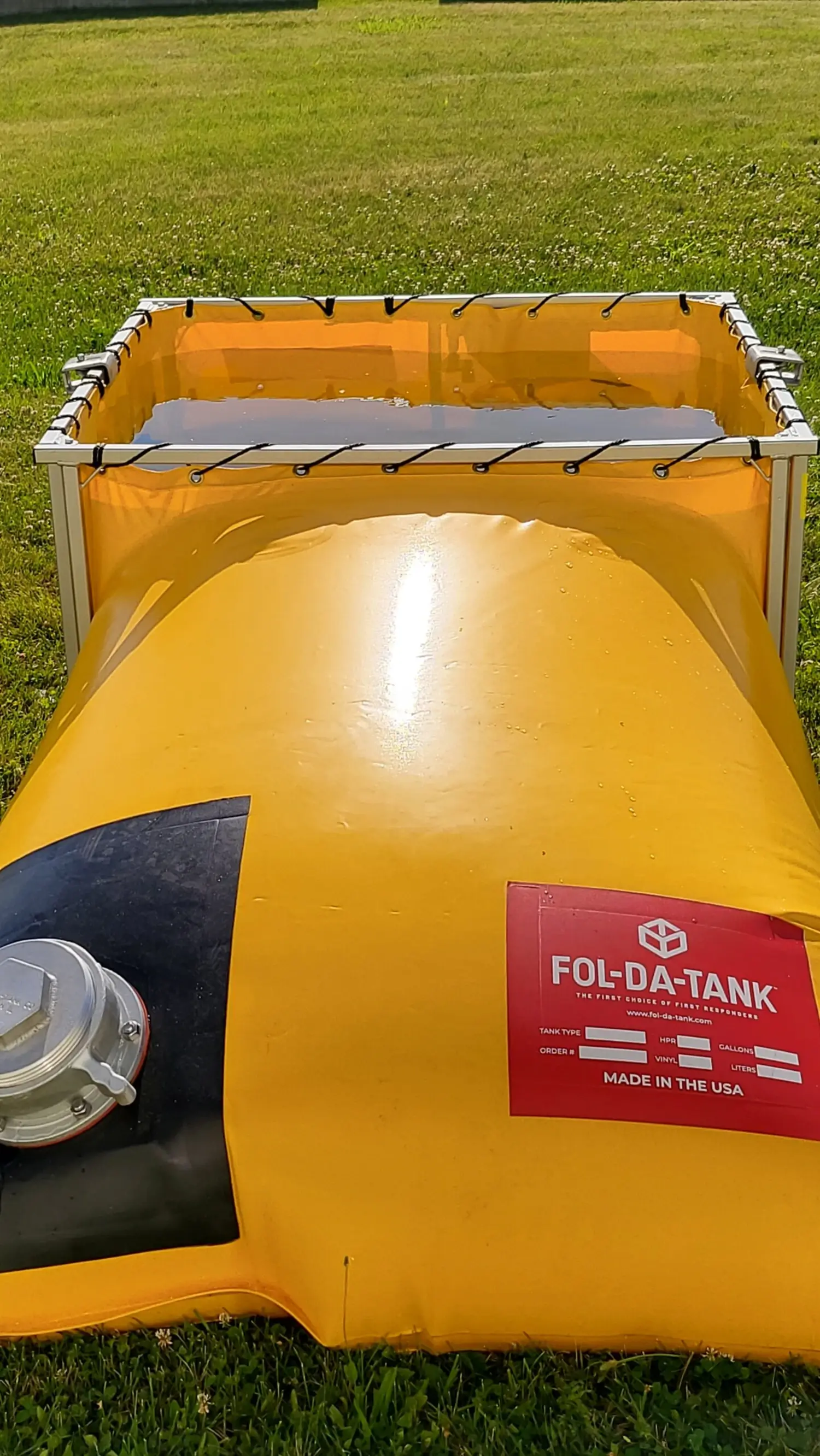

• Max - Built-in bladder for extra water storage capacity.

Features

• Available in steel or aluminum.
• Steel frame is .875 inch rounded steel.
• Aluminum frame is 1 inch square aluminum.
• Narrow frame design for narrow rural roads with limited shoulders.
• Narrow frame can be setup without impacting the opposing lane of traffic.
• Max model offers built-in bladder for extra capacity.

Sizes / Dimensions / Closed Dimensions / weight (steel / aluminum)

*Steel frame has more rounded design & aluminum frame has a square design; but opened tank dimensions are the same for both steel and aluminum tanks.

Type I

• 2,000 gallons: 168"L x 96"W x 29"H / 168"L x 8"W x 29"H / 165 / 125 pounds
• 2,500 gallons: 192"L x 108"W x 29"H / 192"L x 8"W x 29"H / 165 / 130 pounds
• 3,000 gallons: 192"L x 120"W x 29"H / 192"L x 8"W x 29"H / 165 / 135 pounds

Type II

• 2,000 gallons: 228"L x 93"W x 29"H / 132"L x 8"W x 29"H / 165 / 125 pounds
• 2,500 gallons: 264"L x 96"W x 29"H / 168"L x 8"W x 29"H / 175 / 130 pounds
• 3,000 gallons: 276"L x 108"W x 29"H / 168"L x 8"W x 29"H / 185 / 135 pounds

Max / Tank / Tank + Bladder Gallons / Open Dimensions no bladder & with bladder

• 1,000/2,500 gallons: 8'3"L x 8'3"W x 29"H / 8'3"L x 22'3"W x 29" w/ bladder
• 1,500/3,500 gallons: 10'3"L x 10'3"W x 29"H / 10'3"L x 24'8"W x 29" w/ bladder
• 2,100/5,000 gallons: 11'3"L x 11'3"W x 29"H / 11'3"L x 26'3"W x 29" w/ bladder

Max Tank Closed Dimensions / Weight (Steel / Aluminum)

• 1,000/2,500 gallons: 8'3"L x 12"W x 29"H / 225 / 200 pounds
• 1,500/3,500 gallons: 10'3"L x 12"W x 29"H / 245 / 220 pounds
• 2,100/5,000 gallons: 11'3"L x 12"W x 29"H / 265 / 240 pounds

Liner Material

• 22 ounce High Performance Rubber (HPR) for heavy duty applications
• 22 ounce Vinyl standard material

Colors

*red and yellow only for HPR / vinyl available in the following colors:

• Red
• Yellow
• Orange
• Blue
• Black

Additional Options:
