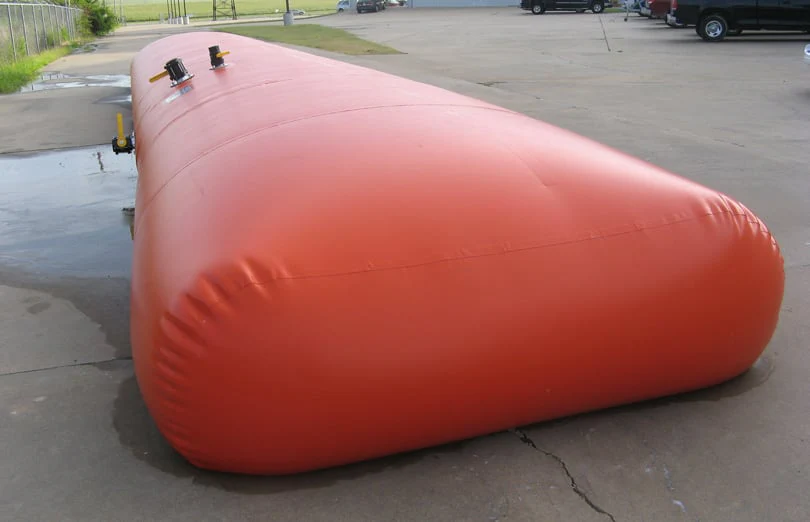

Husky Bladder Tank

Husky Bladder Tanks are available for storage of potable water, gray water, and black water.  Available bladder sizes range from 25 gallons to 20,000 gallons.

Choose from the following Bladder Types:

• Potable Water: liner material designed for the storage of drinking water.
• Gray Water: liner material designed for the storage of non-drinking water.
• Black Water: chemical resistant liner designed for the storage of waste water, sewage and other liquid chemical storage.

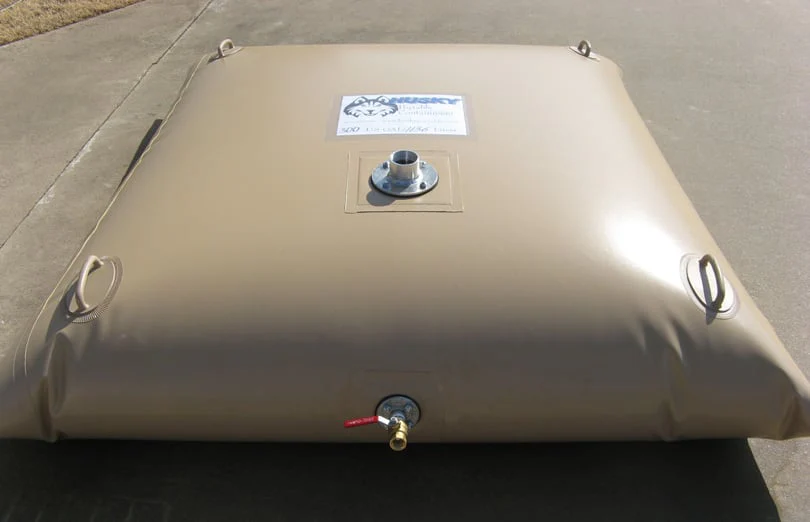

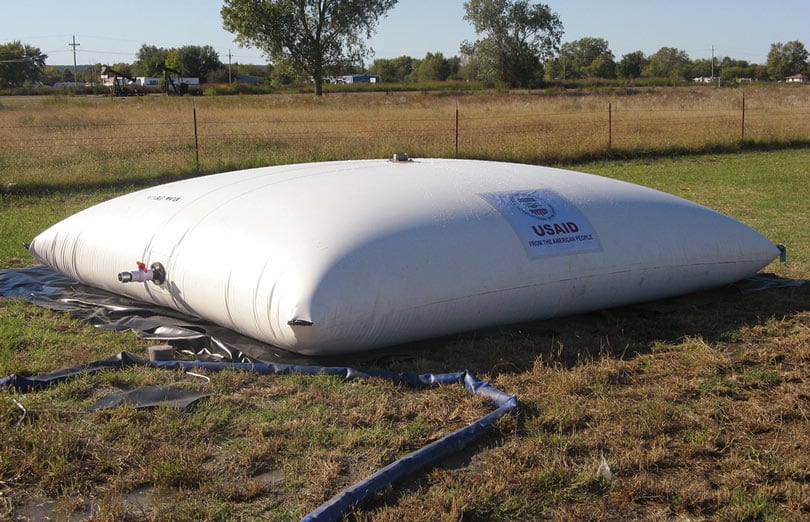

Potable Water Bladder

Potable Bladder Features:

• NSF 61 (potable drinking water)
• Provide drinking water storage for disaster area victims.

• Rainwater collection for irrigation systems.

• Water storage for greenhouse nurseries.
• Farming, watering livestock or treating with insecticides.
• 25 gallon to 1,000 gallon sizes ship by UPS.  Larger sizes ship by freight.
• Maneuvering straps near the corners and every 5' down the sides.
• Available in Black color.
• Double T style vents.

Potable Water Bladder Fittings:

• 25 to 100 Gallons: 4" fill port inlet / 3/4" pvc outlet with ball valve.
• 150 to 500 Gallons: 4" fill port inlet / 1.5" pvc outlet with ball valve.
• 600 to 1,000 Gallons: 1.5" inlet with plug / 1.5" pvc outlet with ball valve.
• 1,250 to 5,000 Gallons: 2" inlet with plug / 2" pvc outlet with ball valve.

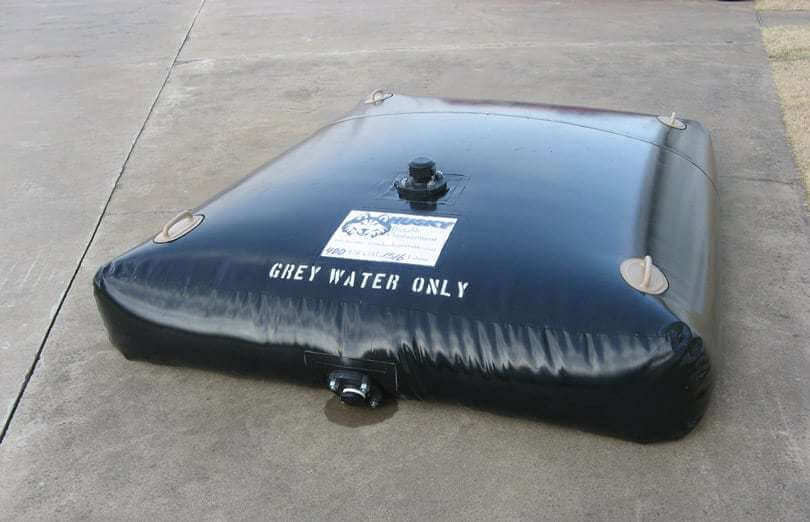

Gray Water Bladder

Gray Water Bladder Fittings:

• 25 to 100 Gallons: 4" fill port inlet / 3/4" pvc outlet with ball valve.
• 150 to 500 Gallons: 4" fill port inlet / 1.5" pvc outlet with ball valve.
• 600 to 1,000 Gallons: 1.5" inlet with plug / 1.5" pvc outlet with ball valve.
• 1,250 to 5,000 Gallons: 2" inlet with plug / 2" pvc outlet with ball valve.

Black Water Bladder

Black Water Bladder Features:

• Manufactured to meet commercial specs.
• Designed with XR-5 geomembrane (chemical resistant material).
• Stringent quality control. All Husky bladders are tagged, signed, and dated with inspection labels.
• 25 gallon to 1,000 gallon sizes ship by UPS. Larger sizes ship by freight.
• Fittings: PVC (NSF 61), Aluminum, Stainless Steel, Brass.
• Fitting sizes from .75" to 6".
• Maneuvering straps near the corners and every 5' down the sides.
• Double T style vents.

Black Water Bladder Fittings:

• 25 to 100 Gallons: 4" fill port inlet / 3/4" pvc outlet with ball valve.
• 150 to 500 Gallons: 4" fill port inlet / 1.5" banjo outlet with ball valve.
• 600 to 1,000 Gallons: 1.5" banjo inlet w/ plug / 1.5" banjo outlet w/ ball valve.
• 1,250 to 5,000 Gallons: 2" banjo inlet w/ plug / 2" banjo outlet w/ ball valve.



Bladder Dimensions (filled size):

• 25 gallons: 24" W x 36" L x 8" H
• 50 gallons: 36" W x 52" L x 9" H
• 75 gallons: 42" W x 54" L x 9" H
• 100 gallons: 48" W x 66" L x 9" H
• 150 gallons: 60" W x 60" L x 12" H
• 250 gallons: 60" W x 84" L x 14" H
• 500 gallons: 84" W x 108" L x 16" H
• 750 gallons: 99" W x 114" L x 16" H
• 1,000 gallons: 9' W x 11' L x 16" H
• 1,250 gallons: 9'6" W x 12'4" L x 18" H
• 1,500 gallons: 10' W 14' L x 18" H
• 2,000 gallons: 10'6" W x 14'6" L x 22" H
• 2,500 gallons: 12' W x 14'6" L x 24" H
• 3,000 gallons: 13'6" W x 15' L x 24" H
• 4,000 gallons: 14' W x 18' L x 27" H
• 5,000 gallons: 15'6" W x 19'6" L x 27" H
• 6,000 gallons: 16'6" W x 20' L x 30" H
• 10,000 gallons: 20' W x 24' L x 36" H
• 20,000 gallons: 22' W x 31' L x 48" H

Additional Options:
