Husky Eagle Washdown Containment Mat

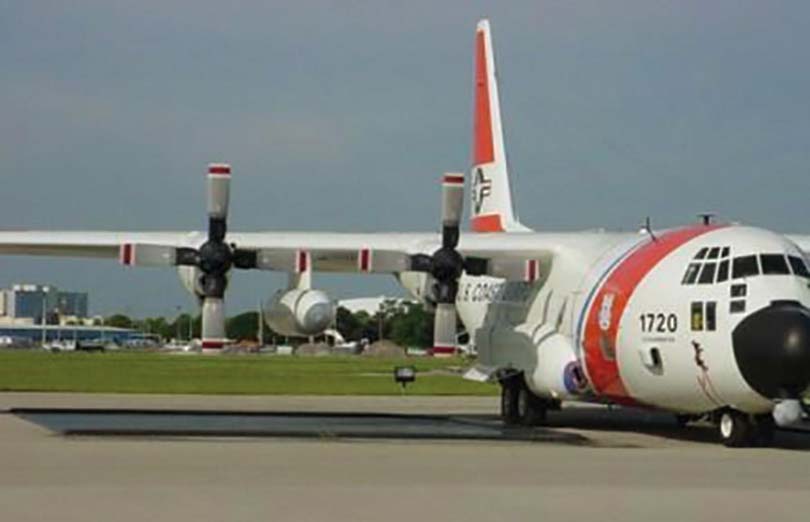

Husky Portable Containment Eagle drive over Washdown Containment Mat is designed for use as a portable wash bay for cars, vehicles and equipment.  The light weight, portable design is ideal for situations when space is limited.

The highly durable Eagle containment berms allow for easy drive on and drive off access with low maintenance and easy setup.

Choose from the following options:

• Eagle Type I: Foam Wall design
• Eagle Type II: Continuous Air design

Eagle Berm Type I: Foam Wall

Foam wall berm designed with cutouts on the bottom side of the berm in the corners and every 5 feet around the perimeter to accept the foam inserts. Foam inserts are 3" diameter by 5 feet around the perimeter to accept the foam inserts.

Foam inserts are 3" diameter by 5 feet long and are manually slid into the cutout pockets. Once inserted, your berm is ready for use.

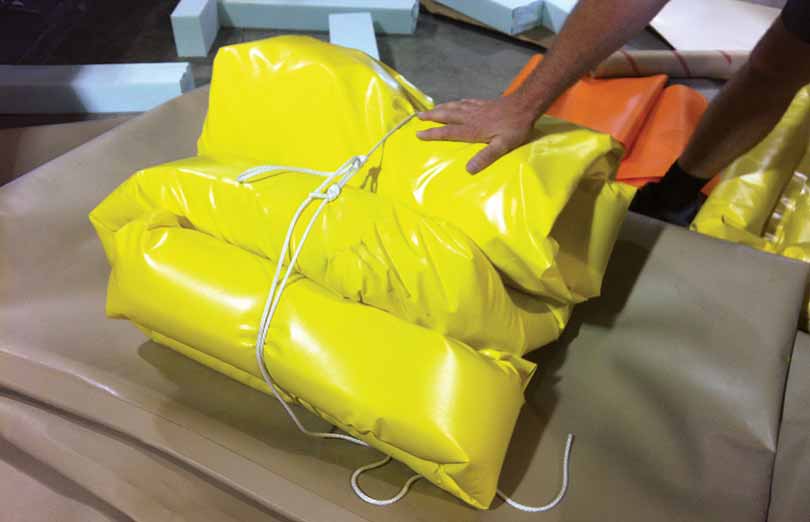

There are separate storage bags for the berm and foam inserts.

Features:

• Drive in / Drive out without risking damage to foam walls.
• Foam walls can be driven over repeatedly with no damage.
• Straps in the corners & every 5' down sides & ends on bottom of berm.

• PVC liner available in 22 ounce, 30 ounce or 40 ounces.
• Standard wall height is 3 inches high.
• Includes storage bag.

Optional Accessories (available for Type 1 & Type II berms):

• Heavy duty liners - urethane, exlon, and super berm liner options.
• Tread Pads - provides additional strength to the berm floor in vehicle track areas.
• Ground covers - protects the berm from punctures and other ground hazards.
• Track belting - provides extreme protection to your berm floor from heavy duty vehicle tracks.

Available Sizes & Dimensions (Width x Length x Height):

• 280 Gallons: 10'W x 15'L x 3"H, 58 pound berm / 5 pound foam
• 373 Gallons: 10'W x 20'L x 3"H, 75 pound berm / 5 pound foam
• 467 Gallons: 10'W x 25'L x 3"H, 92 pound berm / 6 pound foam
• 672 Gallons: 12'W x 30'L x 3"H, 124 pound berm / 7 pound foam
• 896 Gallons: 12'W x 40'L x 3"H, 166 pound berm / 8 pound foam
• 1,121 Gallons: 12'W x 50'L x 3"H, 205 pound berm / 9 pound foam
• 1,569 Gallons: 12'W x 70'L x 3"H, 284 pound berm / 10 pound foam



Eagle Berm Type II: Continuous Air

Continuous air chamber design that allows the air to disperse throughout the chamber when driving in and out of the berm. This unique design along with a pressure relief valve, eliminates any blowouts on the berm.

Features:

• Drive in / Drive out design.
• Schrader valve, pressure relief valve, check valve.
• Straps in the corners and every 10' down the sides.
• Easy setup and storage with included storage bag.

• PVC liner available in 22 ounce, 30 ounce or 40 ounces.

• Standard wall height is 3 inches high.
• Includes storage bag.
• Quick fix field repair kit with every air wall berm.

Available Sizes & Dimensions (Width x Length x Height):

• 280 Gallons: 10'W x 15'L x 3"H, 58 pound berm
• 373 Gallons: 10'W x 20'L x 3"H, 75 pound berm
• 467 Gallons: 10'W x 25'L x 3"H, 92 pound berm
• 672 Gallons: 12'W x 30'L x 3"H, 124 pound berm
• 896 Gallons: 12'W x 40'L x 3"H, 166 pound berm
• 1,121 Gallons: 12'W x 50'L x 3"H, 205 pound berm
• 1,569 Gallons: 12"W x 70'L x 3"H, 284 pound berm

Browse other flexible spill containment options or all Husky Portable Containment berms.
