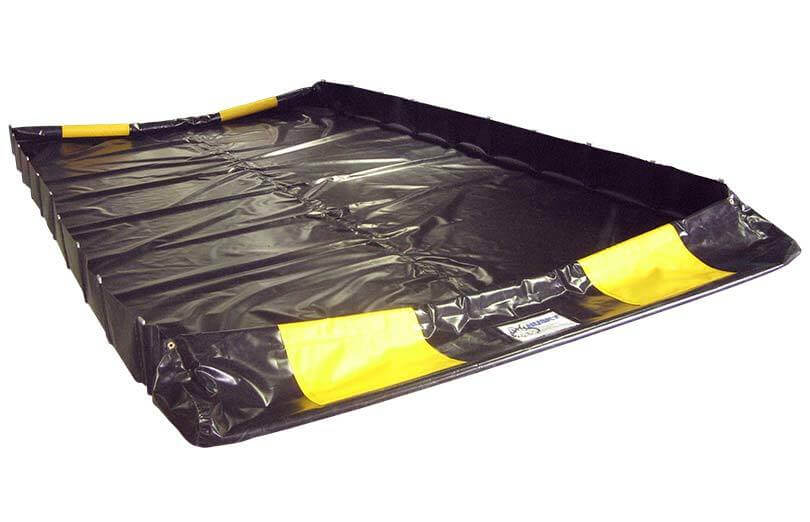

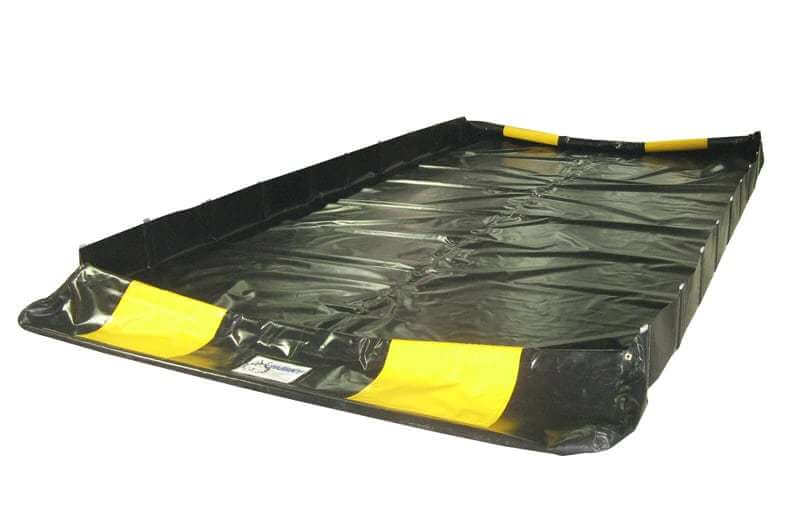

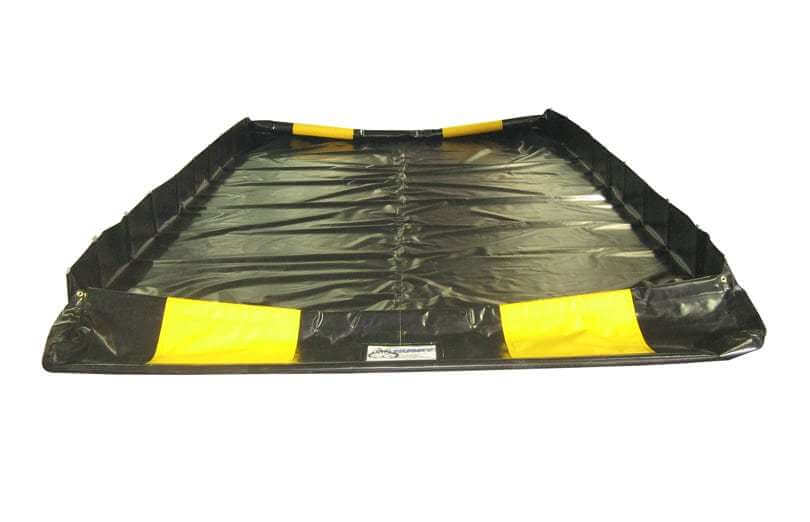

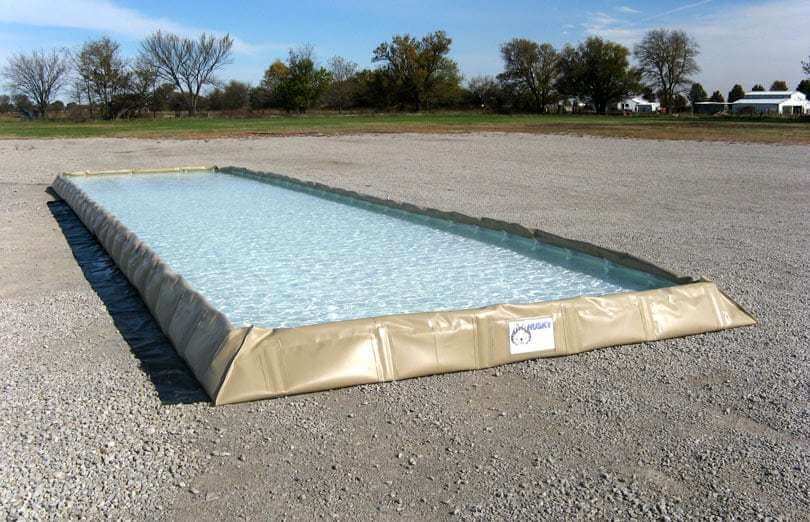

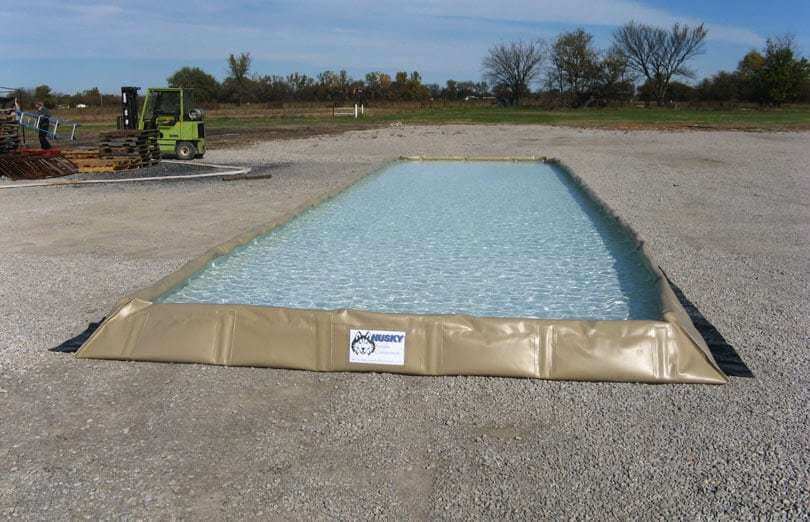

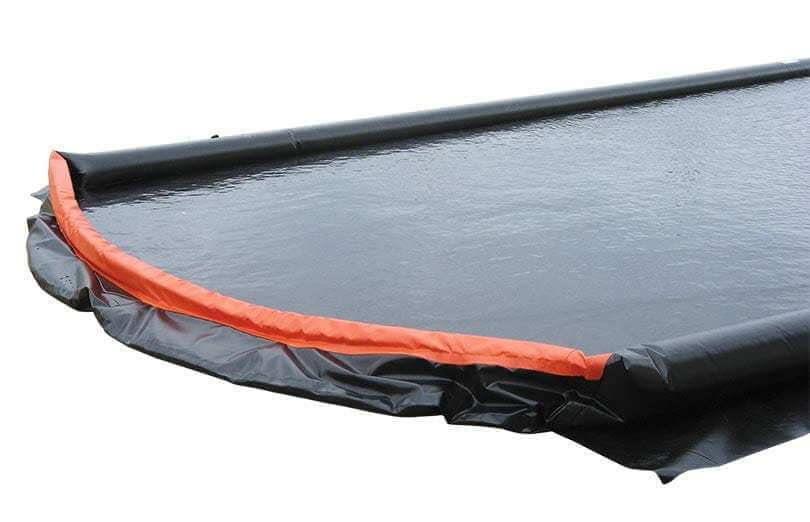

Husky Freedom Drive Over Containment Berm

Husky Portable Containment Freedom drive thru spill containment berm is designed for use by cars, vehicles and other heavy equipment. The drive over design provides convenient and portable drive over access for vehicles in the field.

The Freedom secondary containment berm is designed with self rising foam end walls. Vehicles drive onto and off of the berm through the end walls of the berm.

The Freedom berm offers three different side wall designs.

Choose from the following side wall design options:

• Freedom Type II: Air Chamber Side Walls.
• Freedom Type III: Self Rising Foam Side Walls.
• Freedom Type IV: Aluminum Angle Side Walls.

Freedom Berm Liner Options:

• Exlon liner - is an ethylene interpolymer alloy designed for UV resistance, heat resistance, abrasion, puncture resistance, and excellent cold cracking quality.
• XR-5 liner - is compatible with harsh liquids and includes low thermal expansion / contraction and superior UV / chemical resistance with tensile strength.

Optional Accessories (available for all Freedom berms):

• Tread Pads - provides additional strength to the berm floor in vehicle track areas.
• Ground covers - protects the berm from punctures and other ground hazards.
• Track belting - provides extreme protection to your berm floor from heavy duty vehicle tracks.

Freedom Berm Type II: Air Chamber Side Walls

One-piece designed berms with air chamber sidewalls and self-rising foam end walls. No assembly required.

Sidewall air chambers are equipped with a pressure relief valve to prevent over inflation. End walls can be driven over repeatedly with no damage.

Features:

• Drive in / Drive out without risking damage to air chambers.
• Air chamber sidewalls with pressure relief valves.
• Self supporting end walls with HR foam collar.

• One piece construction.
• No loose parts. No assembly. Easy setup, just unfold & go.
• XR-5 liner.
• Standard wall height is 12 inches high.


Type II Sizes & Dimensions (Width x Length x Height):

• 10' x 10' x 1' - 747 gallons / 68 pounds
• 12' x 12' x 1' - 1,076 gallons / 84 pounds
• 12' x 26' x 1' - 2,331 gallons / 149 pounds
• 12' x 36' x 1' - 3,227 gallons / 184 pounds
• 12' x 50' x 1' - 4,482 gallons / 242 pounds
• 14' x 54' x 1' - 5,647 gallons / 290 pounds
• 15' x 50' x 1' - 5,602 gallons / 290 pounds
• 15' x 66' x 1' - 7,395 gallons / 355 pounds



Freedom Berm Type III: Self Rising Foam Side Walls

The Freedom Berm Type III includes a self rising foam wall design on both the end walls and side walls of the secondary containment berm.

No inflation and no assembly required.

The sidewalls rise with the level of liquid entering the berm.

Set up time is as quick as you can unfold the berm.

Features:

• Drive in / Drive out design.
• Self supporting side and end walls, no inflation required.
• HR polyurethane foam filled floatation collar.
• Rigid support gives the wall greater stability and strength.

• One piece construction.
• No loose parts and no assembly. Just unfold the berm to set it up.
• XR-5 or Exlon liner material.

• Standard wall height is 12 inches high.
• 3 year manufacturer warranty.


Available Sizes & Dimensions (Width x Length x Height):

• 10' x 10' - 747 gallons / 68 pounds
• 12' x 12' - 1,076 gallons / 83 pounds
• 12' x 26' - 2,331 gallons / 143 pounds
• 12' x 36' - 3,227 gallons / 187 pounds
• 12' x 50' - 4,482 gallons / 248 pounds
• 14' x 54' - 5,647 gallons / 294 pounds
• 15' x 50' - 5,602 gallons / 294 pounds
• 15' x 66' - 7,395 gallons / 367 pounds

Freedom Berm Type IV: Aluminum Angle Side Walls

The Freedom Berm Type IV is designed with aluminum angle side walls and self-rising foam end walls.

Side walls have pockets every 24" or less to accept angle brackets. End walls can be driven over repeatedly with no damage. The design allows you to drive out of the berm without having to leave your vehicle to open the end walls.

The Type IV Freedom Berm offers a heavy duty design suited for tanker trucks and other heavy duty vehicles.

Features:

• 6061-T6 aluminum angle brackets bend 90 degrees.
• Side wall pockets 2' apart that accept the angle brackets.
• Self supporting foam flotation collar end walls.
• Self rising end walls, no inflation required.
• Easy setup, quick assembly.

• Separate storage bags for berm & angle brackets.

• XR-5 or Exlon liner material.

• Standard wall height is 12 inches high.
• 3 year manufacturer warranty.


Available Sizes & Dimensions (Width x Length x Height):

• 10' x 10' - 747 gallons / 43 pound berm / 18 pound bracket
• 12' x 12' - 1,076 gallons / 56 pound berm / 22 pound bracket
• 12' x 26' - 2,331 gallons / 100 pound berm / 46 pound bracket
• 12' x 36' - 3,227 gallons / 131 pound berm / 64 pound bracket
• 12' x 50' - 4,482 gallons / 175 pound berm / 89 pound bracket
• 14' x 54' - 5,647 gallons / 214 pound berm / 96 pound bracket
• 15' x 50' - 5,602 gallons / 214 pound berm / 96 pound bracket
• 15' x 66' - 7,395 gallons / 272 pound berm / 117 pound bracket

Additional Options:

• Check out additional drive over spill containment berm options or all Husky Containment options.
