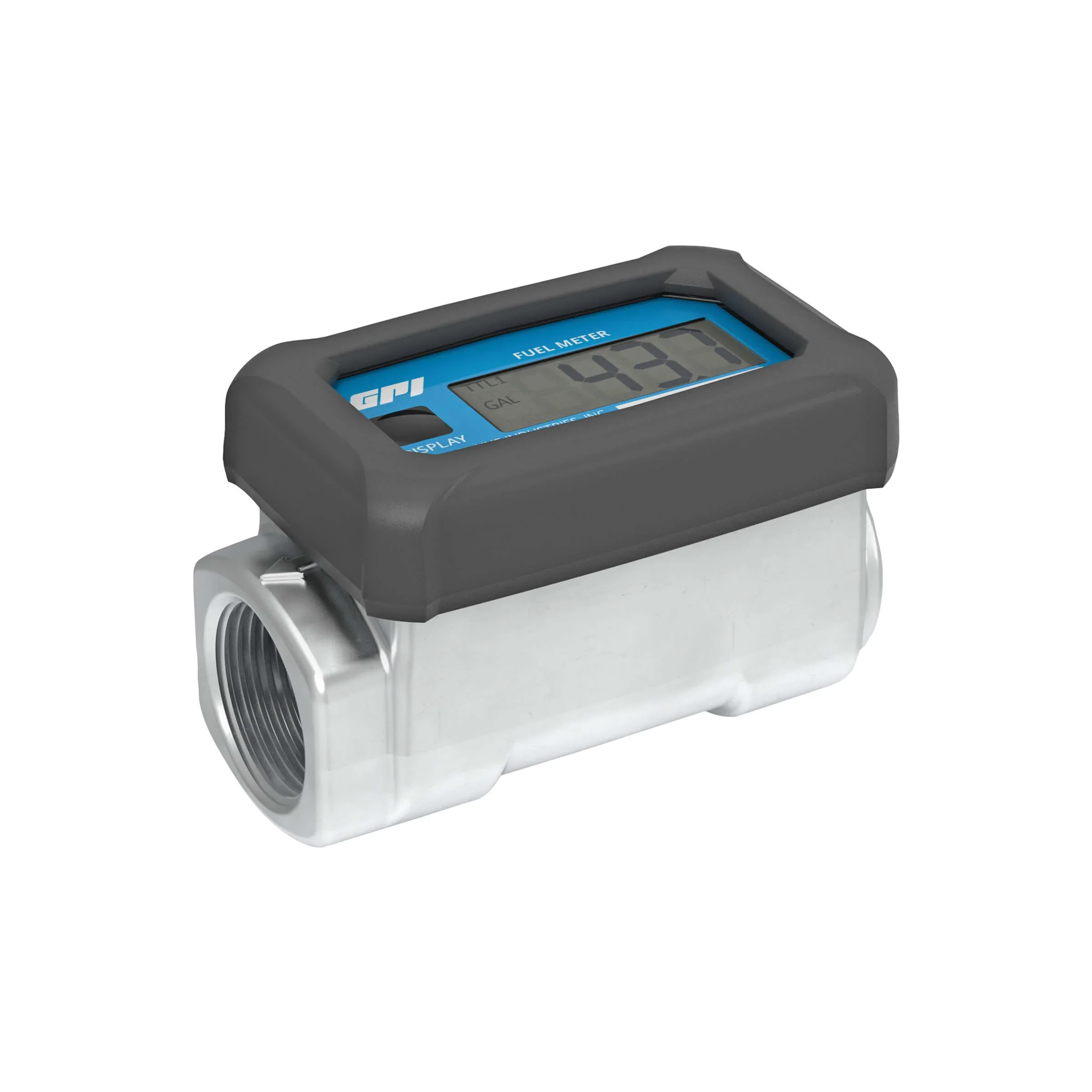

Newberry GPI Digital Fuel Meter
The Newberry GPI 01A digital fuel meter series is designed for measuring flow rates from 3 to 30 GPM (10 to 100 L/min) and is factory calibrated in gallons or liters for use with diesel, gasoline, ethanol blends, or kerosene.
This digital fuel meter mounts easily to the end of a hose and is ideal for use with free-flow gravity systems or combined with an electric transfer pump as part of a fuel transfer system.
Specifications:
- Type: Turbine
- Working Pressure: 300 PSI
- Inlet/Outlet: 1 in. FNPT
- Housing: Corrosion-Resistant Diecast Aluminum
- Warranty: 2-yr meter warranty
BENEFITS
- Compact and lightweight at just 12 oz.

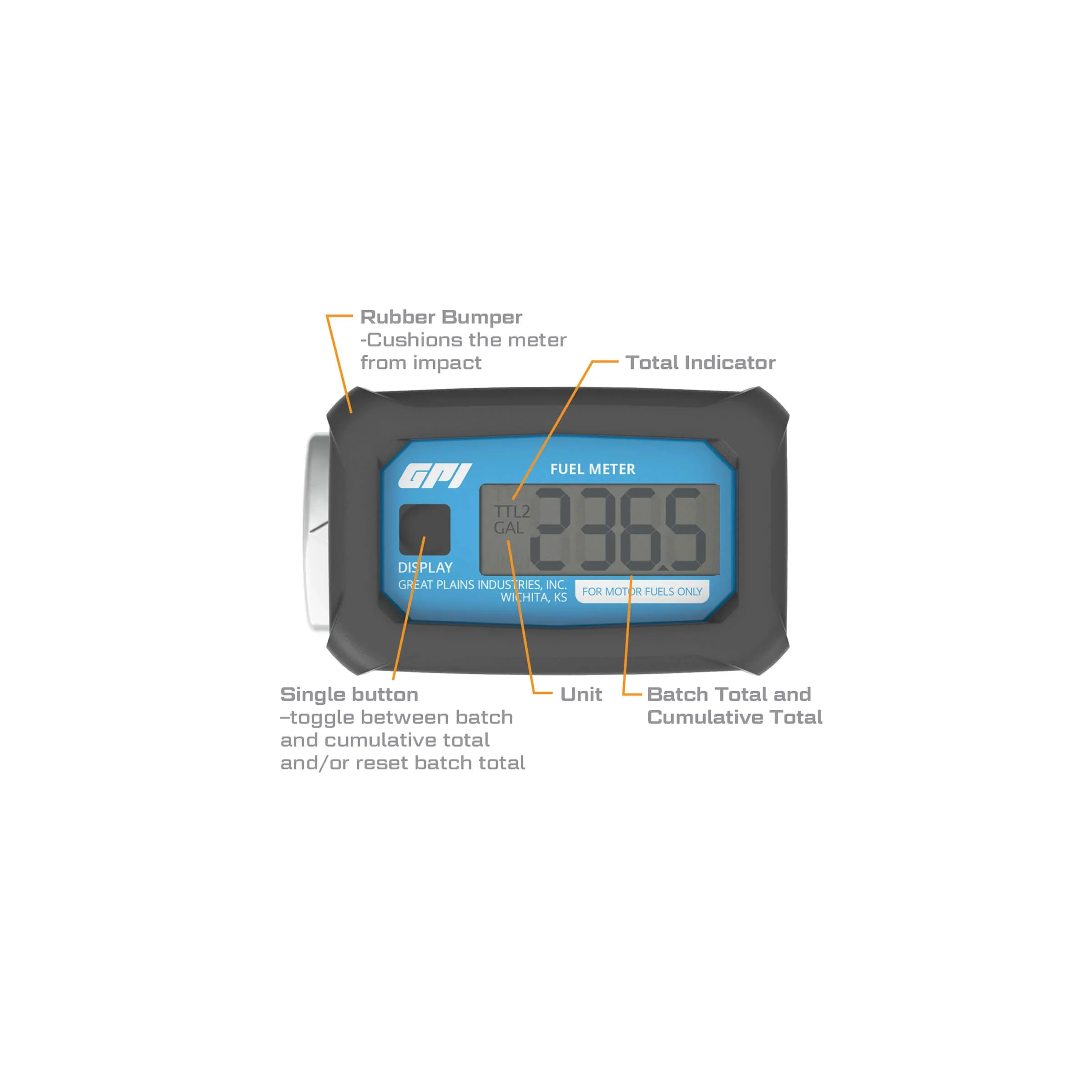

- Mount directly to the nozzle for easy reading
- Includes 3/4 in. reducer fitting and 3/4 x 1 1/2 in. pipe fitting
- Methanol model (01A31GMME) available
- FM Approved to U.S. and Canadian Standards as intrinsically Safe fr Class 1, Division 1 Groups D.
- Not for use with water or chemicals.
