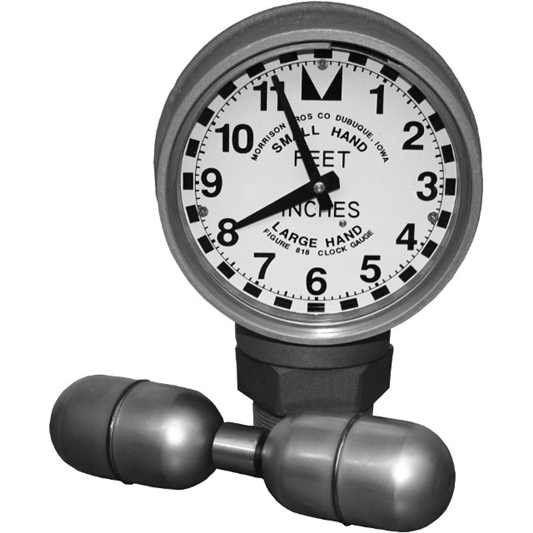

Newberry Morrison Clock Gauge

The Morrison "clock gauge" displays the liquid level reading of product stored in an aboveground tank. Measures the liquid level up to a maximum of 12 feet in height.

Notable Features:

• Gauge face displays level reading in feet and inches. The hour hand (short hand) displays the number of feet and the minute hand (long hand) accurately displays the number of inches.
• Easy to install and calibrate in a 2in tank top opening.
• Accurate to 1/8 of an inch.
• Easily read from 30 feet away.
• Vapor tight construction.
• Vapor tight fog free design.
• Gauge rotates 360 degree making it easy for the face to be read from the desired orientation.
• Visual indicators for high level (red) and low level (green) are applied to the dial face cover.
• Standard float fits through a 2in schedule 40 pipe nipple.
• Compatible with 2in Morrison model drop tube.
• Optional drop tube float when used in conjunction with a drop tube, reduces float entanglement when turbulent conditions are present.
