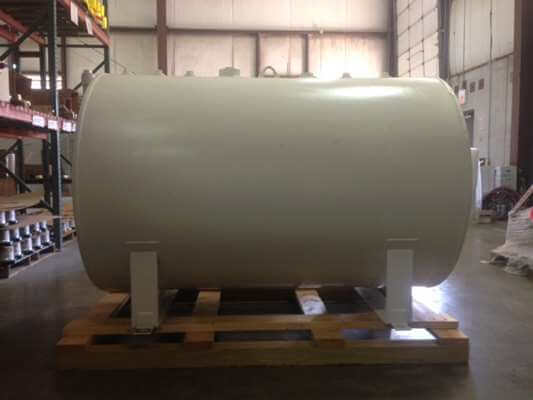

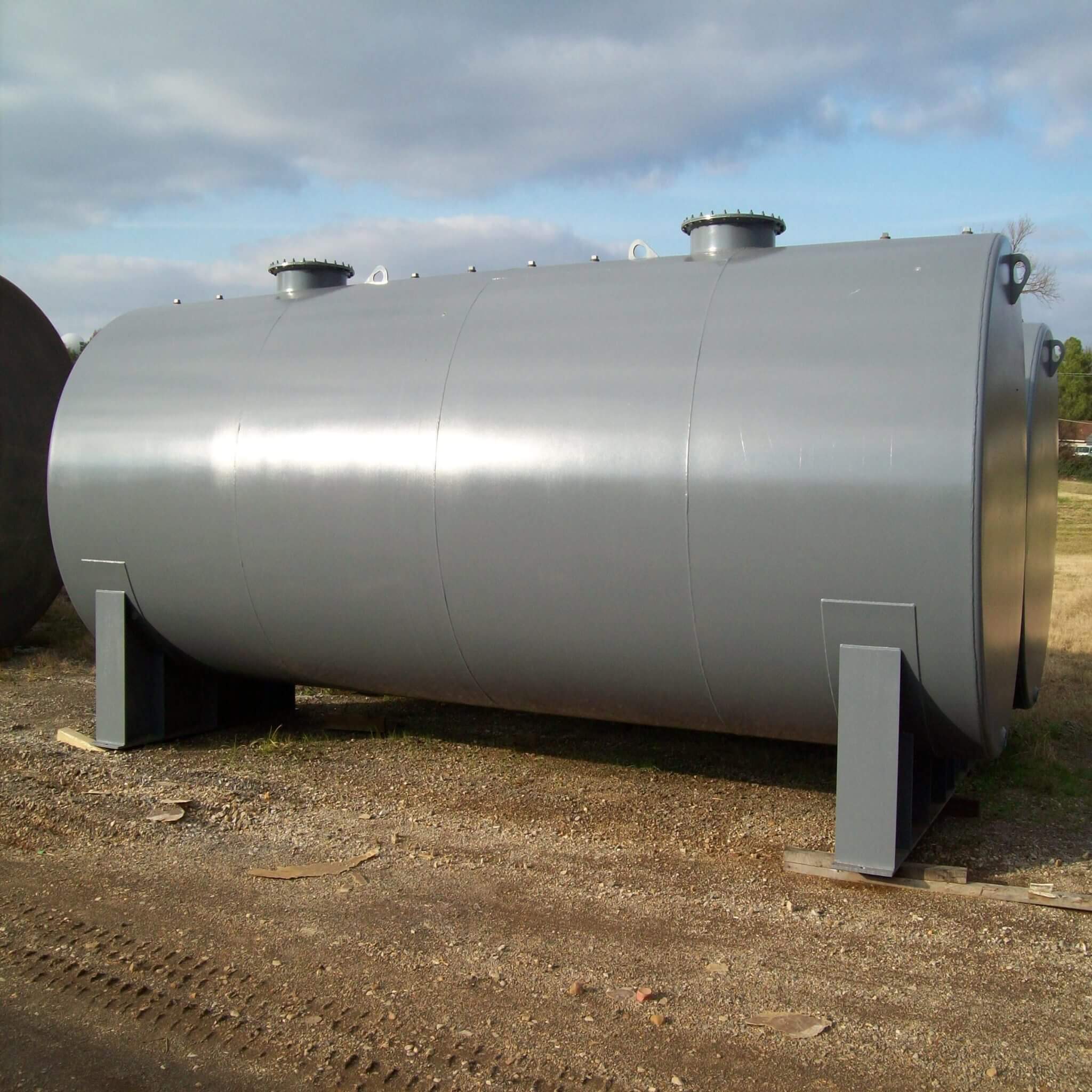

Newberry UL 142 Single Wall Bracket Tank

Newberry cylindrical single wall bracket tanks offer a durable 12 gauge steel design and are available in sizes that range from 150 gallons to 1,000 gallons.

Single wall aboveground bracket tanks meet Underwriters' Laboratories UL-142 specification for above ground storage of Flammable and Combustible Liquids.

Single wall bracket tanks are typically used for fuel storage or lubricant oil storage.

Key Features include:

• Meets UL-142 specification for above ground storage of flammable and combustible liquids.
• Commonly used for fuel storage and lubricant oil storage.

• Containment dikes available for secondary containment requirements.
• Comes standard with one coat of gray primer.
• Optional colors and coatings are available.

Single Wall Bracket Tank Sizes & Dimensions:

• 150 Gallon:  30W x 48L x 30H (inches); 12 gauge; 300 pounds
• 300 Gallon:  38W x 60L x 38H (inches); 12 gauge; 450 pounds
• 550 Gallon:  48W x 72L x 48H (inches; 12 gauge; 750 pounds
• 1,000 Gallon: 45.5W x 144L x 45.5H (inches); 10 gauge; 1,450 pounds
