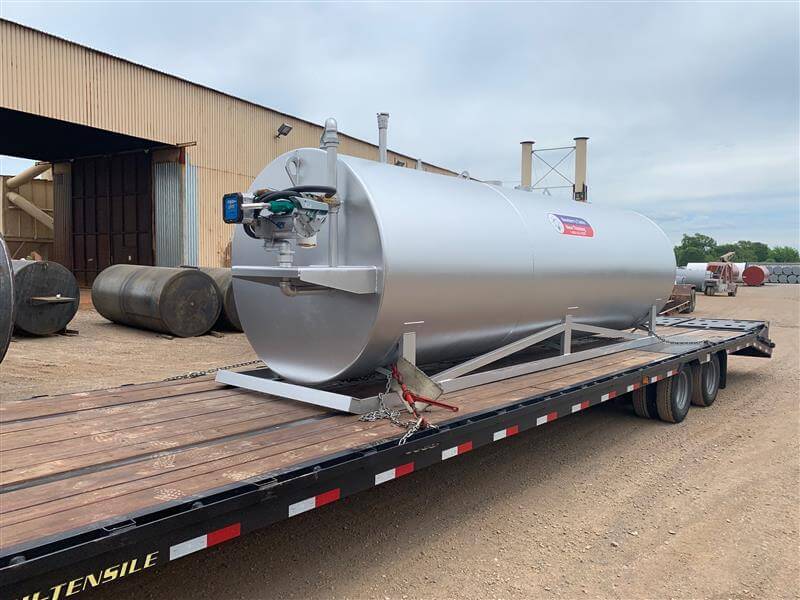

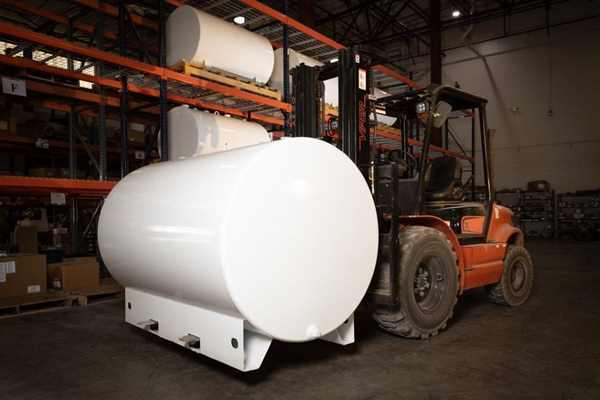

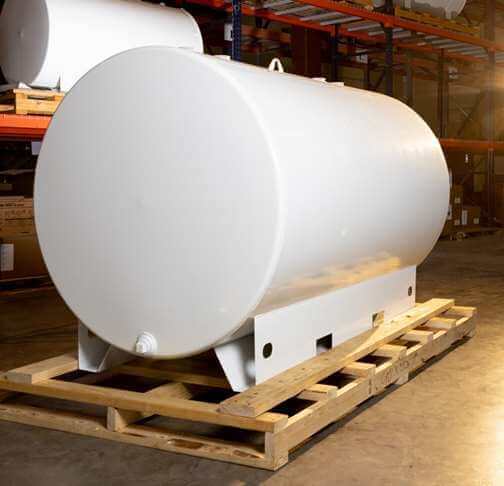

Newberry UL 142 Single Wall Skid Tank (Large)

Newberry large cylindrical UL-142 single wall skid tanks offer a durable steel design and are available in sizes that range from 2,000 gallons to 12,000 gallons.  High quality, UL 142 listed tanks are typically used for fuel storage or lubricant oil storage.

• View All Fuel Storage Tanks

Key Features include:

• Meets UL-142 specification for above ground storage of flammable and combustible liquids.
• Double wall construction provides secondary containment.
• Comes standard with one coat of gray primer.
• Optional colors and coatings are available.

Single Wall Skid Tank Sizes & Dimensions:

• 2,000 Gallon:  64 inches wide x 12 feet long: 7 gauge steel
• 3,000 Gallon:  64 inches wide x 18 feet long: 7 gauge steel
• 4,000 Gallon:  64 inches wide x 24 feet long: 7 gauge steel
• 6,000 Gallon:  96 inches wide x 16 feet long: 7 gauge steel
• 10,000 Gallon: 96 inches wide x 27 feet long: 7 gauge steel
• 12,000 Gallon: 96 inches wide x 32 feet long: 7 gauge steel

Product Specification Sheet

• 2,000 gallon Skid Tank Single Wall
• 3,000 gallon Skid Tank Single Wall
• 4,000 gallon Skid Tank Single Wall
• 6,000 gallon Skid Tank Single Wall
• 10,000 gallon Skid Tank Single Wall
• 12,000 gallon Skid Tank Single Wall
