Transfer Flow Split Fuel Refueling Transfer Tank 0800113244

The Transfer Flow Split Fuel refueling transfer tank with transfer pump offers 100 gallons of total capacity split into two 50 gallon compartments. The refueling system comes with a 12 volt GPI fuel pump or an optional methanol pump.

With two 50-gallon tanks in the back of your truck, this unique tank system provides the most versatility while holding two different types of fuel. The 50/50 split refueling tank system is Department of Transportation (DOT) legal to carry and transfer gasoline, diesel, methanol/ethanol, and kerosene.

The easy-to-use hose-purge feature allows you to pull any fuel left in the hose back into the refueling tanks to eliminate messes in the truck bed and stretch your extra fuel capacity even further.

The 50/50 split refueling tank is made from 12-gauge ReliaSteel, high-yield U.S. aluminized steel, for superior durability and strength; and powder coated black for durable satin finish.

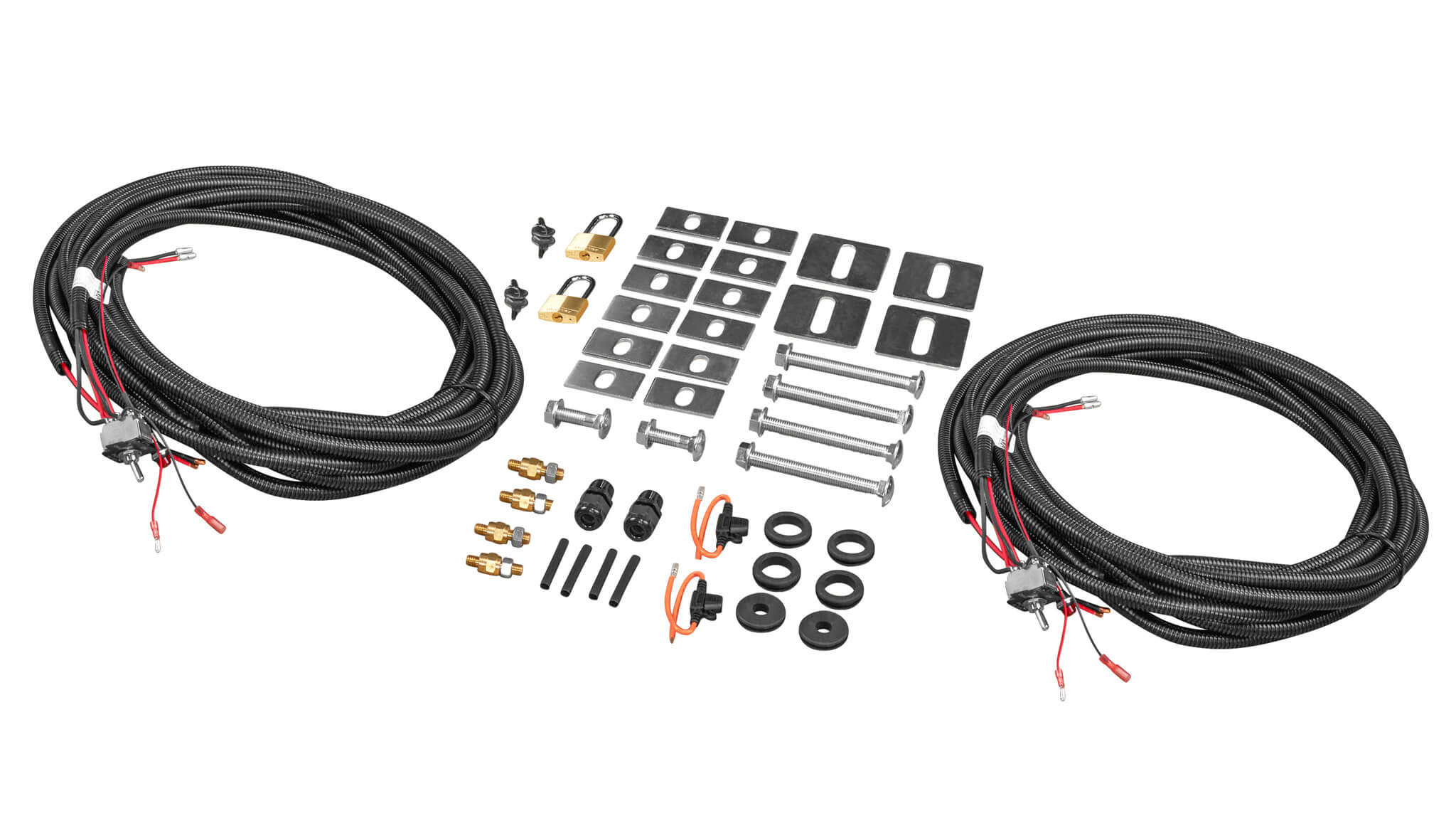

This tank system comes with two 50-gallon fuel tanks, two 12-volt refueling pumps, two 12-foot hoses, two nozzles, two wire harnesses with dash-mounted power switches, mounting hardware, and rollover valves.

NOTE: Product dimensions include 3" in width for the mounting brackets and 3" in height for the filler neck.

NOTE: Accuracy of optional Rochester fuel gauge may be less depending upon tank shape and if tank is on a level surface. Accuracy may be less near full and empty.

Sizes:

• 100 Gallon - 47.38 inches long x 31 inches wide x 24.19 inches high.

Fits:

• 100 Gallon - All full size trucks.

Transfer Pump:

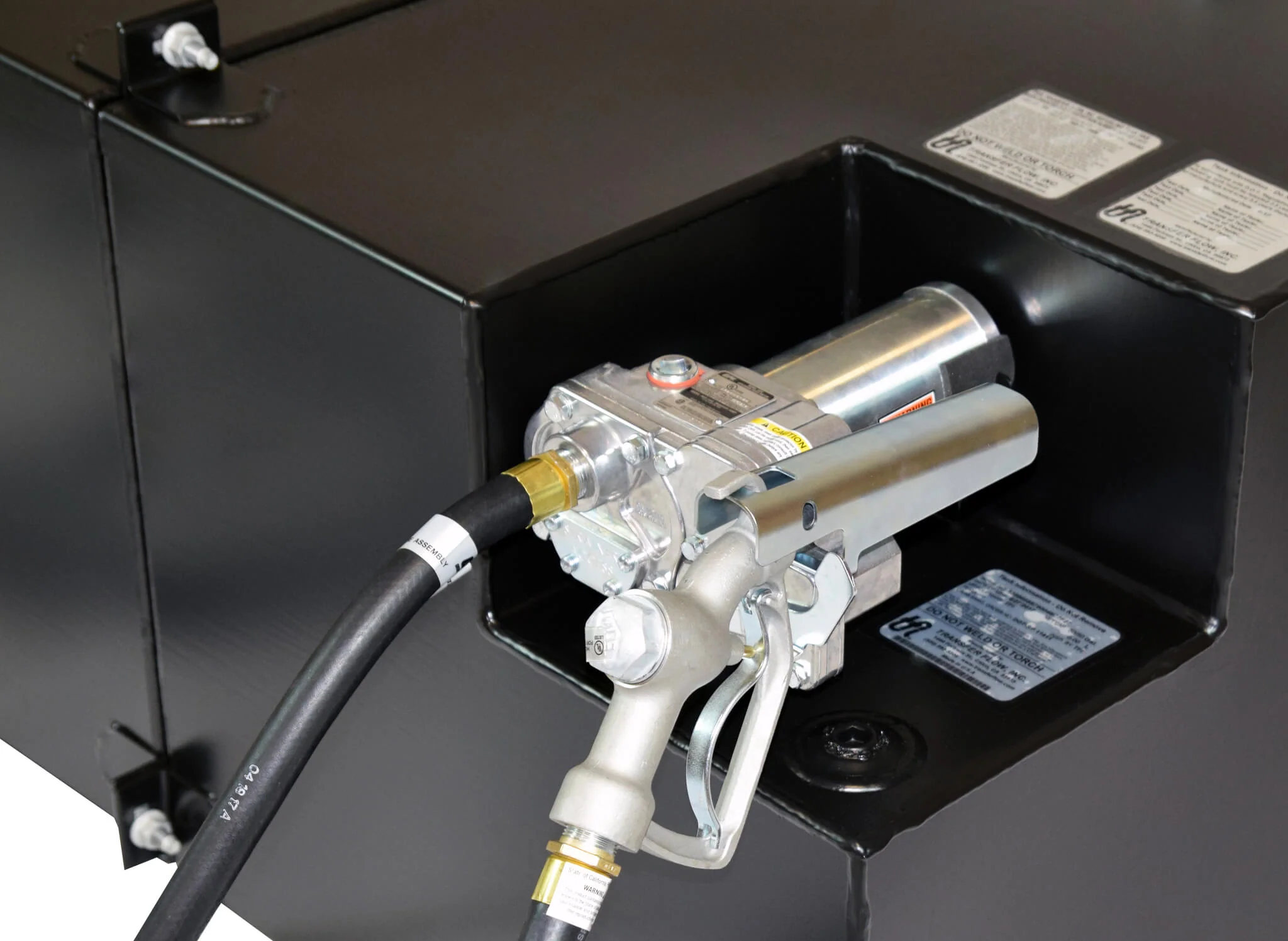

• 12V GPI Pump (comes standard).
• Methanol Pump (optional upgrade).

FEATURES

• Recommended for drivers who own ATVs, boats, generators, landscape or farming equipment, or want the option to fuel their truck or additional vehicles.
• Comes with 12-volt GPI fuel pump, 12 ft. hose, nozzle, wiring harness with cab-mounted power switch, and mounting hardware.
• DOT legal for gasoline, diesel, methanol/ethanol, and kerosene.
• Holds two types of fuel.
• Built from 12-gauge ReliaSteel, high-yield U.S. aluminized steel, for superior durability and strength.
• Powder coated black for durable satin finish.
• Easy-to-use hose-purge feature eliminates messes.
• Pumps up to 15 gallons per minute.
• Baffled to prevent fuel sloshing.
• 6 year, unlimited mile warranty.
• Made in the USA.
