Ultra Containment Sump

The Ultra Containment Sump provides containment for fuel tanks.  The containment sumps are available in a rigid or flexible design and are available with or without a drain.

The containment sump provides containment for fuel tanks ranging from 300 gallons to 1,000 gallons.

Containment Sump Spill Capacity Sizes:

• Ultra 275 Model: 360 gallons - Fits up to 327 gallon fuel tanks
• Ultra 550 Model: 605 gallons - Fits up to 550 gallon fuel tanks
• Ultra 1000 Model: 1,100 gallons - Fits up to 1,000 gallon fuel tanks

*fuel tank fit sizes assume a 110% spill capacity requirement.

Choose from the following containment sump options:

• Rigid - Designed for stationary use.

• Flexible - Designed for portability and easy storage.


Containment Sump Drains:

• No Drain - The containment sump walls do not have a built-in drain.
• 3/4" Drain - Includes a built-in 3/4" drain

Sump Material:

• Rotationally molded Linear Low Density Polyethylene

Optional Ultra Self-Bailer: (requires a 3/4" drain)

The Ultra Self Bailer will connect to a 3/4" drain on the containment sump and passively filters hydrocarbons from stormwater.

Rainwater drains through the bulkhead fitting and any residual oil, gas or hydrocarbons are removed by the filter media inside of the self-bailer, allowing only clean water to exit.

The Self-Bailer is available in 3 sizes:

• Standard - 14 oz capacity / 4.8 gal flow rate
• Large - 27 oz capacity / 6.6 gal flow rate
• Extra Large - 100 oz capacity / 12.7 gal flow rate

Optional Containment Sump Cover: (360 gallon size only)

The sump cover protects the containment sump from rainwater and other outdoor debris.

Compliance Standards:

• Meets EPA Container Storage Regulation 40 CFR 264.175
• Meets SPCC - Spill Prevention, Control & Countermeasure Act

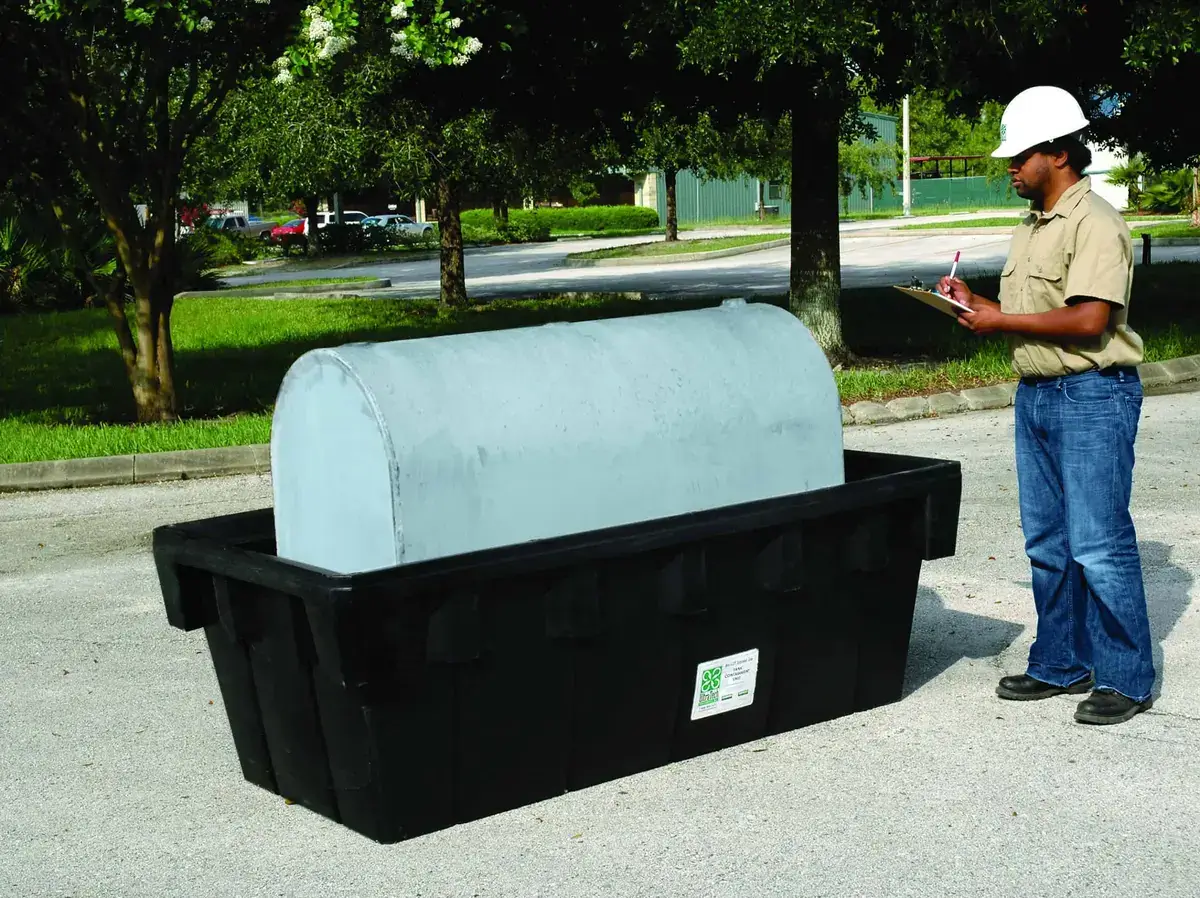

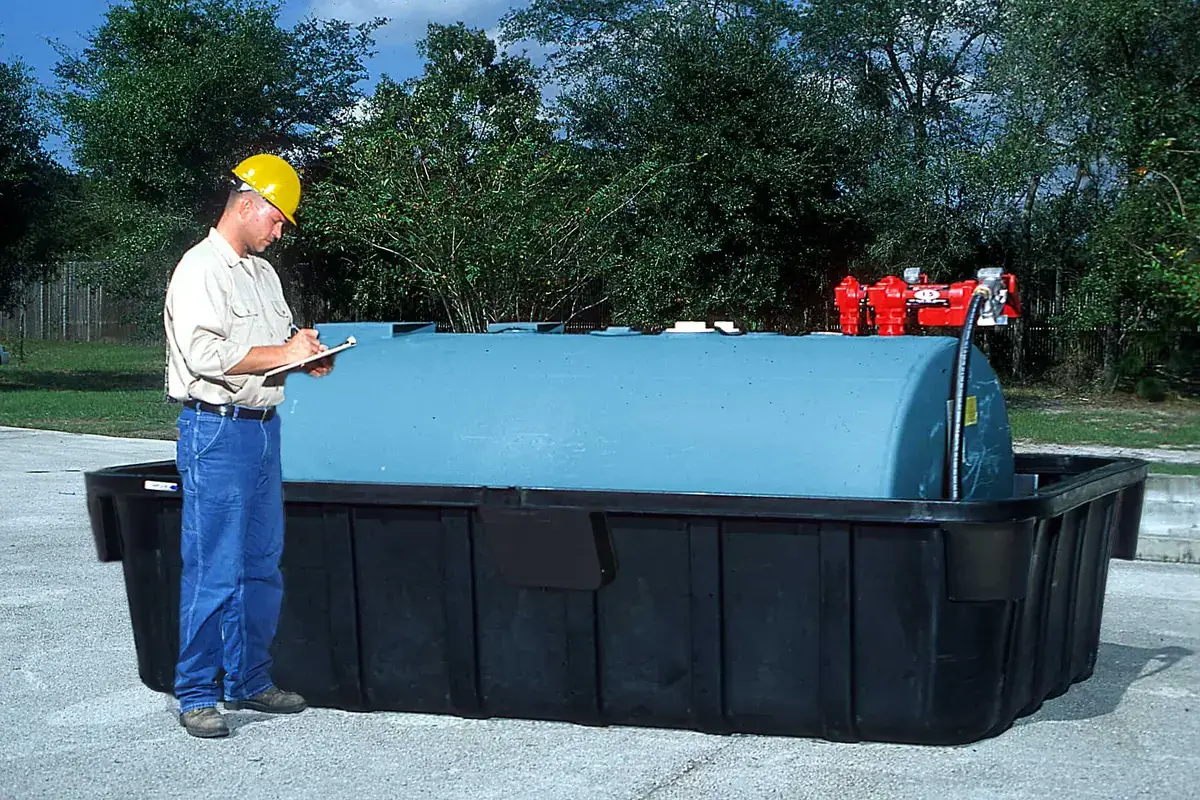

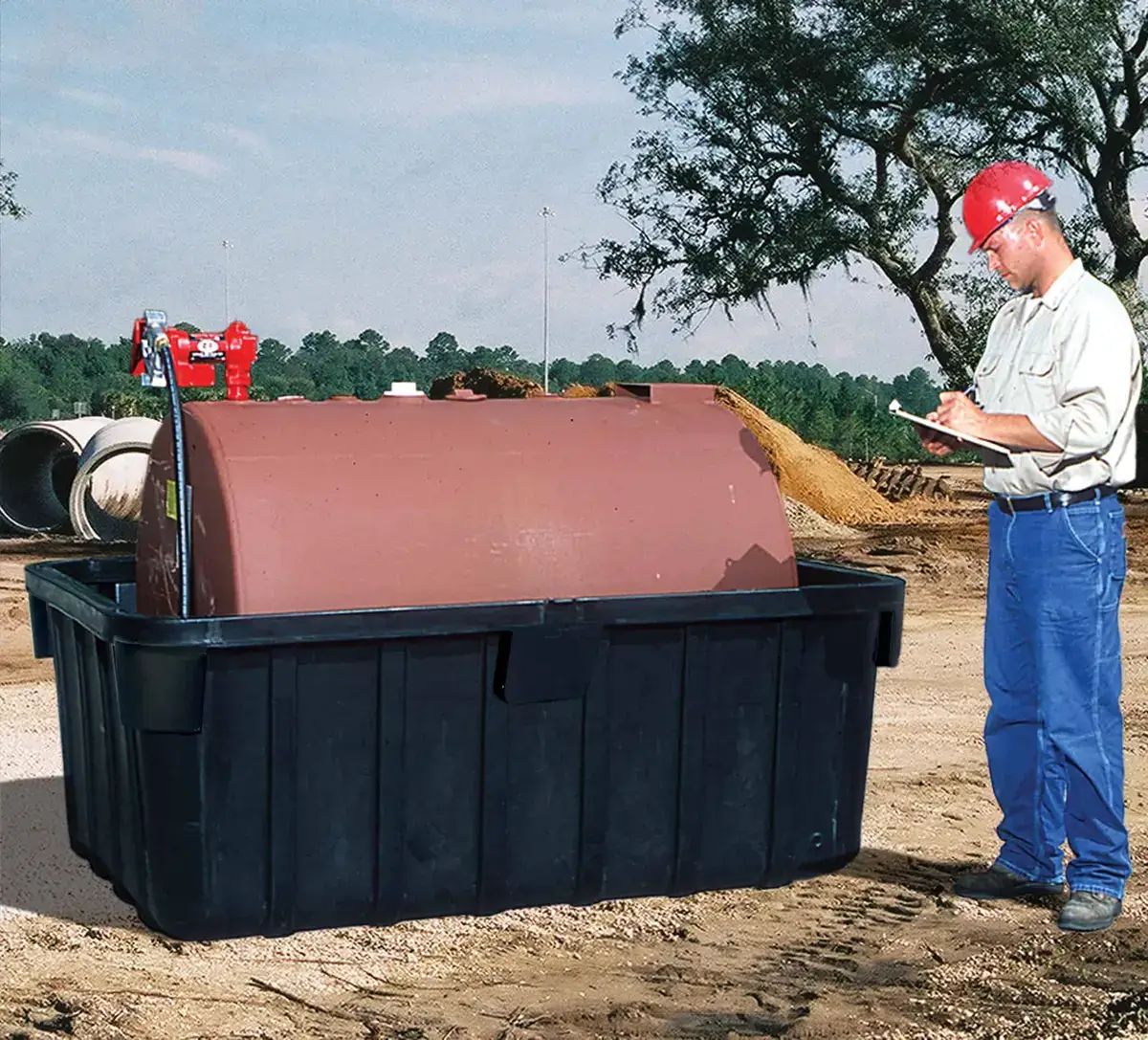

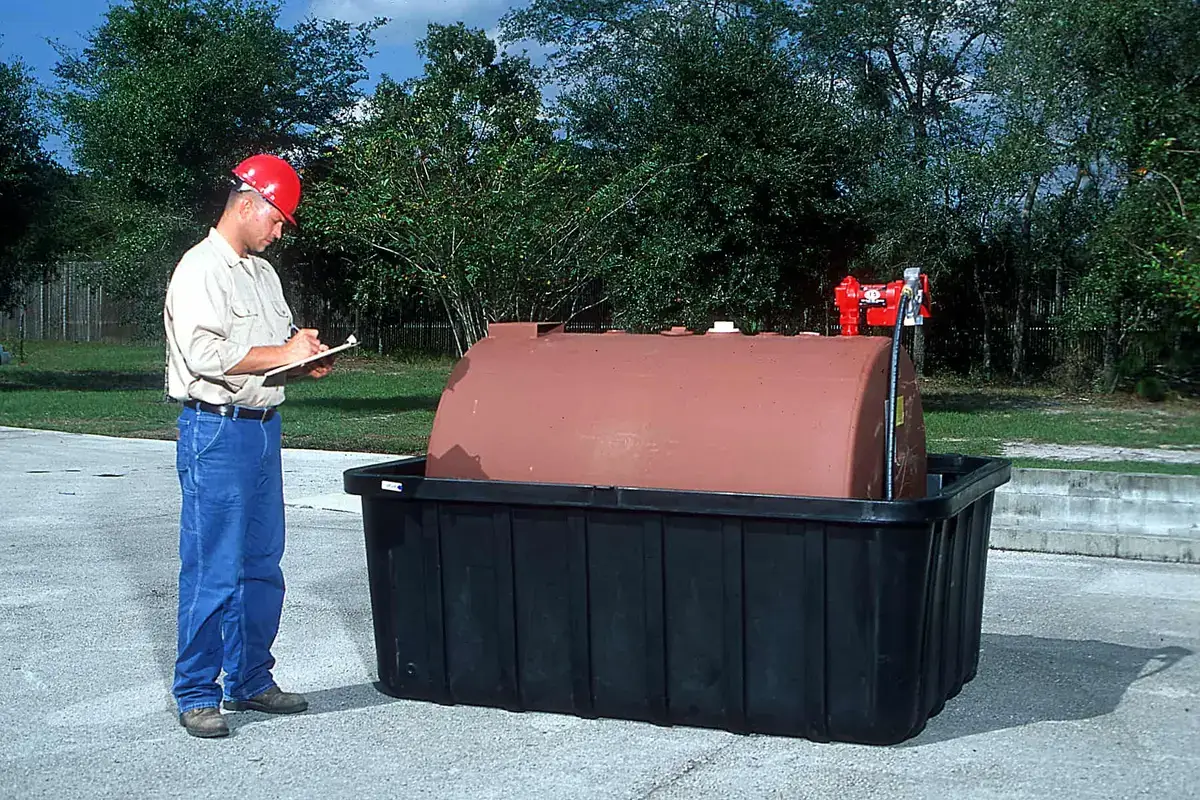

Rigid Model Features:

• Provides fuel tank containment while storing fuels, oils and other liquids.
• Rugged poly design that will not rust or corrode.
• Available with or without a 3/4" drain.

• 5 year Manufacturer Warranty.

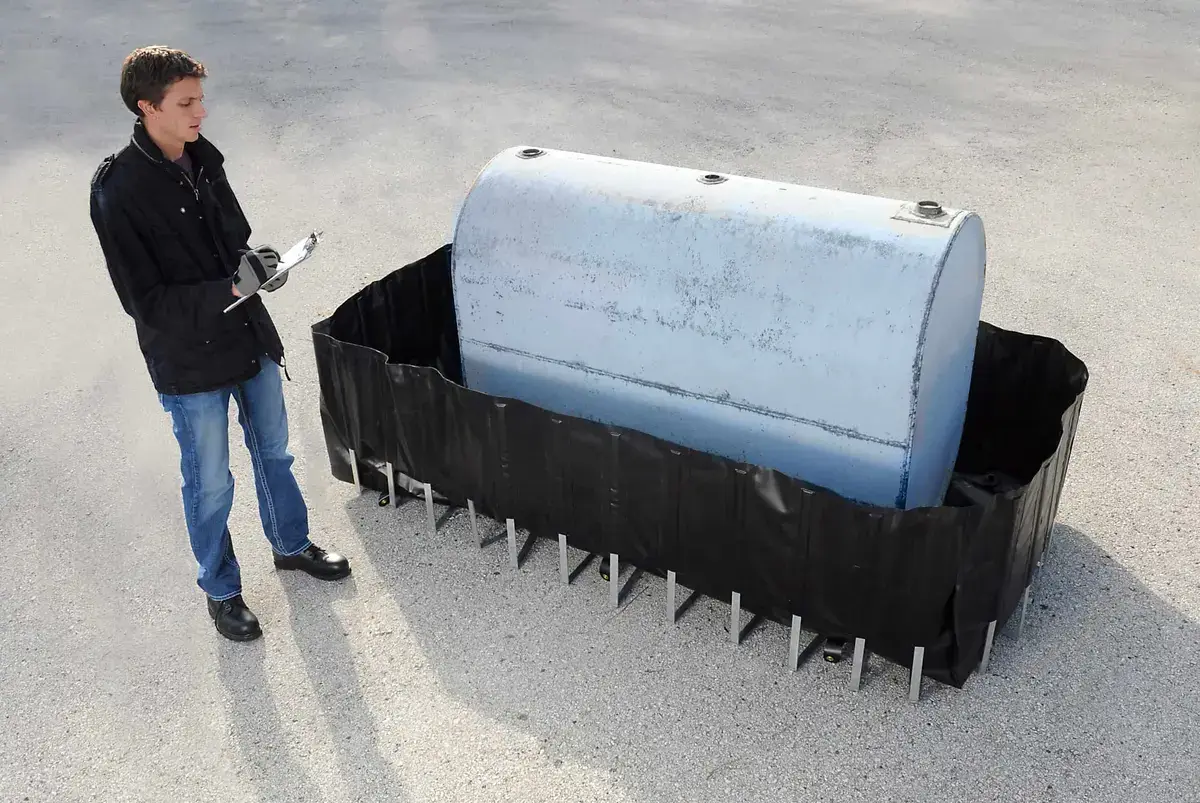

Flexible Model Features:

• Portable fuel tank containment.

• Aluminum L bracket design.

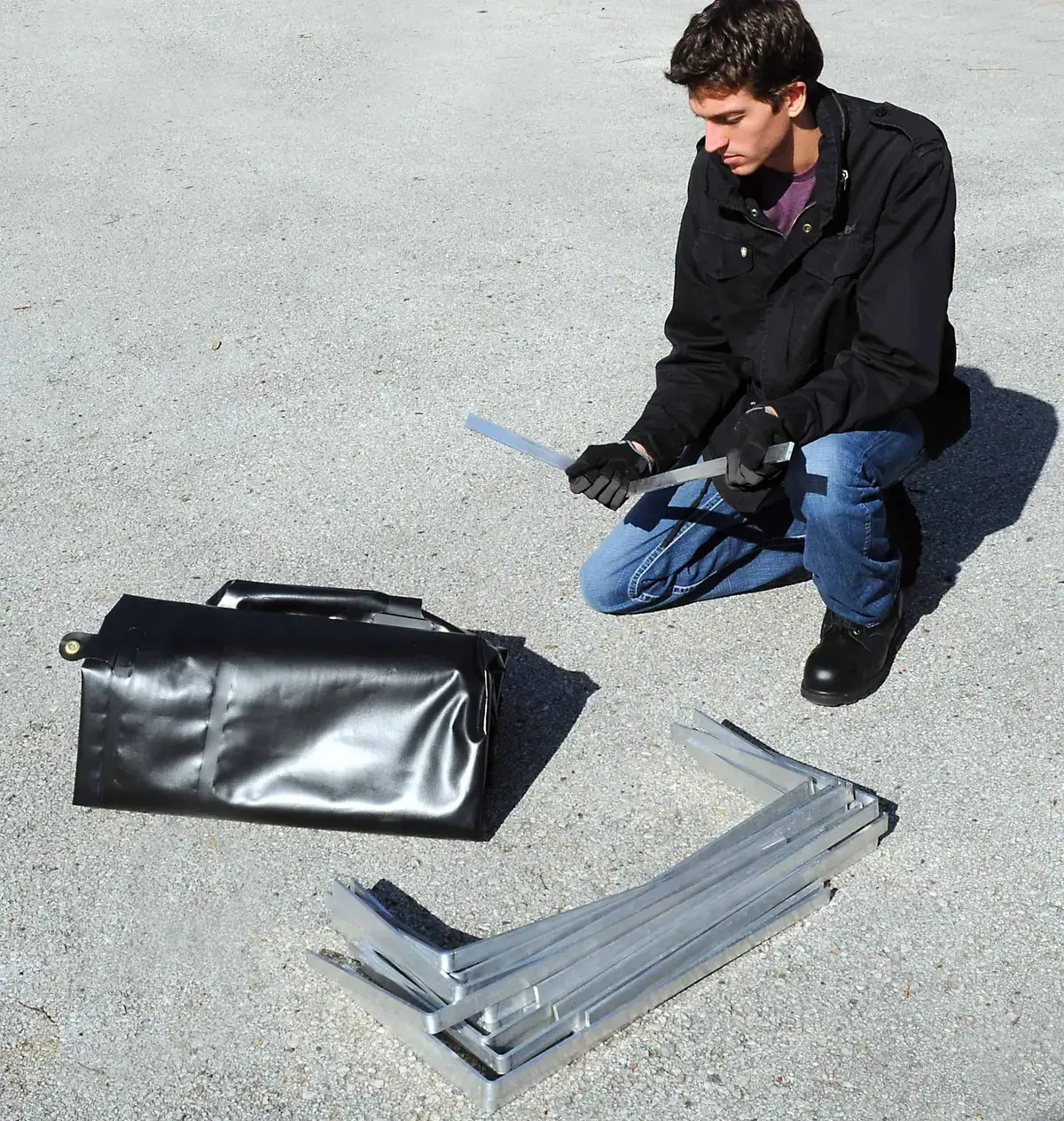

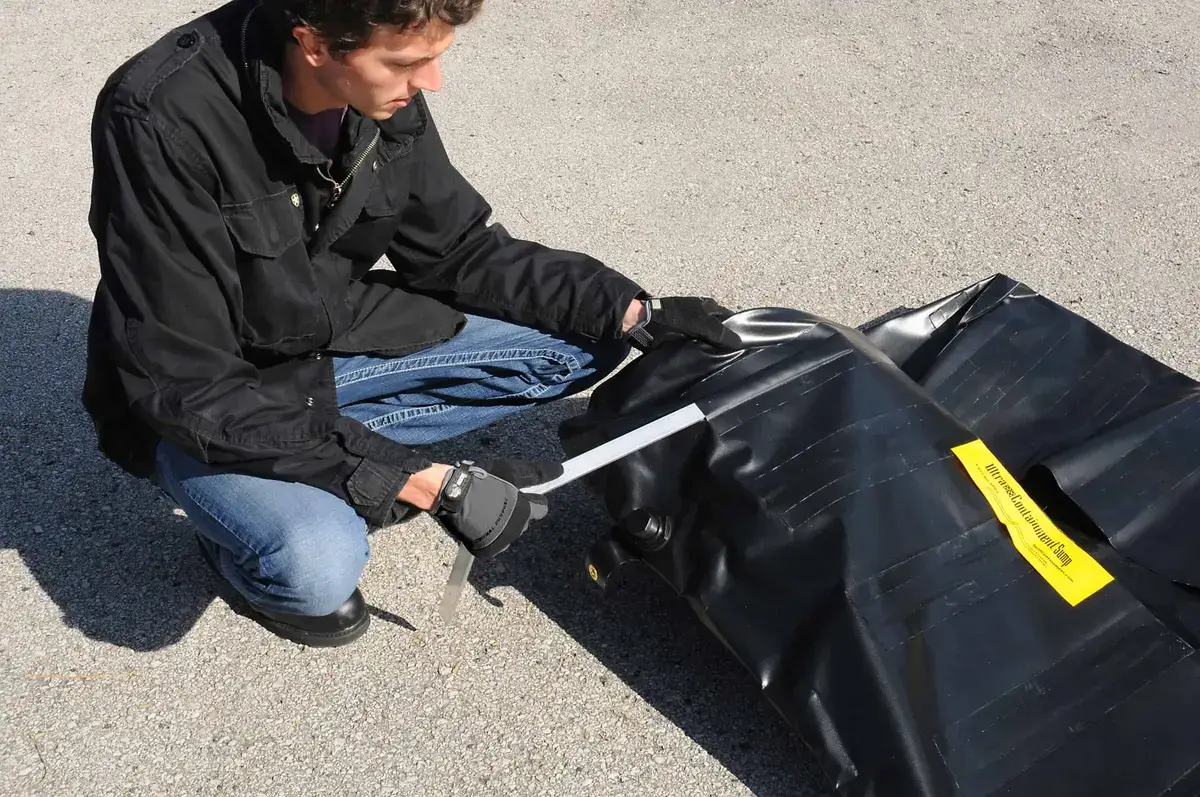

• Brackets can be removed and the liner folded for easy storage.


Spec Sheets:

• Rigid Model 360 gallon
• Rigid Model 605 gallon

• Rigid Model 1,100 gallon
• Flexible Model

Available Sizes & Dimensions:

Rigid Containment Sumps:

• 360 gallon capacity: 84.5"L x 43.8"W x 29"H / 90 pounds
• 605 gallon capacity: 89"L x 60.5"W x 33.25"H / 108 pounds
• 1,100 Gallon capacity: 149"L x 64"W x 33"H / 244 pounds

Flexible Containment Sumps:

• 360 gallon capacity: 102"L x 48"W x 24"H / 45 pounds
• 605 gallon capacity: 102"L x 72"W x 24"H / 65 pounds
• 1,100 Gallon capacity: 162"L x 78"W x 24"H / 80 pounds

Other Options:

• Browse other diesel tank containment options or all Ultra Spill Containment options.
