Ultra Drive Through Spill Containment Berm

The Ultra Drive Through Spill Containment Berms are designed for frequent vehicle traffic driving onto and off of the berm.

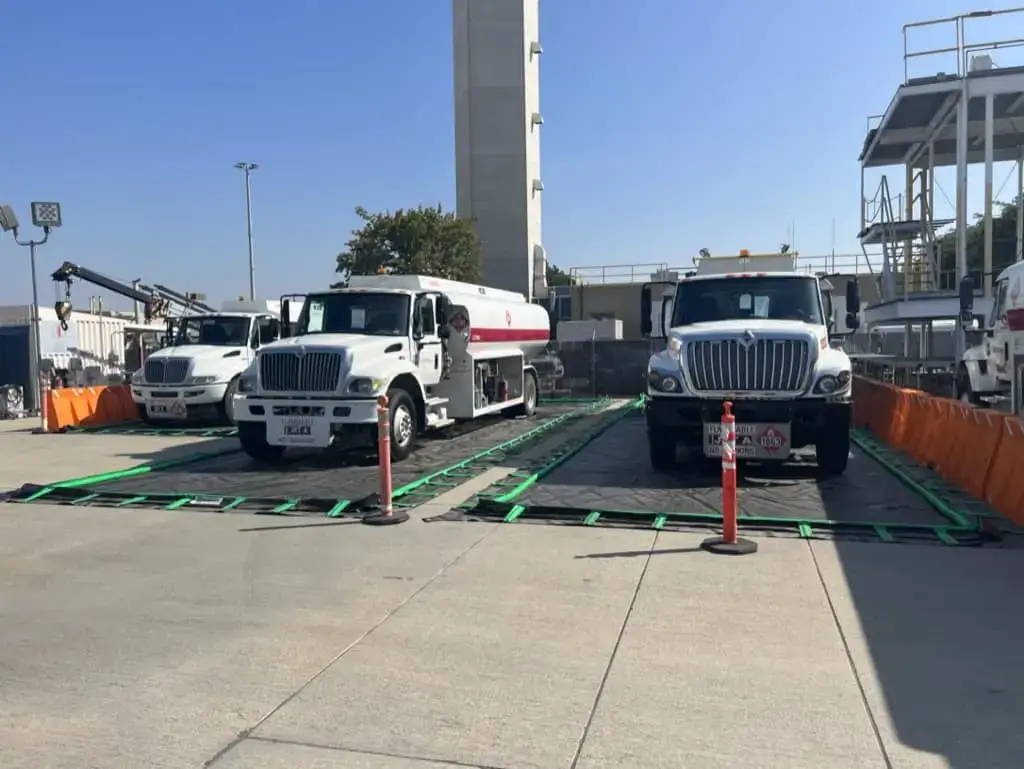

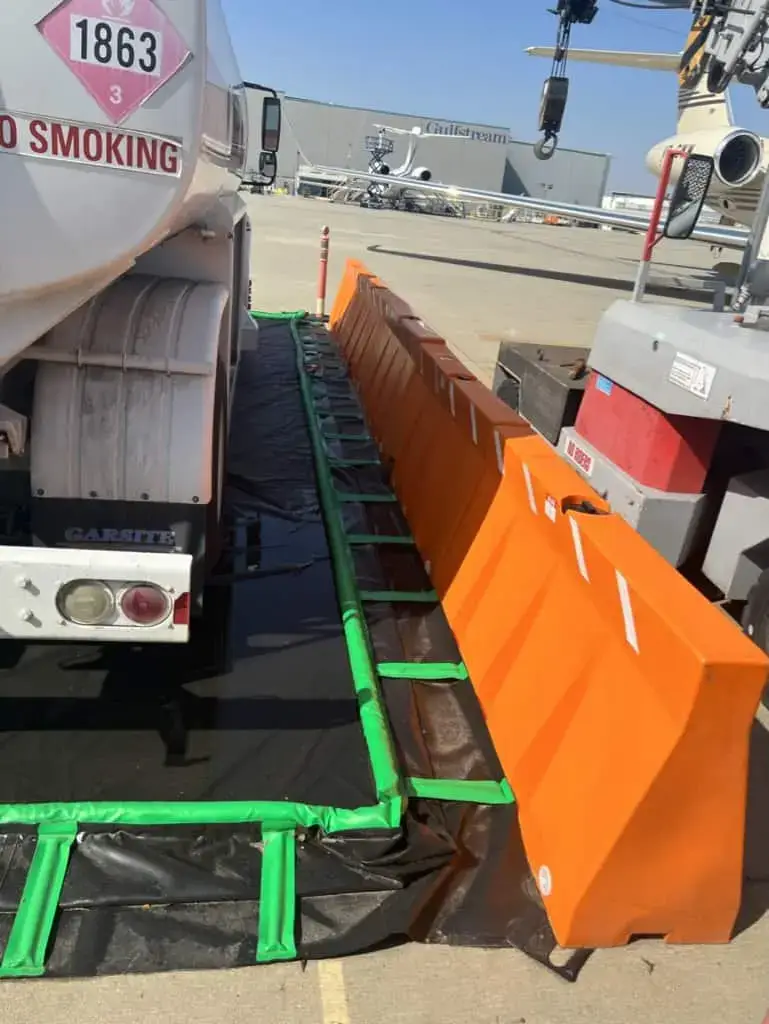

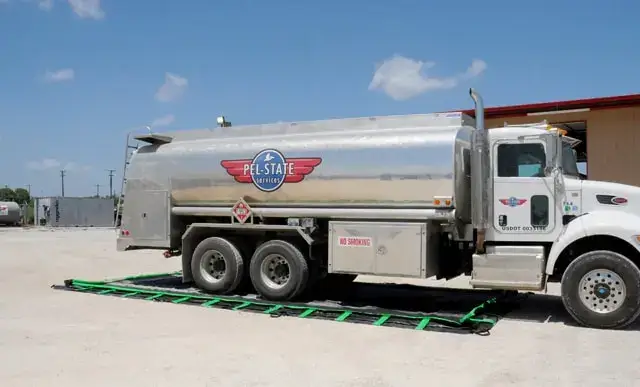

Common applications for the drive through berms include fueling stations, equipment yards, and industrial maintenance areas.

The drive through berms provide containment for fuels, oil, chemicals and other hazardous products.

Available drive through containment berm sizes range from 4'x6' to 15'x72'.

Drive Through Berm Optional Add-Ons for Heavy Duty Use:

Track Belts

30" wide sections of material that lie inside the berm and act as a buffer between a vehicles's tires and the berm.  Track Belts come in pairs and will typically run the length of the berm's usable space.

Ground Tarps

The ground tarps go underneath the berm and are typically 1 to 4 feet larger than the berm itself. The tarps are made of an 18.5 oz/sq yard polyester blended PVC.

By placing the ground tarp down before you place the berm, you can prevent punctures, tears and rips from rocks or debris on the ground.

Ground Tarp Plus

Heavy duty ground tarp that is more tear and puncture resistant than the standard ground tarp.

The Ground Tarp Plus is designed for oil fields and other rocky areas where extra heavy duty protection is required.

The Ground Tarp Plus also an absorbent top layer designed for nuisance leaks, drips and spills.

Choose from the following Drive Through Berm Models:

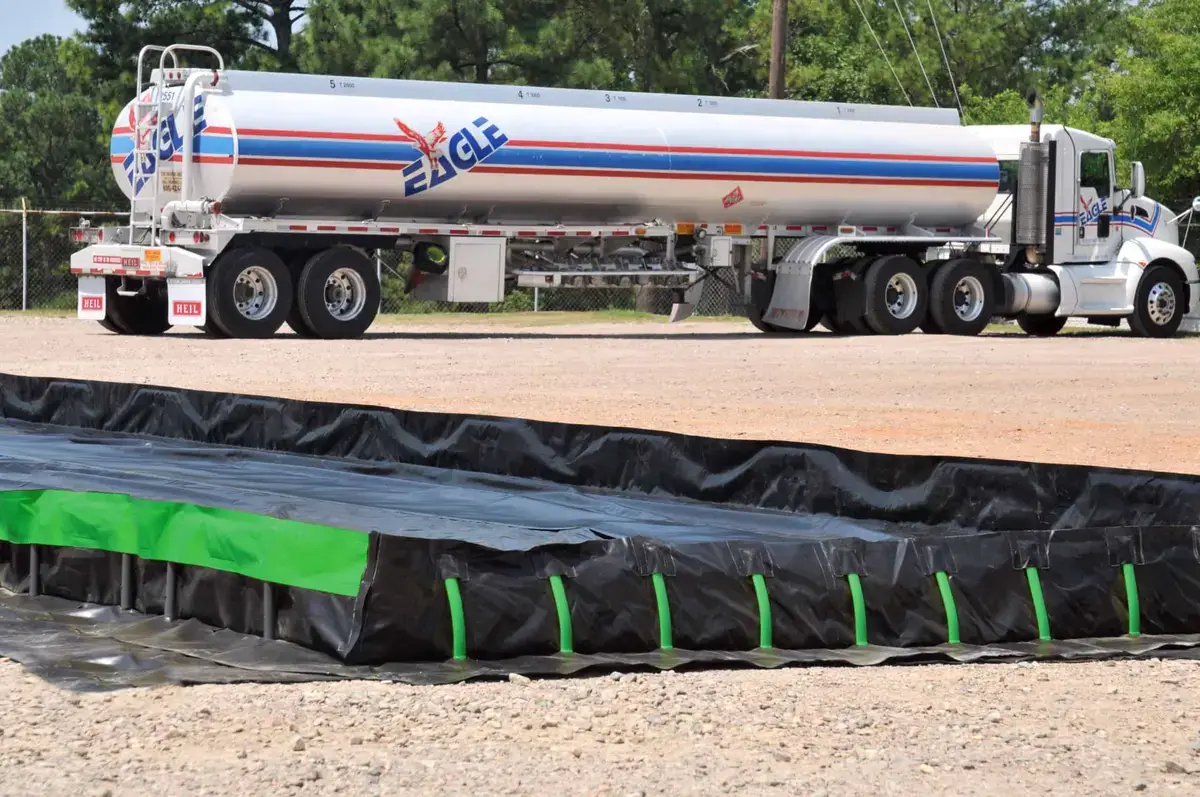

Ultimate Model (12 inch sidewalls / 2 drive through walls)

The Ultimate Model features 12 inch high walls that feature a "living hinge" that gives them the ability to bend under equipment and snap back into place.

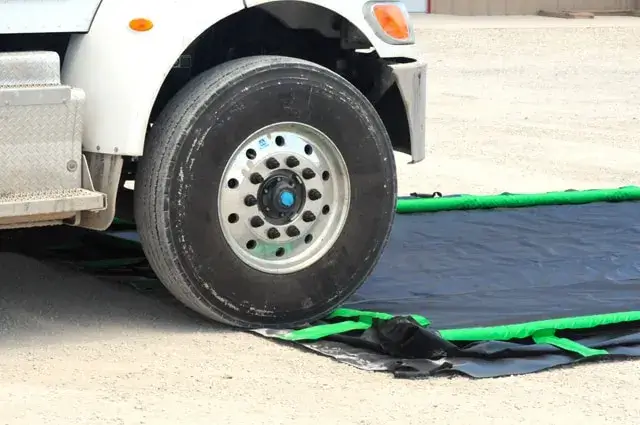

This living hinge design allows vehicles to drive into and out of the berm.  Once a vehicle has entered or exited, the walls automatically spring back to their vertical position.

The other two long sidewalls are held upright by PVC sidewall assemblies. Simply swivel the feet to lower the sidewalls for storage or transport to another location.

*Vehicles can only drive through the two shorter length sidewalls.  The other two longer sidewalls are not intended to be driven over.

Available Sizes: 10 sizes from 4'x6' to 15'x66'.

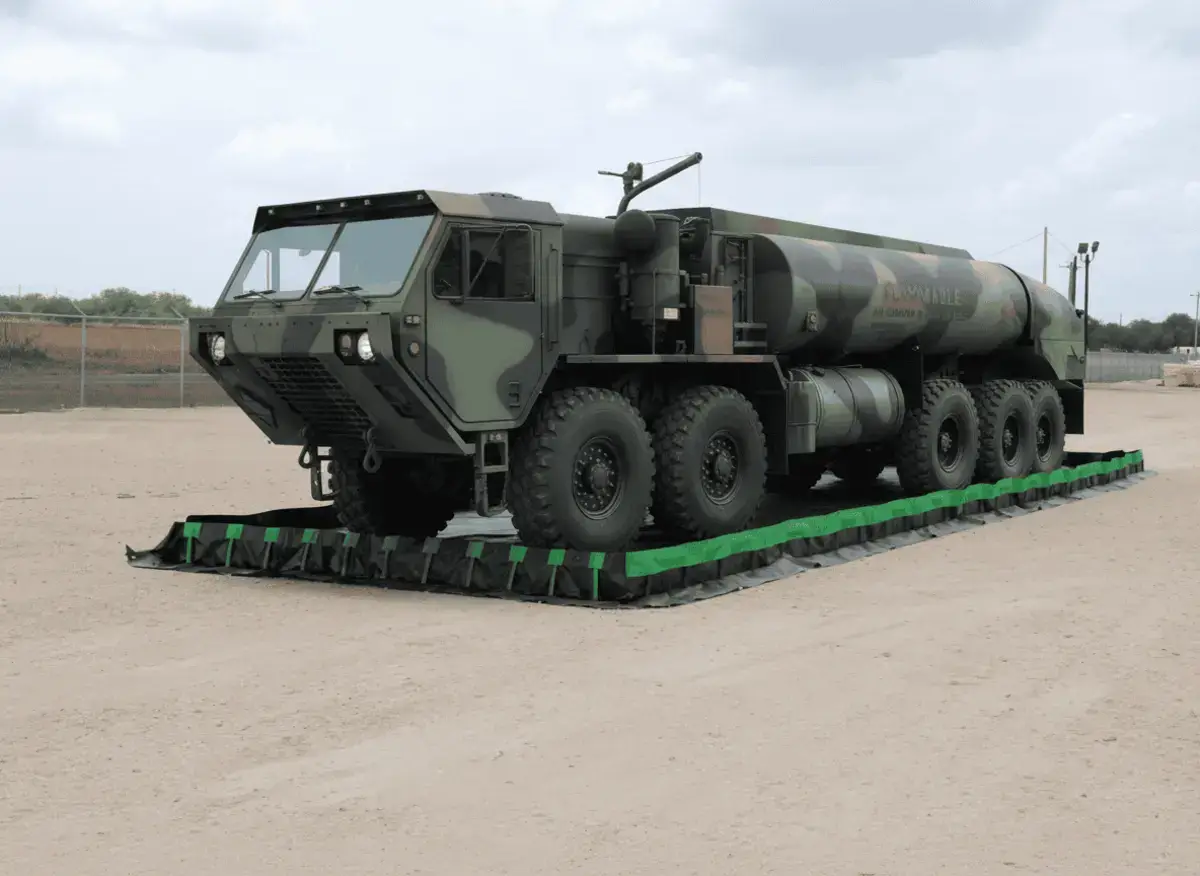

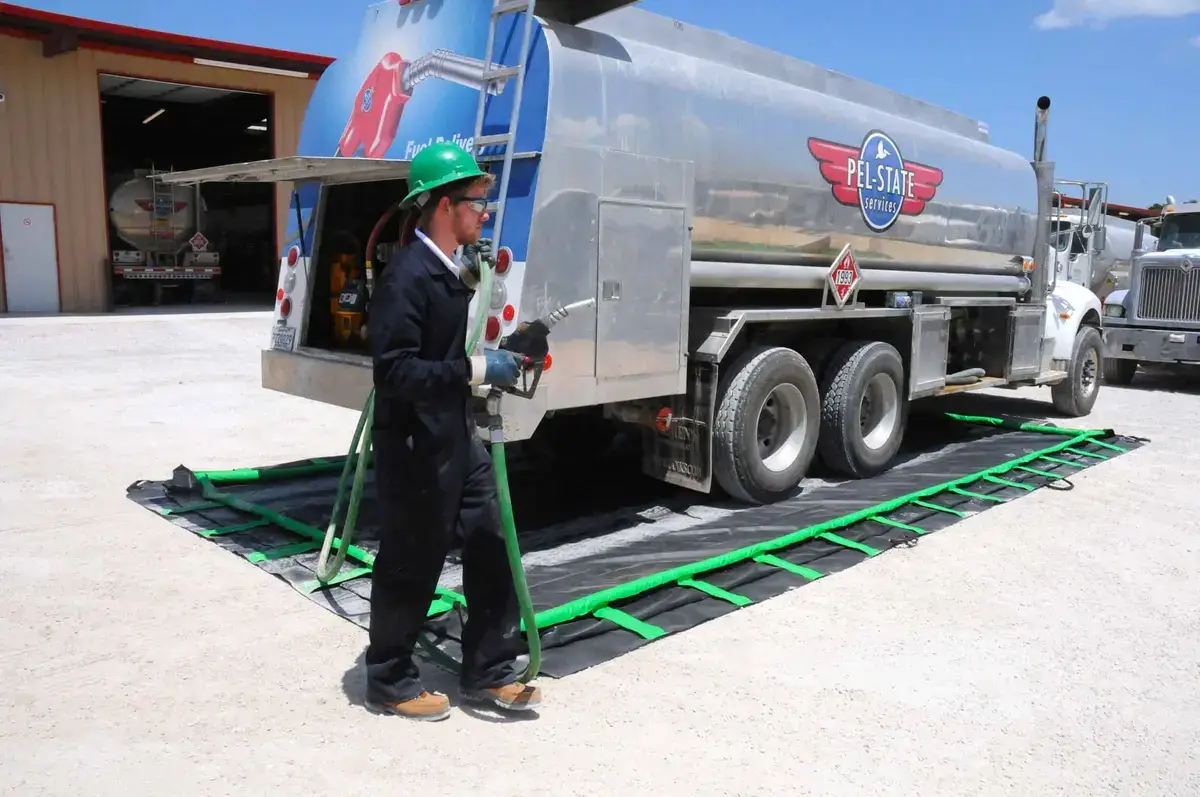

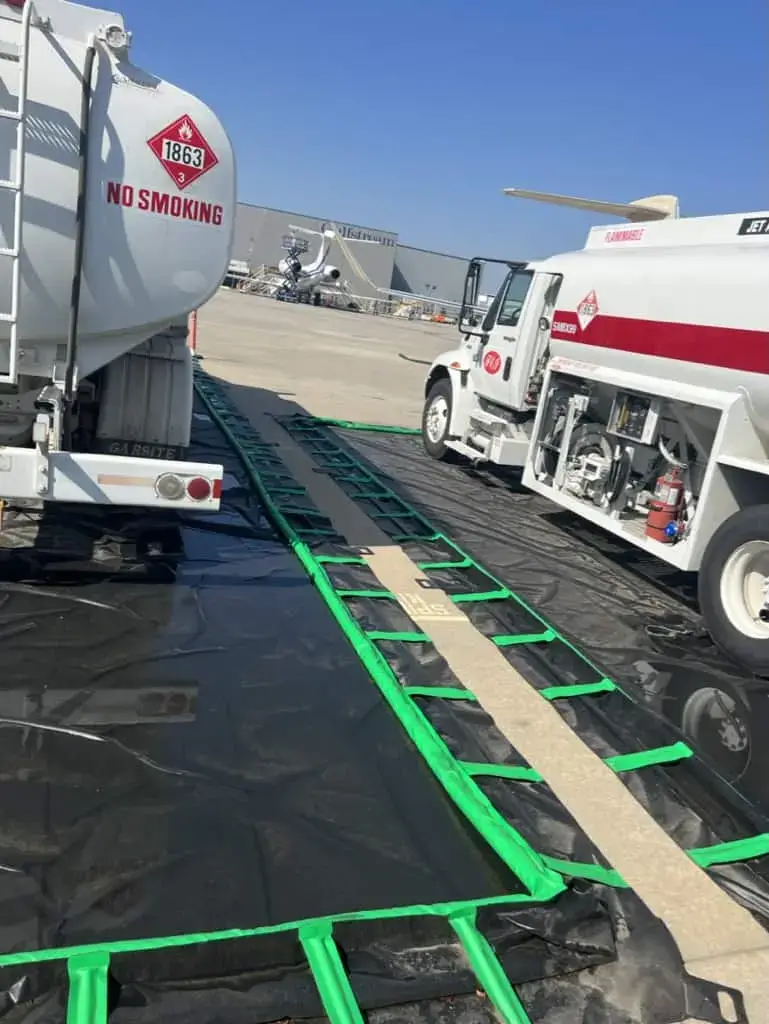

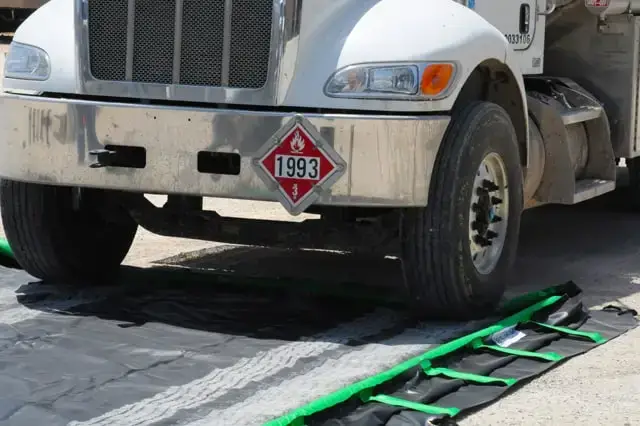

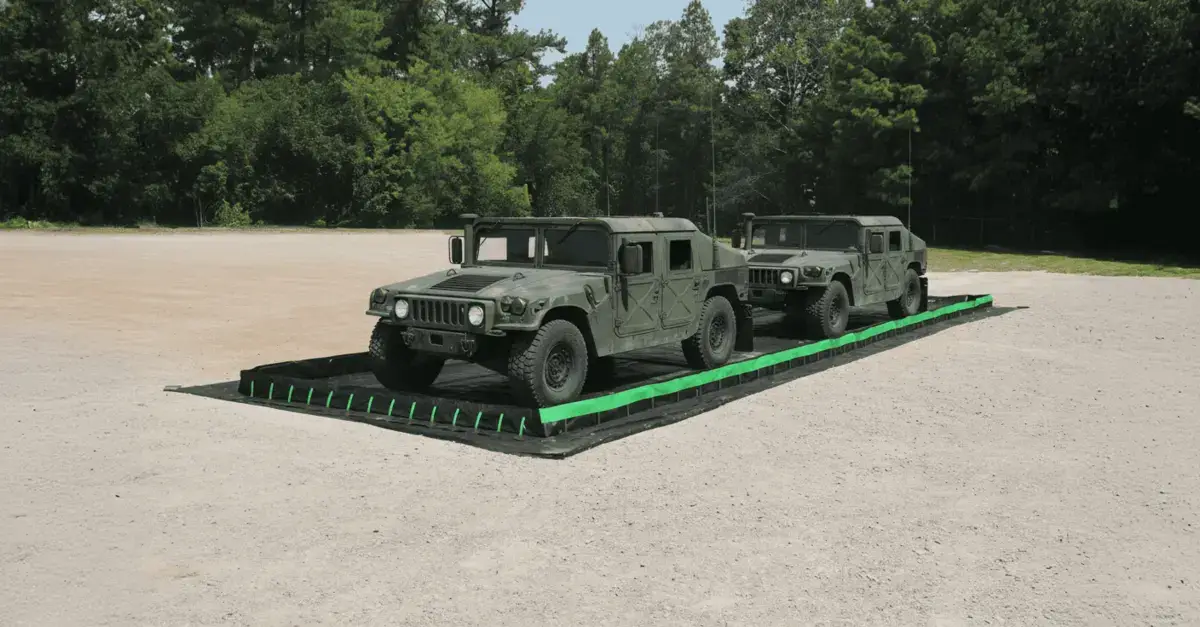

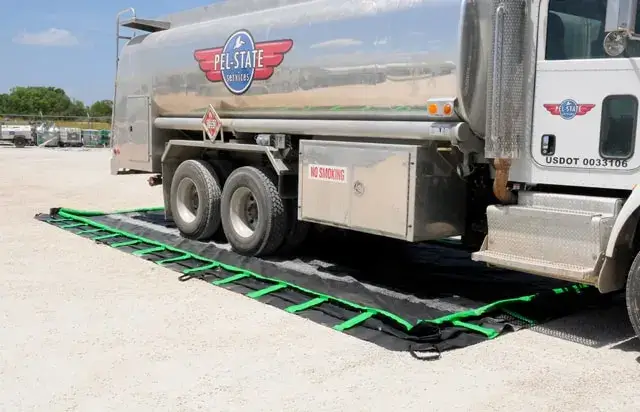

Rapid Rise Model (12 inch sidewalls / sidewalls rise with level of liquid in berm)

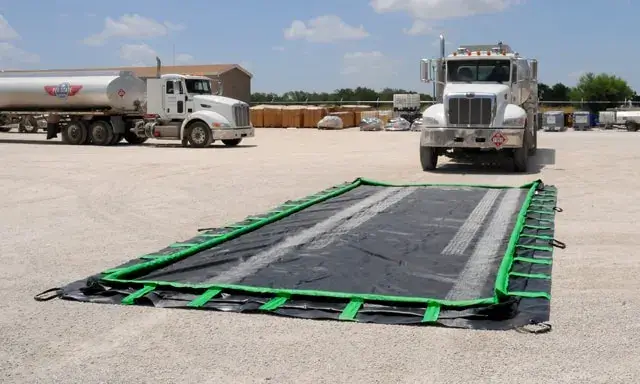

Innovative design that offers no berm walls during normal operations.  Vehicles can drive into and out of the berm without having to worry about driving over berm walls.

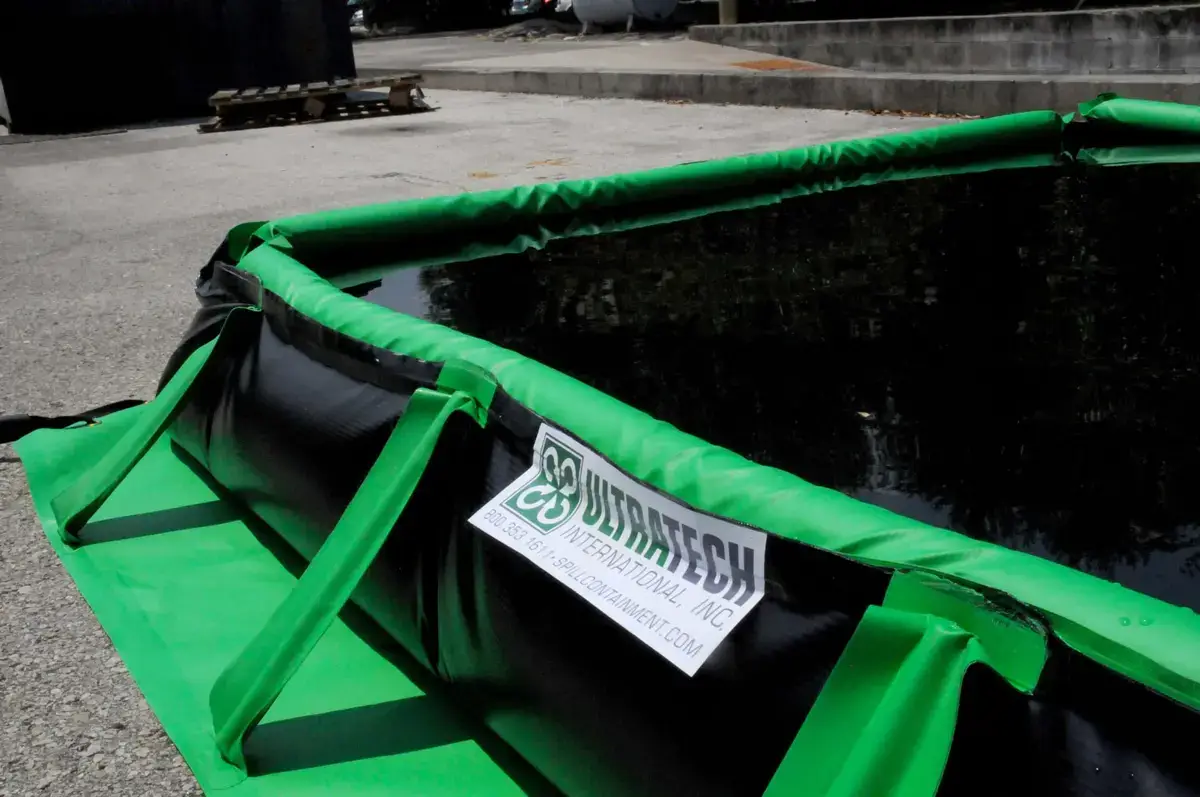

The Rapid Rise berm walls only rise up around the berm in response to the level of fluid inside the berm.  In the case of a spill, the foam ring around the top perimeter of the containment berm rises with the level of spilled liquid.

Built-in struts around the perimeter of the berm provide additional support when the liquid level is high.

Available Sizes: 18 sizes from 4'x6' to 15'x72'.

Drive Through Berm Model Comparison:

• Ultimate - 12 inch high sidewalls / vehicles can drive through 2 walls.
• Rapid Rise - 12 inch high flat foam side walls that only rise based on the level of liquid.

Available Liner:

• Copolymer-2000 - 28 oz


Ultimate Model Features:

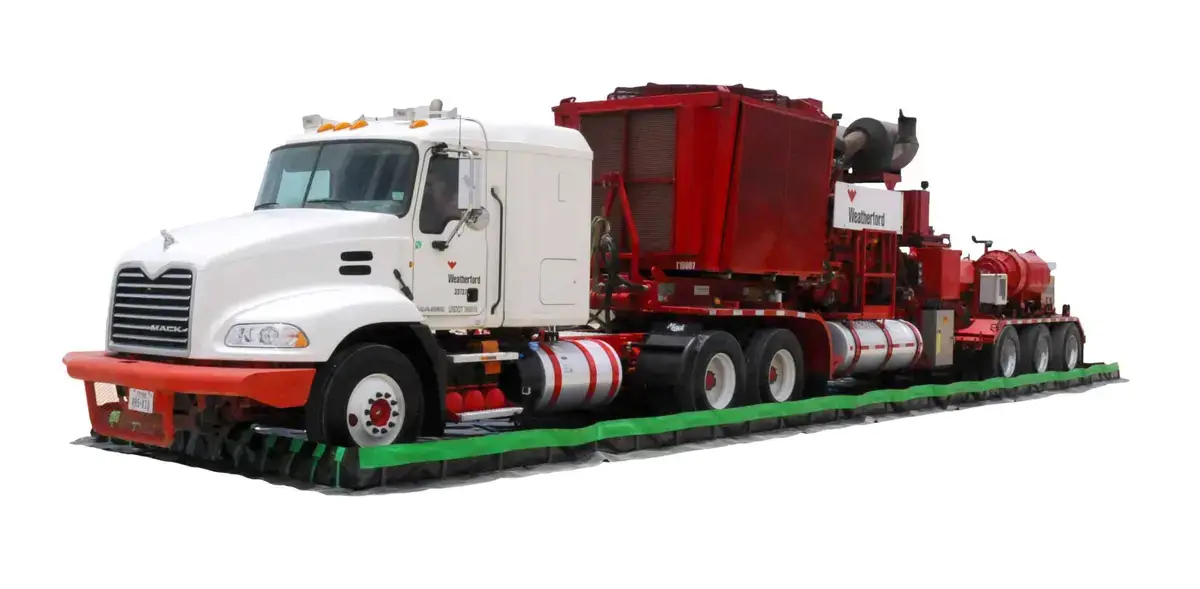

• Tanker trucks and other large vehicles can drive over the two flexible walls without the requirement to manually raise or lower the walls.
• 12 inch high sidewalls.
• Drive over bendable & flexible walls on the two smaller length walls / the 2 longer length walls can be manually raised and lowered by swiveling the feet to lower the sidewalls.
• Convenient and economical option for tanker trucks.

Rapid Rise Features:

• Sidewalls remain flat during normal operations, loading, and unloading.
• Vehicles and equipment can drive in and out with no set-up or take down required.
• Sidewalls can rise up to 12 inches high based on the level of the liquid.
• In the case of a spill, the foam ring around the top perimeter of the containment berm rises with the level of the spilled liquid.
• Built-in struts around the perimeter of the berm provide additional support when the liquid level is high.

Spec Sheets:

• Rapid Rise Model
• Ultimate Model

Containment Berm Model Comparison:

• Berm Model Comparison Sheet

Berm Chemical Compatibility / Maintenance:

• Spill Berm Chemical Guide

Available Sizes & Dimensions:

Ultimate Model / 2 side drive over / 12 inch side wall height:

• 4'x6' - 179 gallon containment capacity / 72 lbs (copoly)
• 10'x10' - 748 gallon containment capacity / 176 lbs (copoly)
• 12'x26' - 2,333 gallon containment capacity / 189 lbs (copoly)
• 12'x30' - 2,692 gallon containment capacity /  256 lbs (copoly)
• 12'x36' - 3,231 gallon containment capacity / 283 lbs (copoly)
• 12'x60' - 5,385 gallon containment capacity / 297 lbs (copoly)
• 14'x54' - 5,655 gallon containment capacity / 368 lbs (copoly)
• 14'x56' - 5,864 gallon containment capacity / 408 lbs (copoly)
• 15'x50' - 5,610 gallon containment capacity / 326 lbs (copoly)
• 15'x66' - 7,405 gallon containment capacity / 405 lbs (copoly)

Rapid Rise Model / 12 inch side wall height:

• 4'x6' - 179 gallon containment capacity / 27 lbs (copoly)
• 6'x6' - 269 gallon containment capacity / 35 lbs (copoly)
• 10'x10' - 748 gallon containment capacity / 63 lbs (copoly)
• 12'x12' - 1,077 gallon containment capacity / 85 lbs (copoly)
• 12'x26' - 2,333 gallon containment capacity / 149 lbs (copoly)
• 12'x30' - 2,692 gallon containment capacity / 171 lbs (copoly)
• 12'x40' - 2,590 gallon containment capacity / 218 lbs (copoly)
• 12'x50' - 4,488 gallon containment capacity / 266 lbs (copoly)
• 12'x60' - 5,385 gallon containment capacity / 293 lbs (copoly)
• 12'x72' - 6,462 gallon containment capacity / 370 lbs (copoly)
• 15'x15' - 1,683 gallon containment capacity / 115 lbs (copoly)
• 15'x20' - 2,244 gallon containment capacity / 141 lbs (copoly)
• 15'x30' - 3,366 gallon containment capacity / 195 lbs (copoly)
• 15'x40' - 4,488 gallon containment capacity / 248 lbs (copoly)
• 15'x50' - 5,610 gallon containment capacity / 278 lbs (copoly)
• 15'x60' - 6,732 gallon containment capacity / 356 lbs (copoly)
• 15'x66' - 7,405 gallon containment capacity / 357 lbs (copoly)
• 15'x72' - 8,078 gallon containment capacity / 420 lbs (copoly)

Other Options:

• Browse other drive through spill containment berms or all Ultra Containment Berm options.
