Ultra Hard Top Spill Pallet

The Ultra Hard Top Spill Pallet provides outdoor spill containment for 55 gallon drums.

The poly spill pallet shed provides secure, lockable storage for 55 gallon drums.

The Hard Top Spill Pallets are available in sizes designed to hold one, two, three or four 55 gallon drums on a single spill pallet.

Hard Top Spill Pallet Types:

• Gullwing - Lift open front cover / holds 2 or 4 drums / lower cost option
• Plus - Roll top cover / holds 1 to 4 drums / optional ramp / scalable storage

Drain Types:

• No Drain - no drain included on spill pallet.
• With Drain - Threaded sidewall drain with 3/4" polyethylene plug with NPT threads.

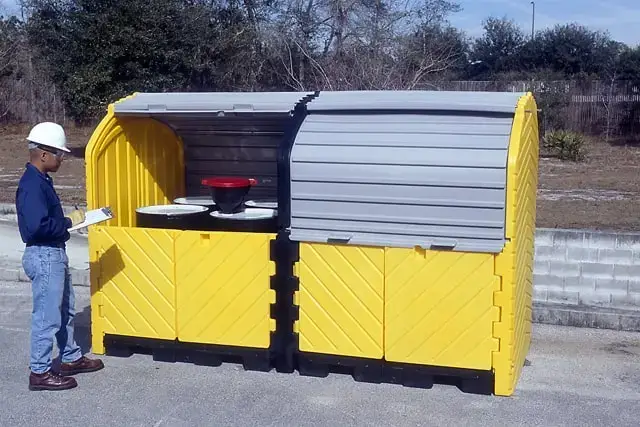

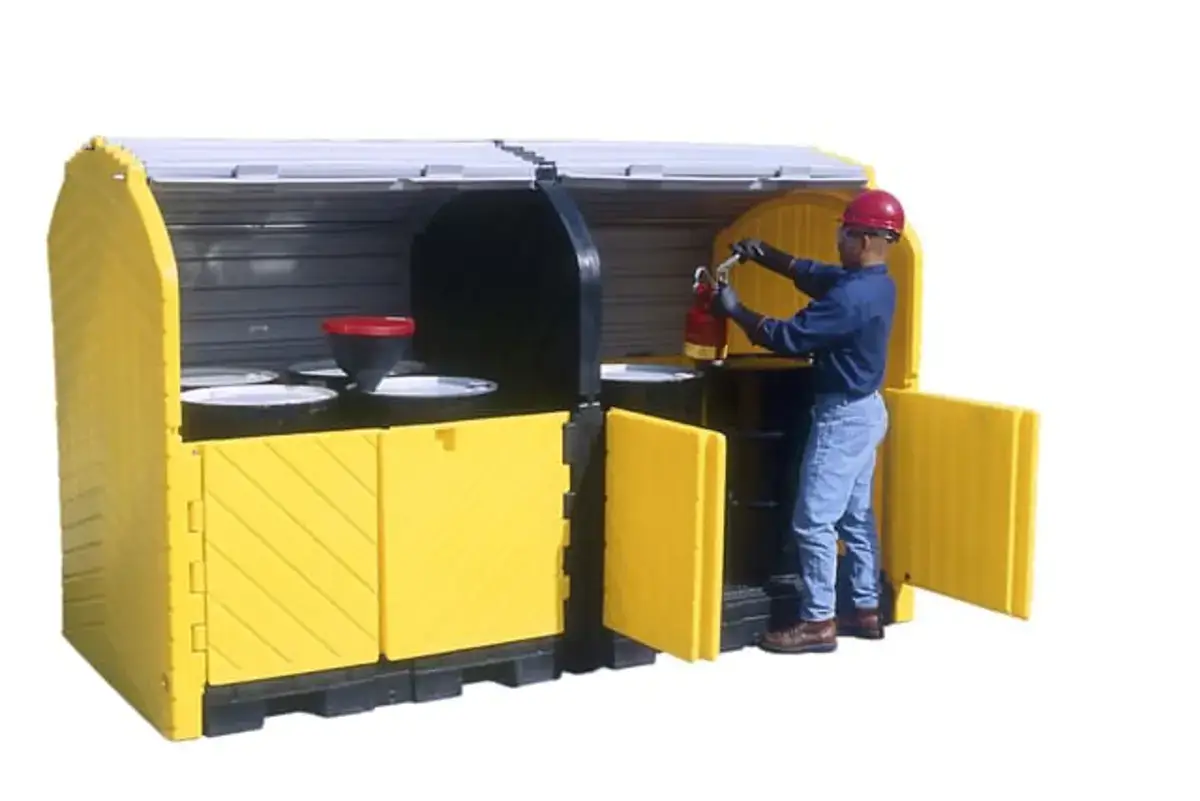

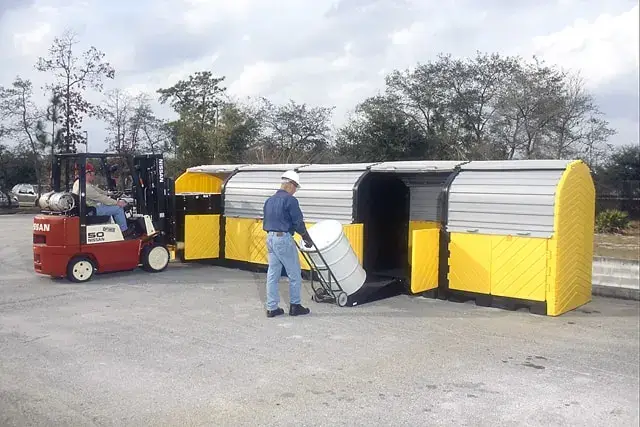

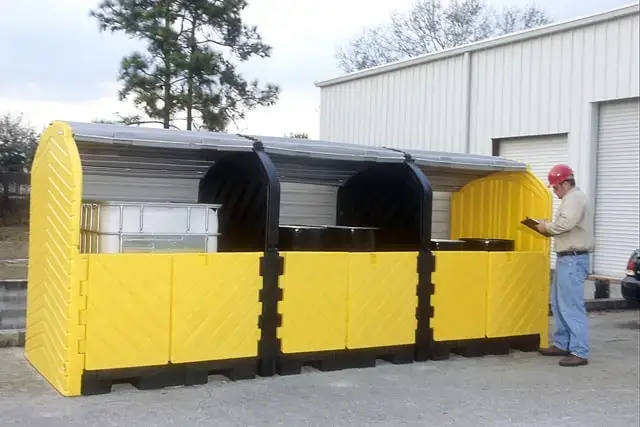

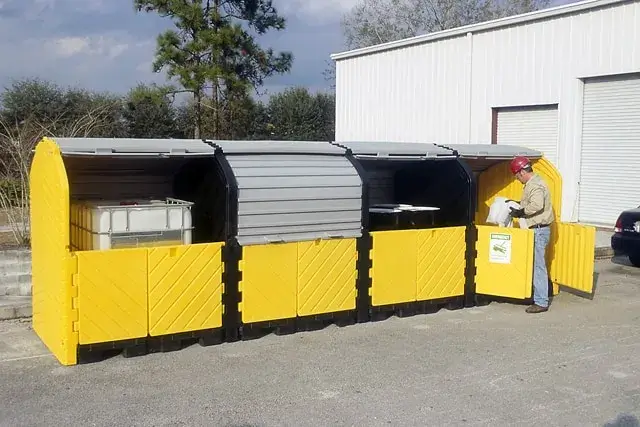

Hard Top Spill Pallet Plus / Scalable Outdoor Storage:

If you have multiple drums being stored in the same outdoor location, you can store up to 20 drums with the Hard Top Spill Pallet Plus outdoors in a single row.

• P8 Plus - store up to 8 drums.
• P16 Plus - store up to 16 drums.
• P20 Plus - store up to 20 drums.
• Optional Extender Kit - allows for greater than 20 drums.

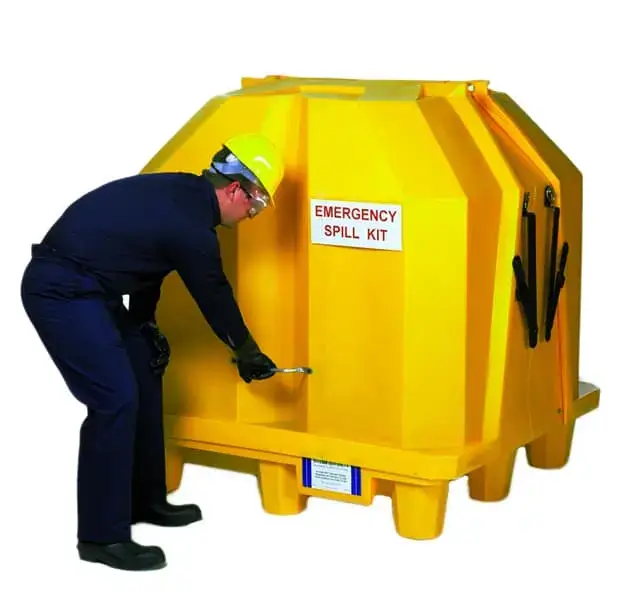

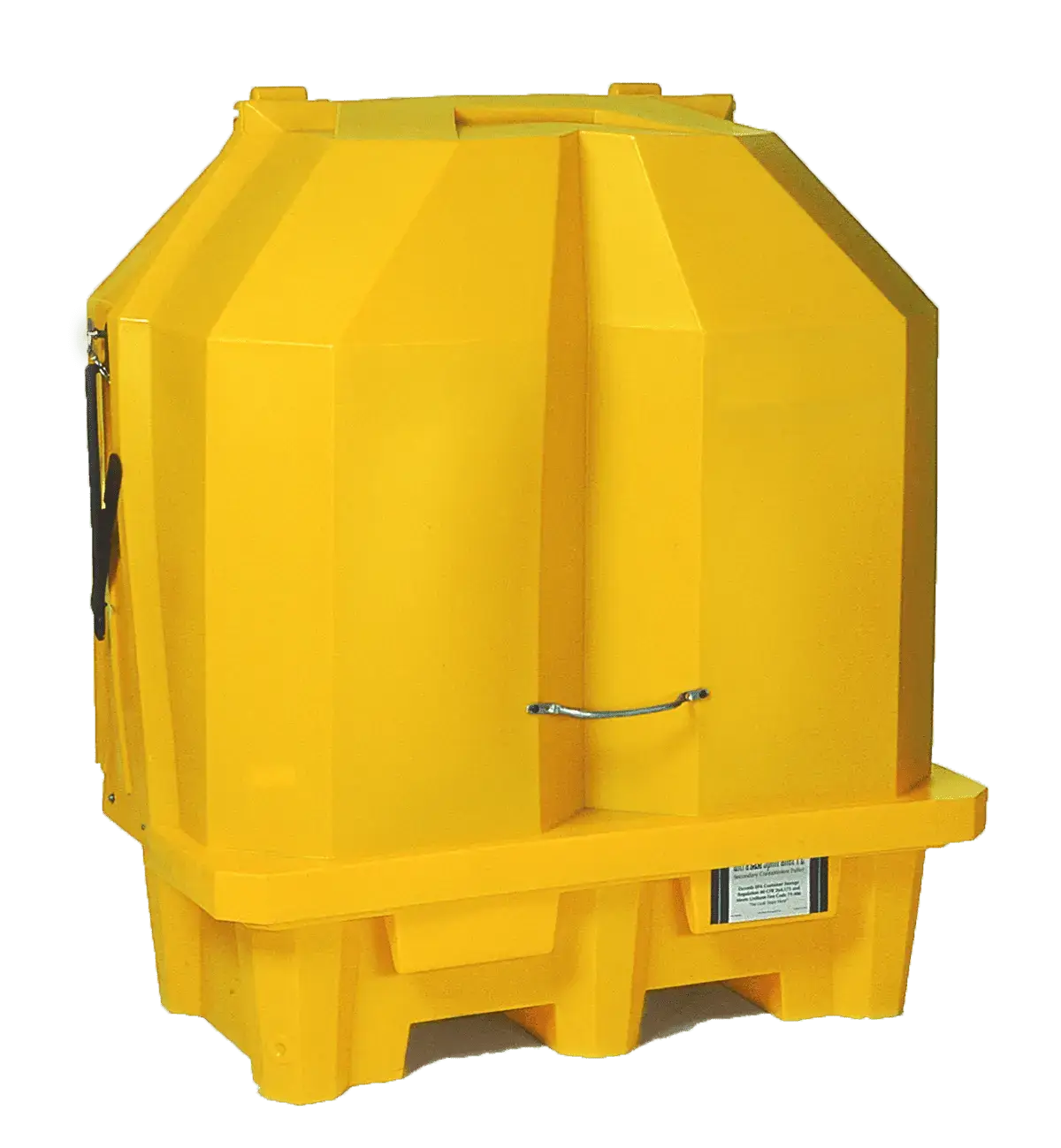

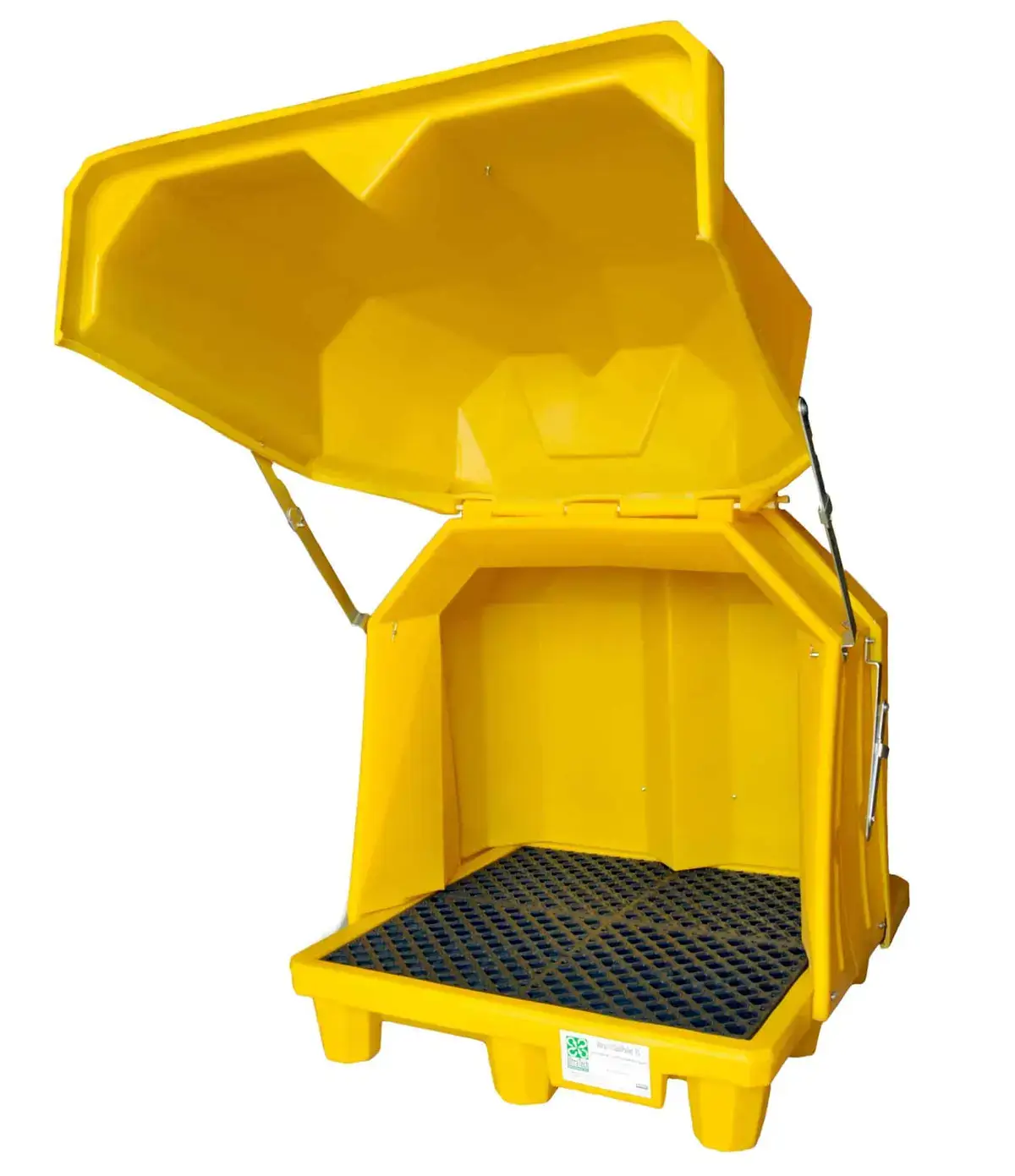

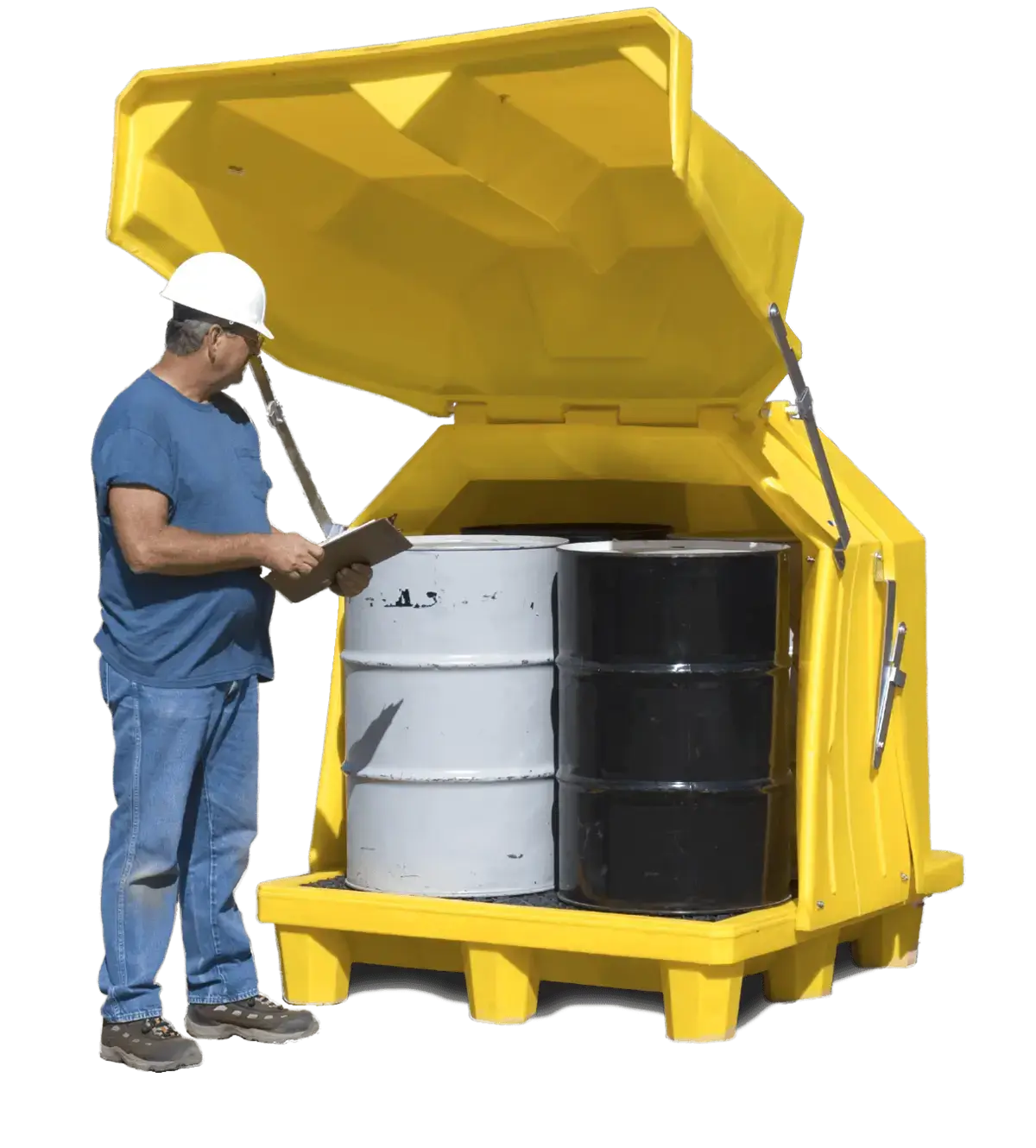

Hard Top Gullwing Features:

• Low cost outdoor storage option for storing 2 or 4 drums.
• Heavy duty steel cover lift can be easily opened by one person.
• The cover lift can remain open, making decanting of waste easy and efficient.
• Drums are positioned on a deck above the sump area, elevated from any spilled or leaked materials.
• UV inhibitor in polyethylene resin resists degrading effects of sunlight.
• Deck grates are removable for easy cleaning of sump area.
• Meets SPCC & EPA Spill Containment Regulations.

• Polyethylene design offers chemical resistance & will not rust or corrode.

• 5 year Manufacturer Warranty.

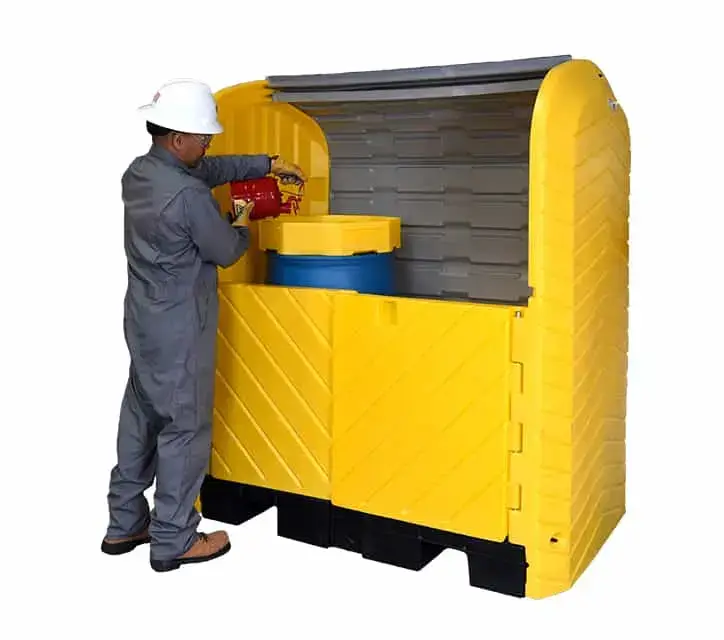

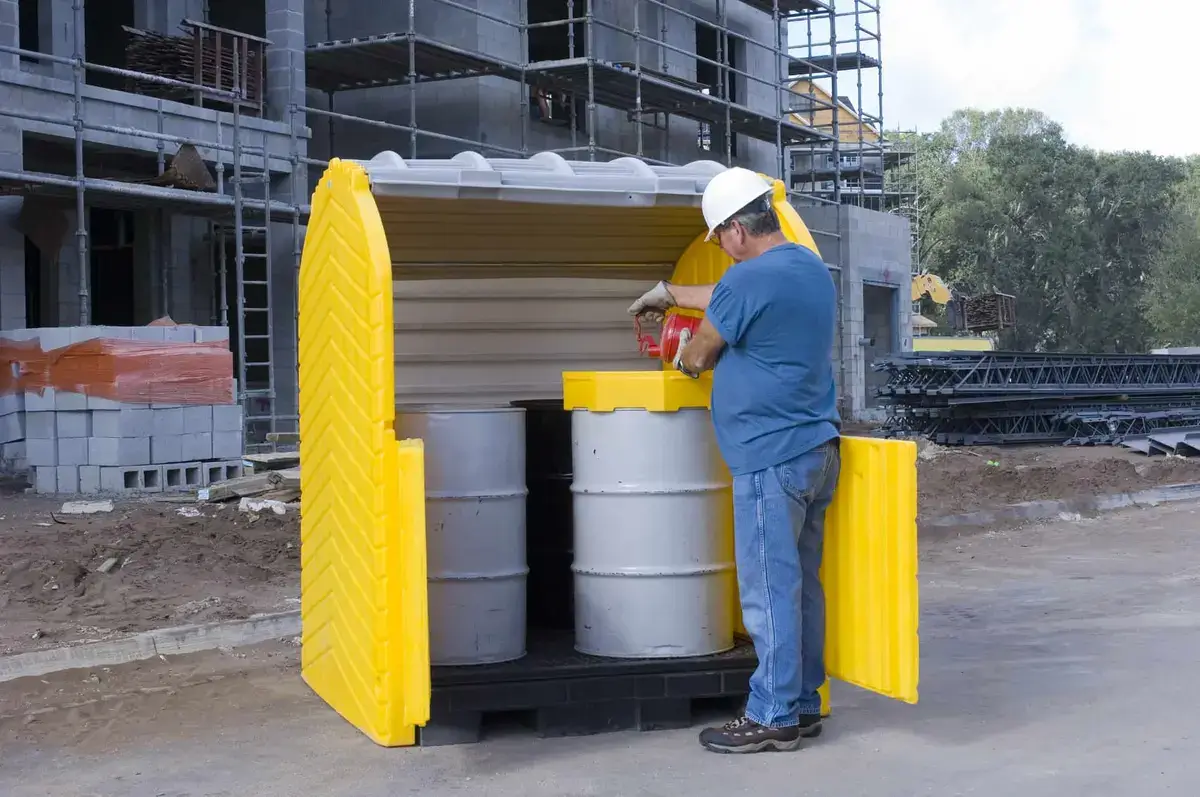

Hard Top Plus Features:

• Secure, lockable design with a standard padlock.
• Easy open, simply lift from waist-level to raise the roll-top cover.
• Tall 23 3/4" headspace easily accommodates rotary drum pumps and large conical funnels.
• Low profile (8 3/4") containment pallet positions drum top funnels at safe, convenient level to pour hazardous waste.

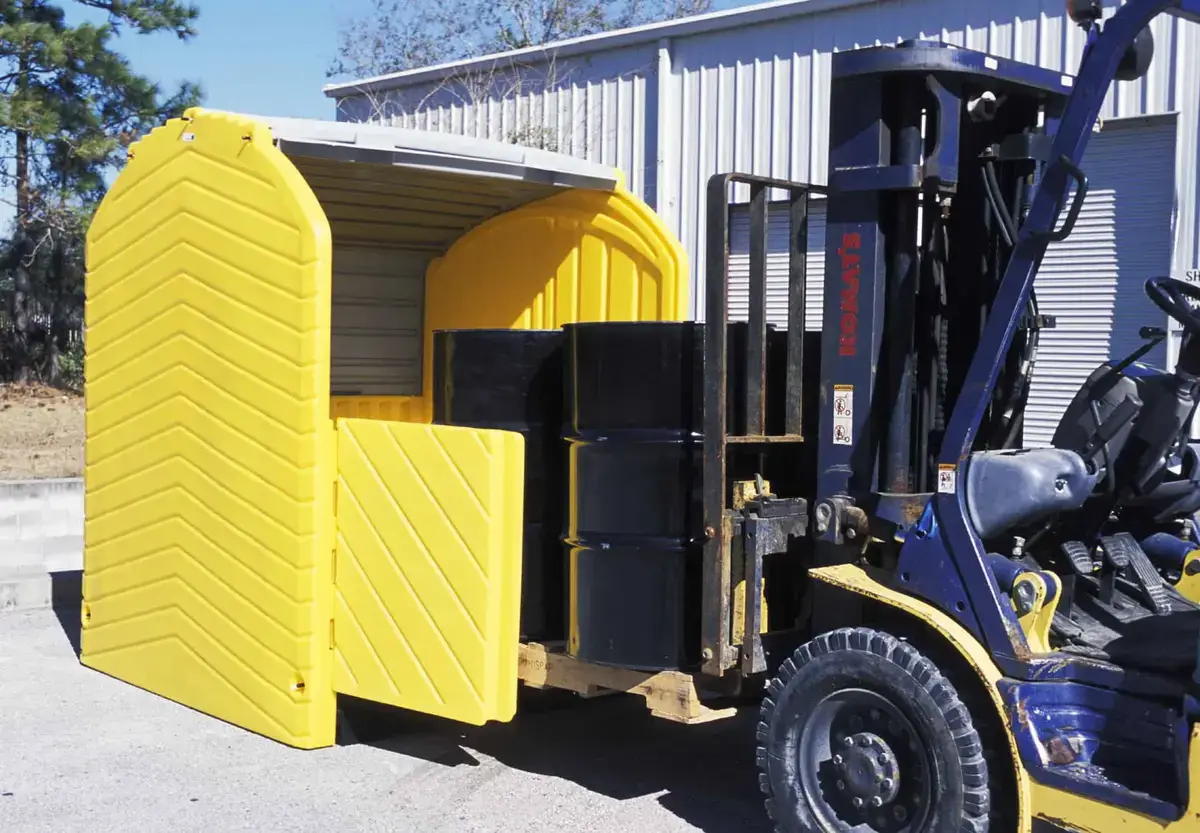

• Swing out lower door provides full access to drums for loading and unloading.

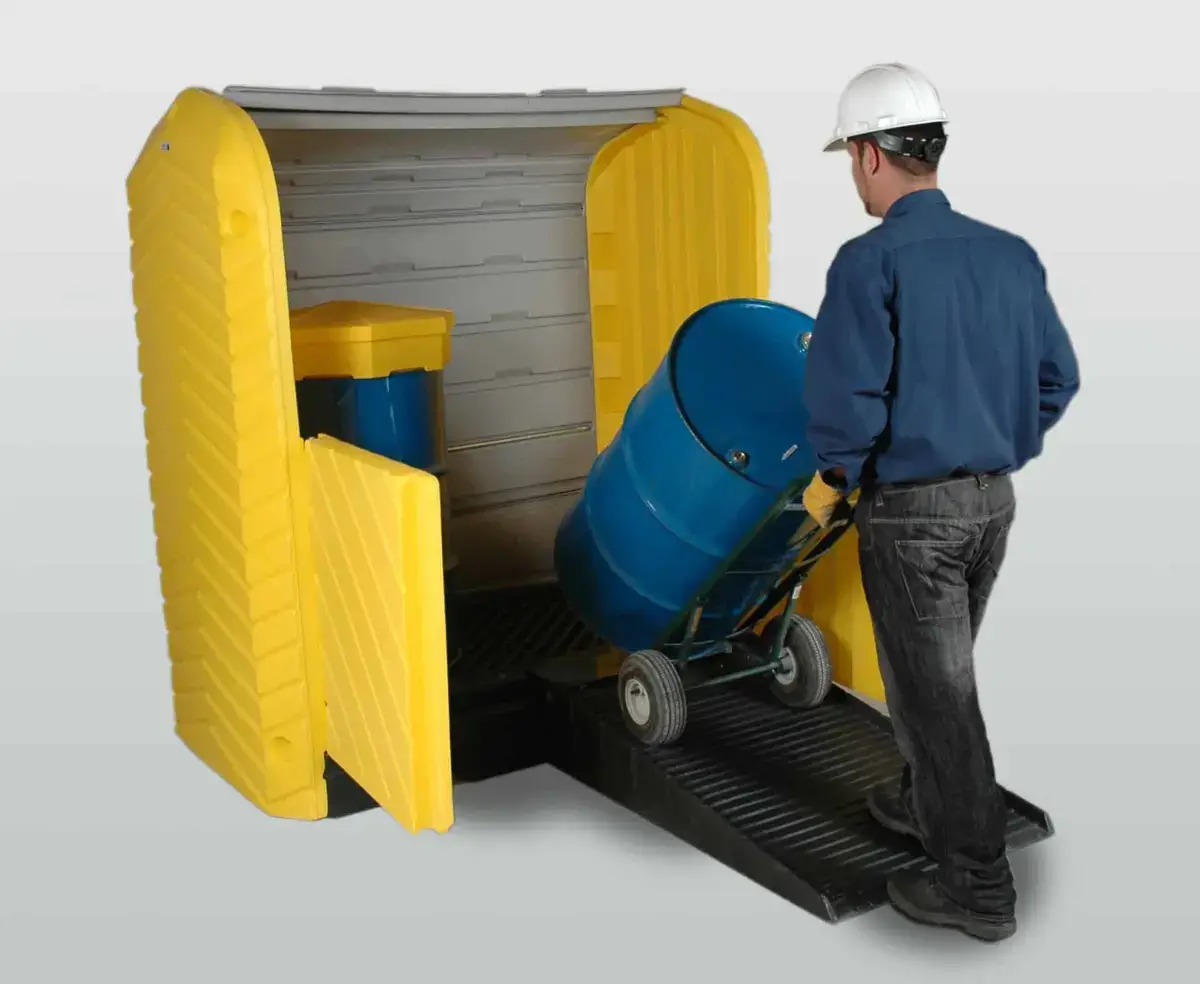

• Optional loading ramp stores neatly inside when not in use.
• UV inhibitor in polyethylene resin resists degrading effects of sunlight.
• Meets SPCC & EPA Spill Containment Regulations.
• Poly design provides chemical resistance & will not rust or corrode.
• 5 year manufacturer warranty.

Spill Pallet Spec Sheets:

• P2 Gullwing
• P4 Gullwing
• P1 Plus
• P2 Plus
• P4 Plus

Spill Pallet Chemical Compatibility / Maintenance:

• Spill Pallet Chemical Guide - Molded Polyethylene
• Spill Pallet Care & Maintenance Guide

Available Sizes & Dimensions:

Hard Top P2 Gullwing:

• Containment Capacity: 66 gallons
• Number of Drums: up to 2
• Hard Top Dimensions: 57"L x 30.5"W x 63.5"H
• Grating Surface: 48"L x 24"W
• Weight: 173 pounds
• Weight Capacity: 3,000 pounds
• Drain: Optional
• Fork Lift Slots: Yes

Hard Top P4 Gullwing:

• Containment Capacity: 66 gallons
• Number of Drums: up to 4
• Hard Top Dimensions: 57"L x 54"W x 64.5"H
• Grating Surface: 48"L x 48"W
• Weight: 226 pounds
• Weight Capacity: 6,000 pounds
• Drain: Optional
• Fork Lift Slots: Yes

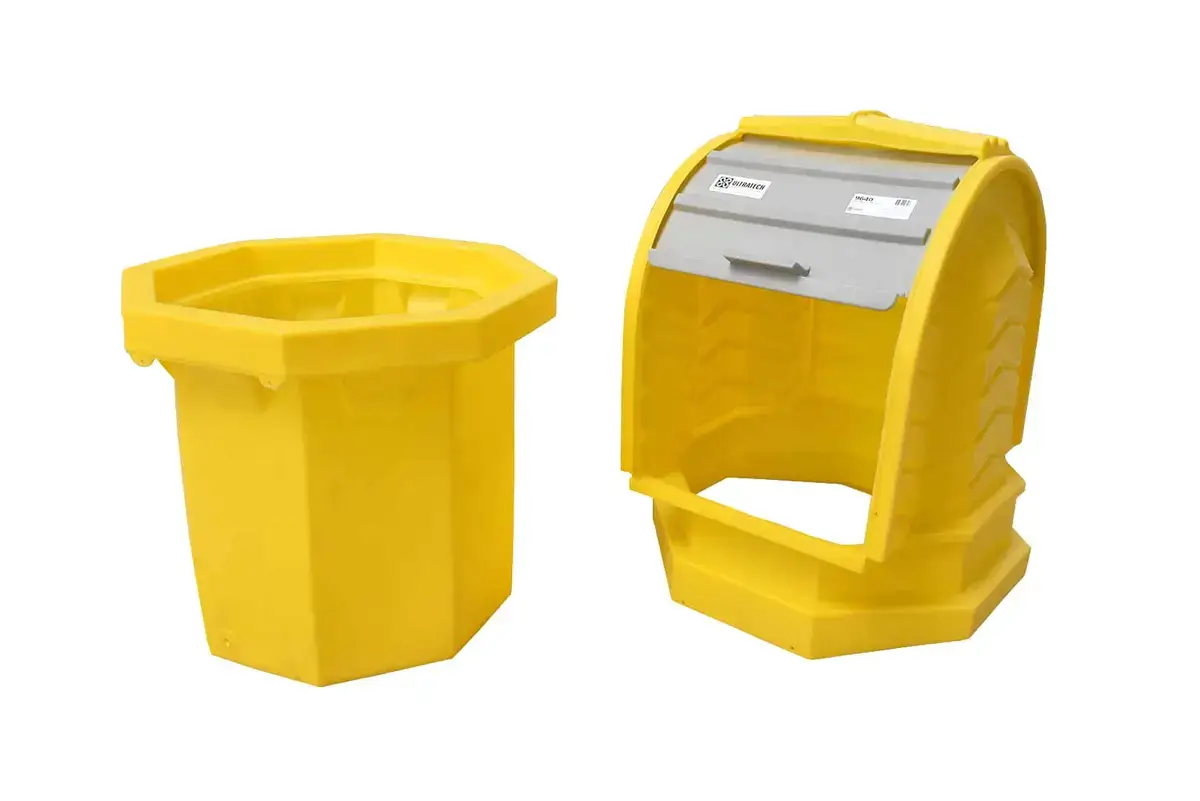

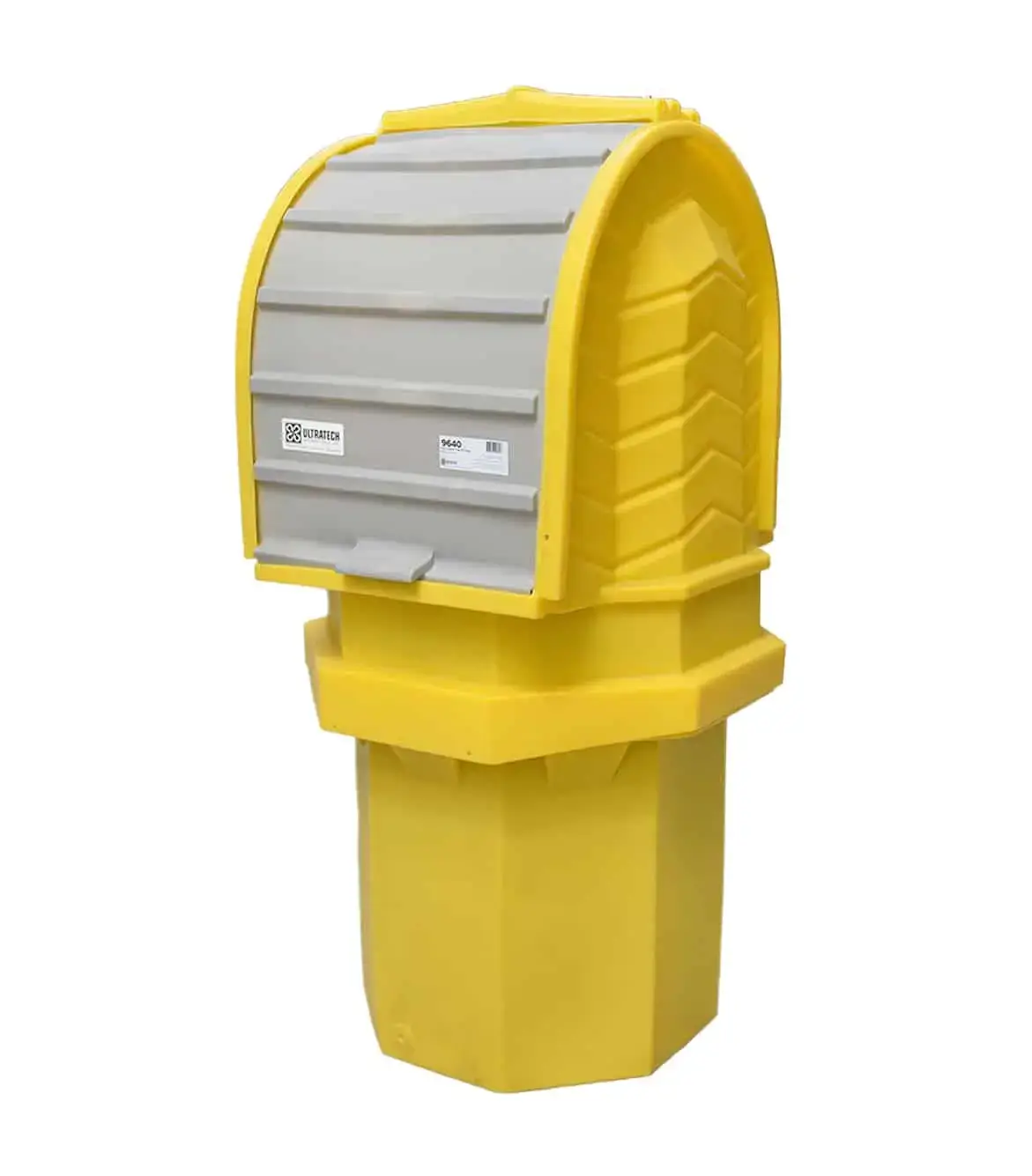

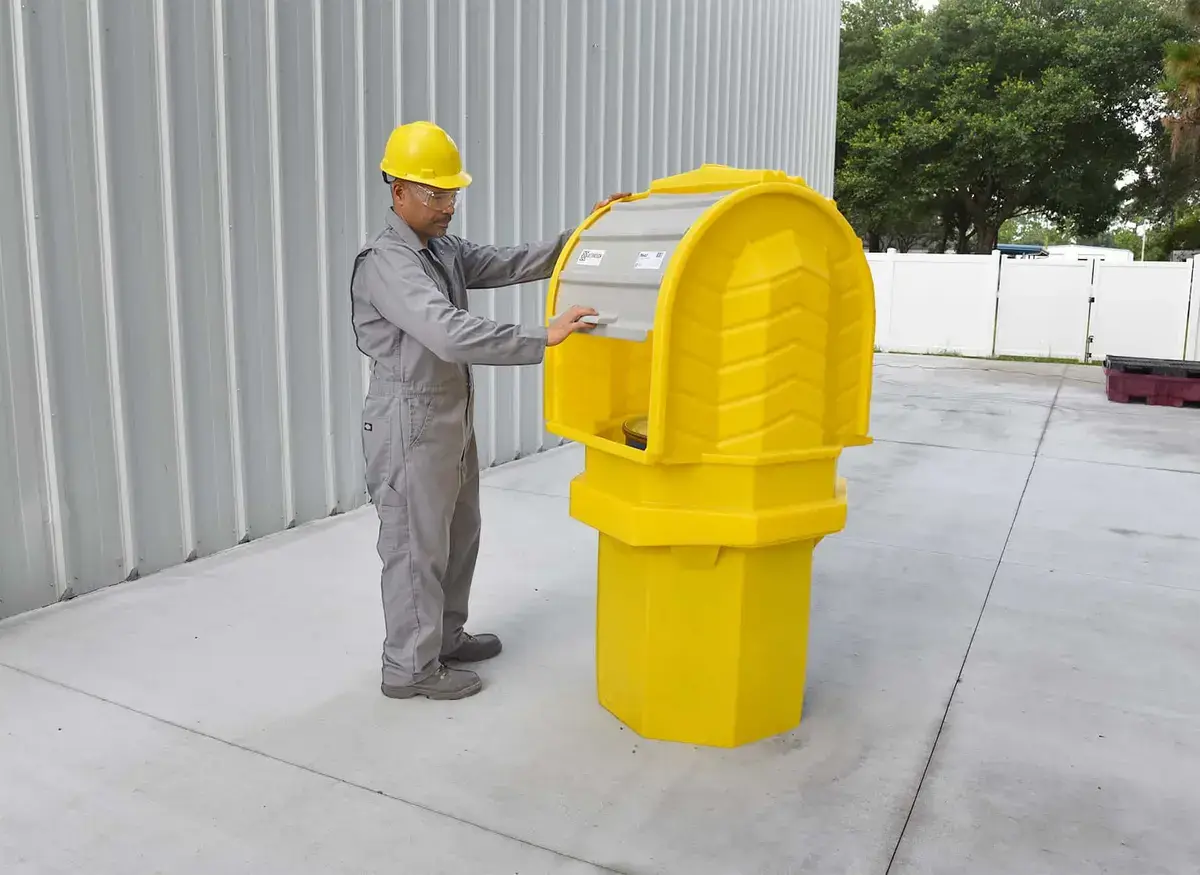

Hard Top P1 Plus:

• Containment Capacity: 70 gallons
• Number of Drums: 1
• Hard Top Dimensions: 36"L x 36"W x 66"H
• Weight: 62 pounds
• Weight Capacity: 800 pounds
• Drain: Optional
• Fork Lift Slots: No

Hard Top P2 Plus:

• Containment Capacity: 66 gallons
• Number of Drums: up to 2
• Hard Top Dimensions: 67.3"L x 41.3"W x 74"H
• Grating Surface: 52"L x 26"W
• Weight: 260 pounds
• Weight Capacity: 4,500 pounds
• Drain: Optional
• Fork Lift Slots: Yes

Hard Top P4 Plus:

• Containment Capacity: 75 gallons
• Number of Drums: up to 4
• Hard Top Dimensions: 64.5"L x 62"W x 79"H
• Grating Surface: 52"L x 52"W
• Weight: 440 pounds
• Weight Capacity: 9,000 pounds
• Drain: Optional
• Fork Lift Slots: Yes

Hard Top P8 Plus:

• Containment Capacity: 75 gallons
• Number of Drums: up to 8
• Hard Top Dimensions: 188"L x 62"W x 79"H
• Grating Surface: 52"L x 52"W
• Weight: 1,190 pounds
• Weight Capacity: 9,000 pounds
• Drain: Optional
• Fork Lift Slots: Yes

Hard Top P16 Plus:

• Containment Capacity: 75 gallons
• Number of Drums: up to 16
• Hard Top Dimensions: 250"L x 62"W x 79"H
• Grating Surface: 52"L x 52"W
• Weight: 1,565 pounds
• Weight Capacity: 9,000 pounds
• Drain: Optional
• Fork Lift Slots: Yes

Hard Top P20 Plus:

• Containment Capacity: 75 gallons
• Number of Drums: up to 20
• Hard Top Dimensions: 312"L x 62"W x 79"H
• Grating Surface: 52"L x 52"W
• Weight: 1,940 pounds
• Weight Capacity: 9,000 pounds
• Drain: Optional
• Fork Lift Slots: Yes
