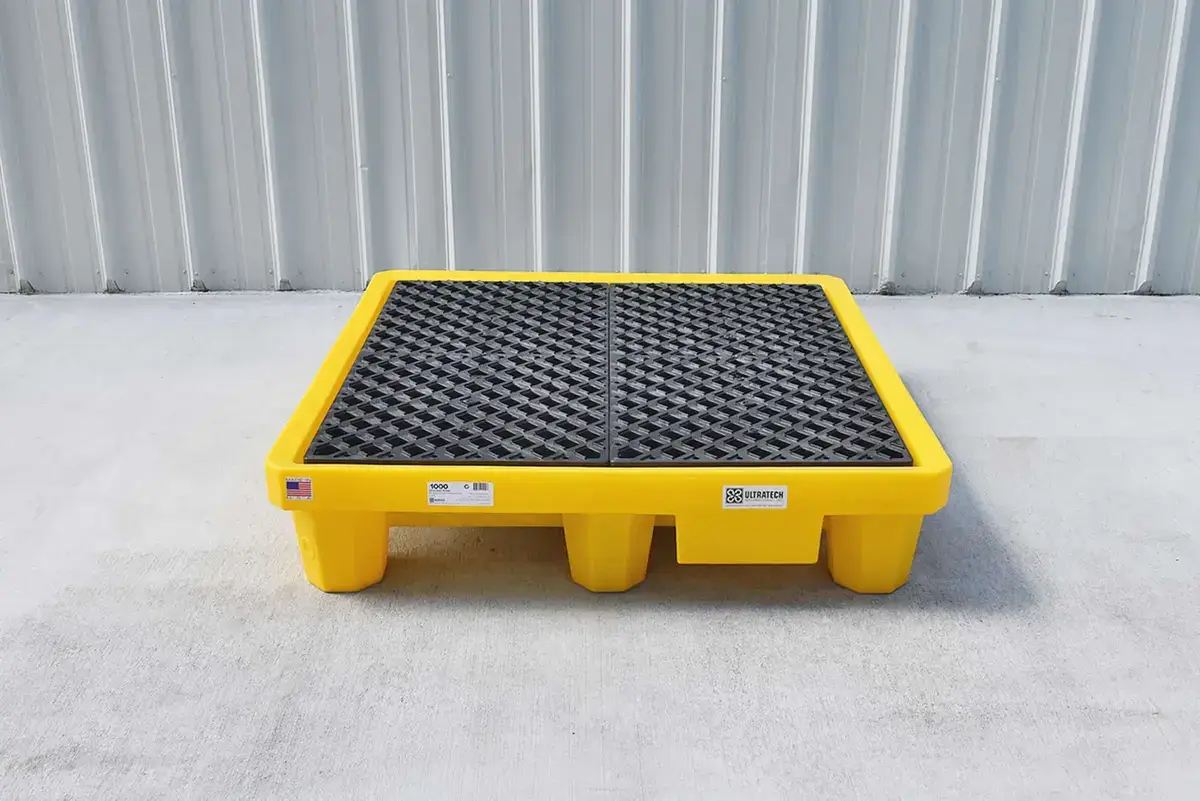

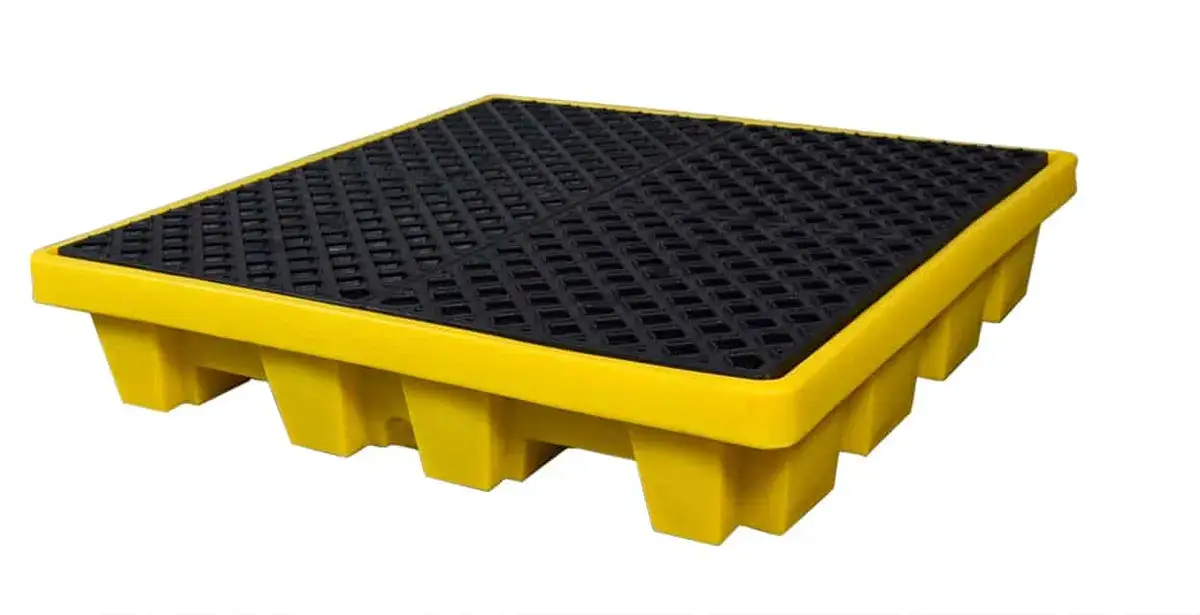

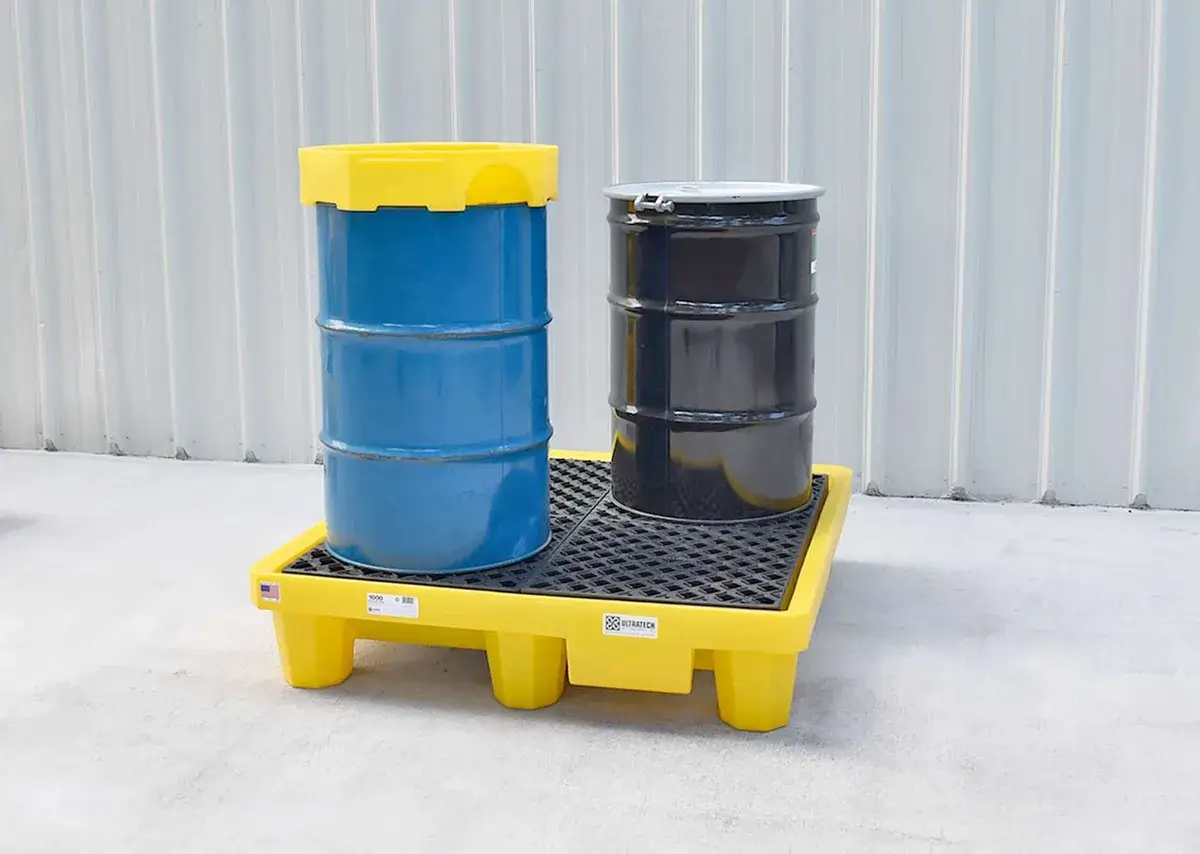

Ultra Spill Pallet

The Ultra Spill Pallet provides secondary spill containment for 55 gallon drums.

The Spill Pallets provide spill containment for up to 4 drums on a each pallet.

Polyethylene designed spill pallets provide chemical resistance to a wide range of chemicals.

Spill Pallet Types:

• Economy - Lower cost / holds 2 or 4 drums / recycled resin / black color
• Standard - Holds 2 or 4 drums / yellow poly / higher weight capacity

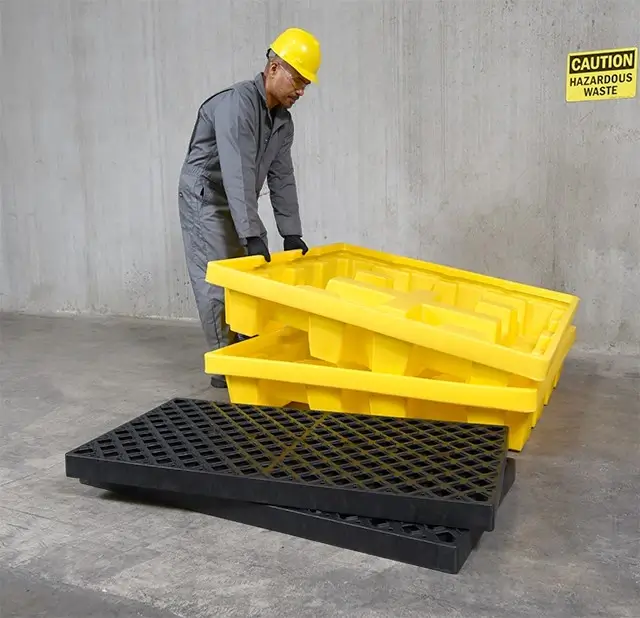

• Nestable - Holds 4 drums / yellow poly / allows sumps to nested on top of each other to maximize shipping and storage space.

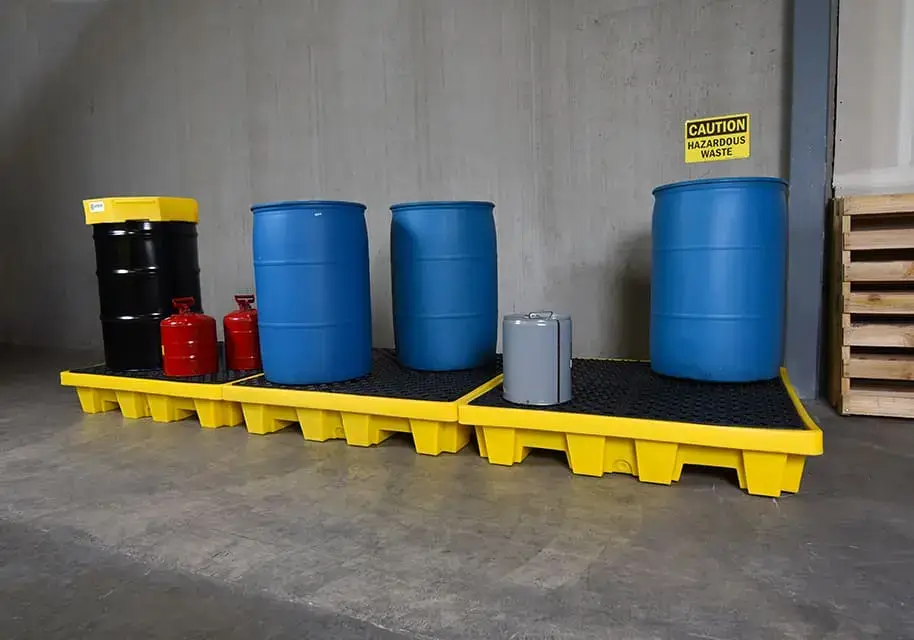

• Plus - Holds 1 to 4 drums / low profile / yellow poly / highest weight capacity

Drain Types:

• No Drain - no drain included on spill pallet.
• With Drain - Threaded sidewall drain with 3/4" polyethylene plug with NPT threads.

Optional Add Ons:

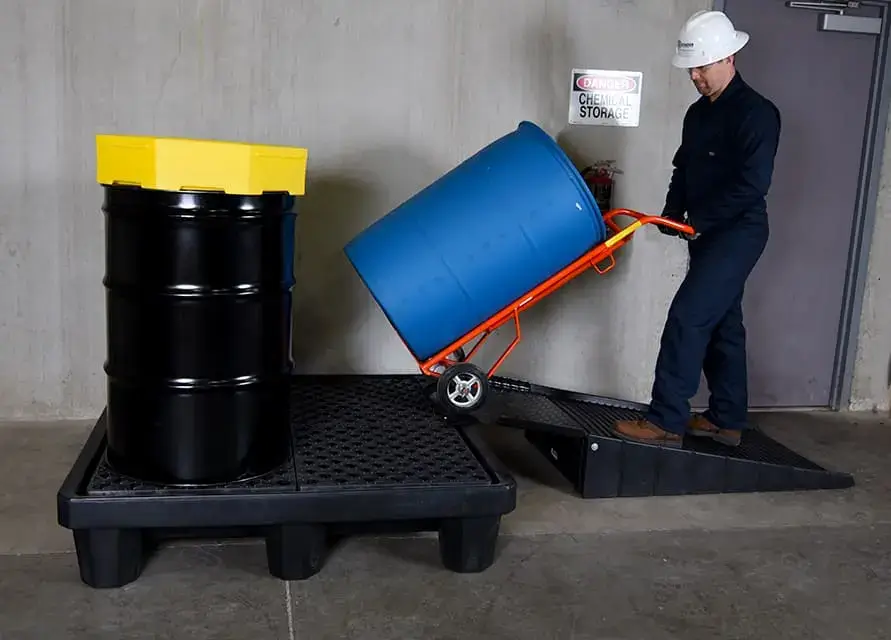

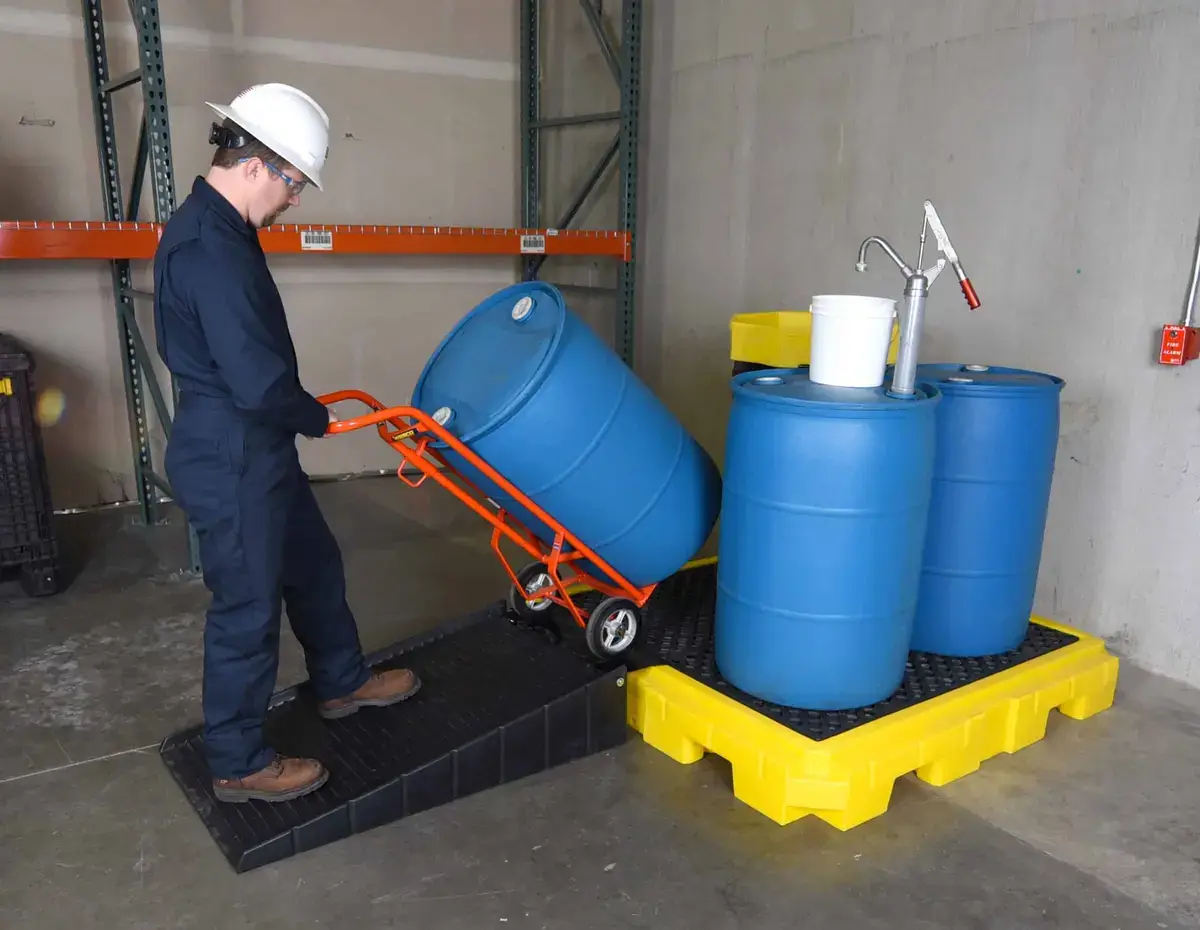

• Ramp (P4 & P1 Plus) - works for P4 (economy, standard or nestable) or the P1 Plus spill pallet models.
• Ramp (P2 Plus, P3 Plus or P4 Plus) - works for the Plus Models (P2, P3, P4).
• Pullover Cover (P2) - works for P2 (economy, standard, or nestable).
• Pullover Cover (P4) - works for P4 (economy, standard, or nestable).

Economy Features:

• Low cost recycled resin design for 2 or 4 drums.
• Black color hides grime and dirt.

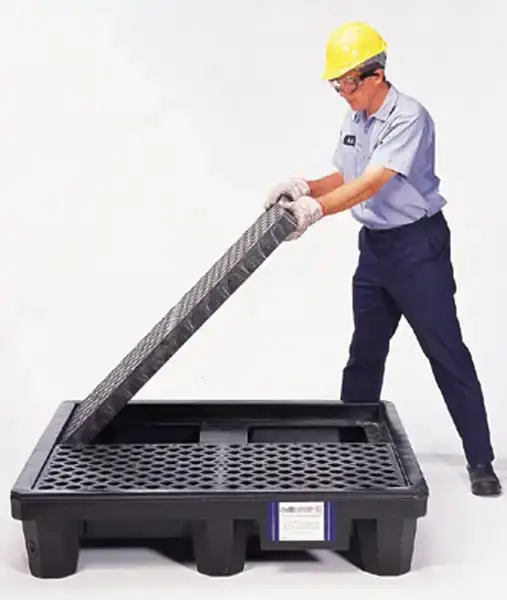

• Removable grating makes cleanup easy.
• Meets SPCC & EPA Spill Containment Regulations.

• 5 year Manufacturer Warranty.

Standard Features:

• Bright yellow polyethylene design for 2 or 4 drums.
• High weight load capacity.
• Removable grating makes cleanup easy.
• Meets SPCC & EPA Spill Containment Regulations.

• 5 year Manufacturer Warranty.

Nestable Features:

• Bright yellow polyethylene design for 4 drums.

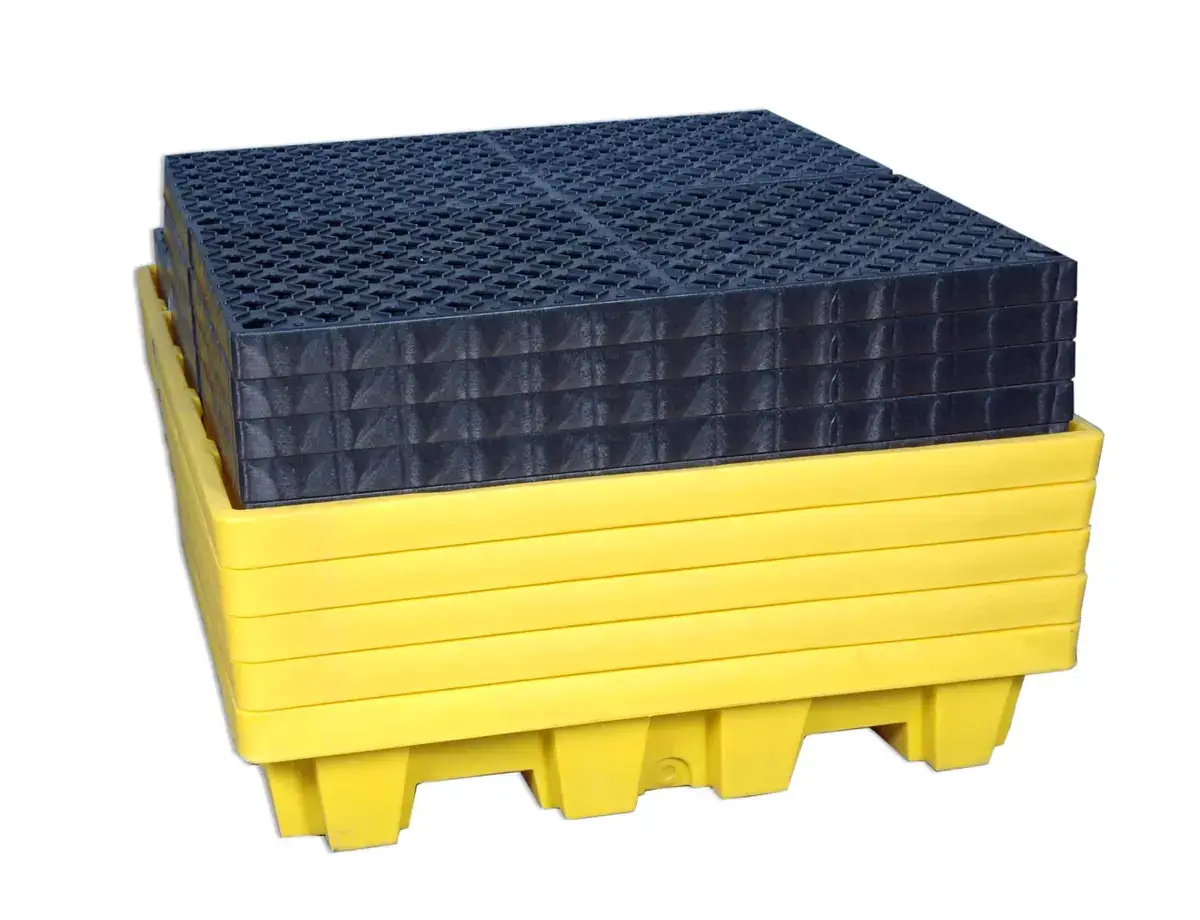

• Nestable design allows multiple pallets to be shipped or stored in a minimal amount of space.

• Removable grating makes cleanup easy.
• Meets SPCC & EPA Spill Containment Regulations.

• 5 year Manufacturer Warranty.

Plus Features:

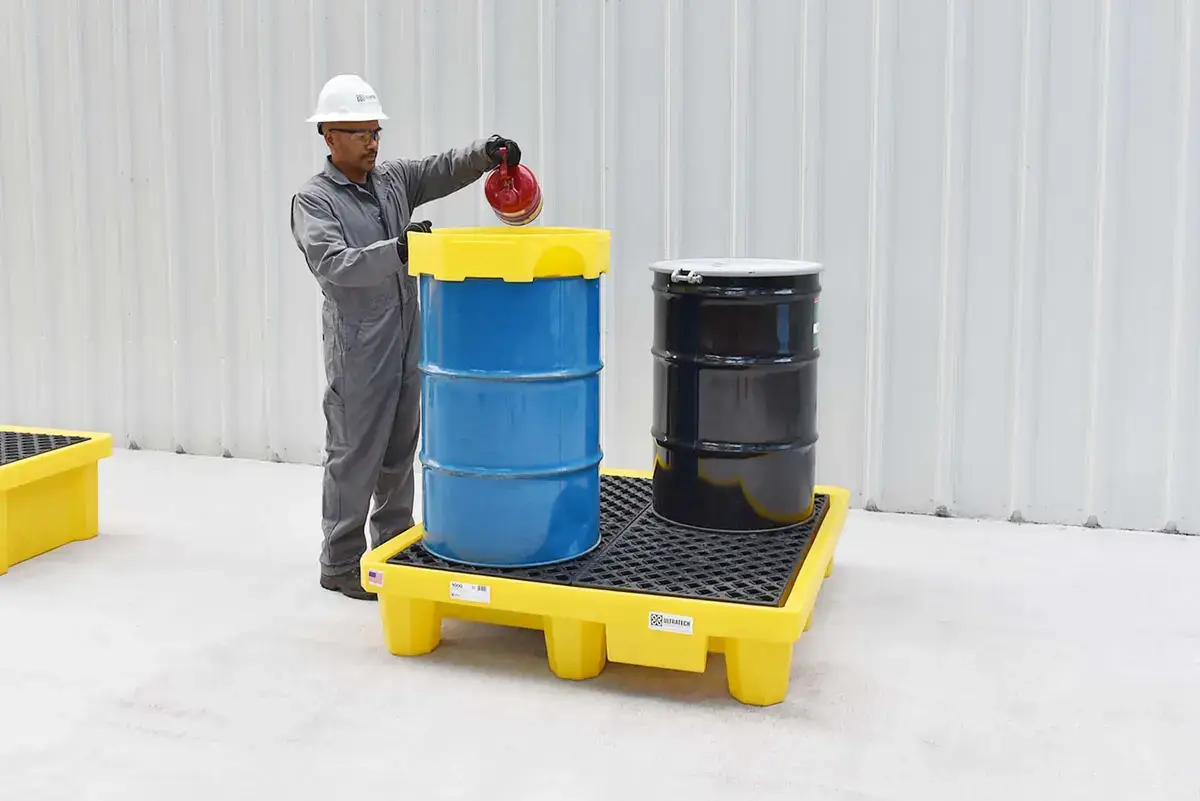

• Low profile (8 3/4") containment pallet positions drum top funnels at safe, convenient level to pour hazardous waste.
• Nearly 50% lower than standard spill pallets, drum handling is safer and less cumbersome.
• Removable grates feature a non-slip surface.
• Superior weight capacity.
• Meets SPCC & EPA Spill Containment Regulations.

• 5 year manufacturer warranty.

Spill Pallet Spec Sheets:

• P2 Economy Specs
• P4 Economy Specs
• P2 Standard Specs
• P4 Standard Specs
• P4 Nestable Specs
• P1 Plus Specs
• P2 Plus Specs
• P3 Plus Specs
• P4 Plus Specs

Ramp & Pullover Cover Spec Sheets:

• Ramp (P1 & P4 Plus) Specs
• Ramp (P2 Plus, P3 Plus, P4 Plus) Specs
• Pullover Cover specs


Spill Pallet Chemical Compatibility / Maintenance:

• Spill Pallet Chemical Guide - Molded Polyethylene
• Spill Pallet Care & Maintenance Guide

Available Sizes & Dimensions:

P2 Economy:

• Containment Capacity: 66 gallons
• Number of Drums: up to 2
• Dimensions: 53"L x 29"W x 16.5"H
• Grating Surface: 48"L x 24"W
• Weight: 63 pounds
• Weight Capacity: 1,200 pounds
• Drain: Optional
• Ramp: no
• Fork Lift Slots: Yes

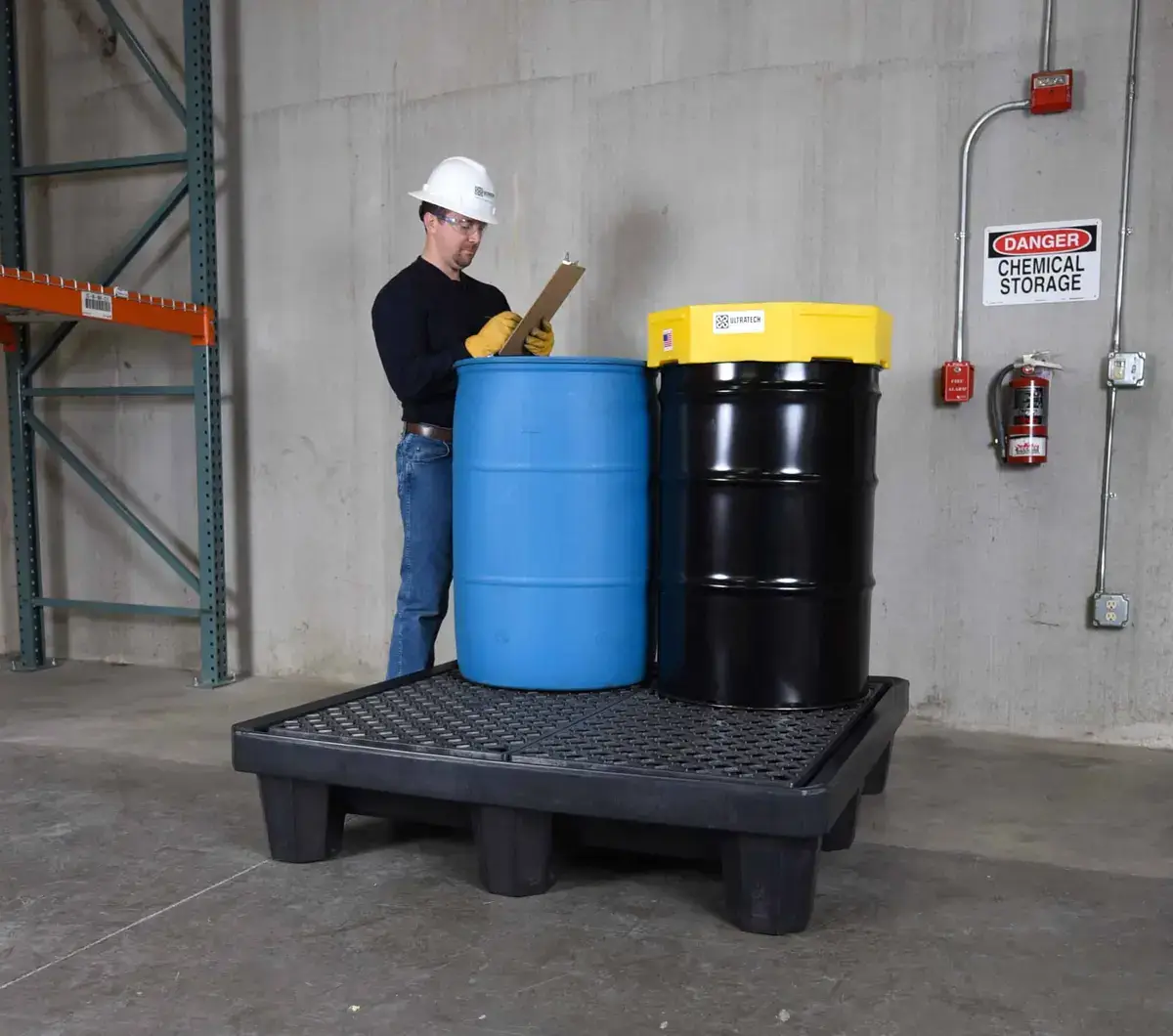

P4 Economy:

• Containment Capacity: 66 gallons
• Number of Drums: up to 4
• Dimensions: 53"L x 53"W x 11.8"H
• Grating Surface: 48"L x 48"W
• Weight: 85 pounds
• Weight Capacity: 3,000 pounds
• Drain: Optional
• Ramp: Optional
• Fork Lift Slots: Yes

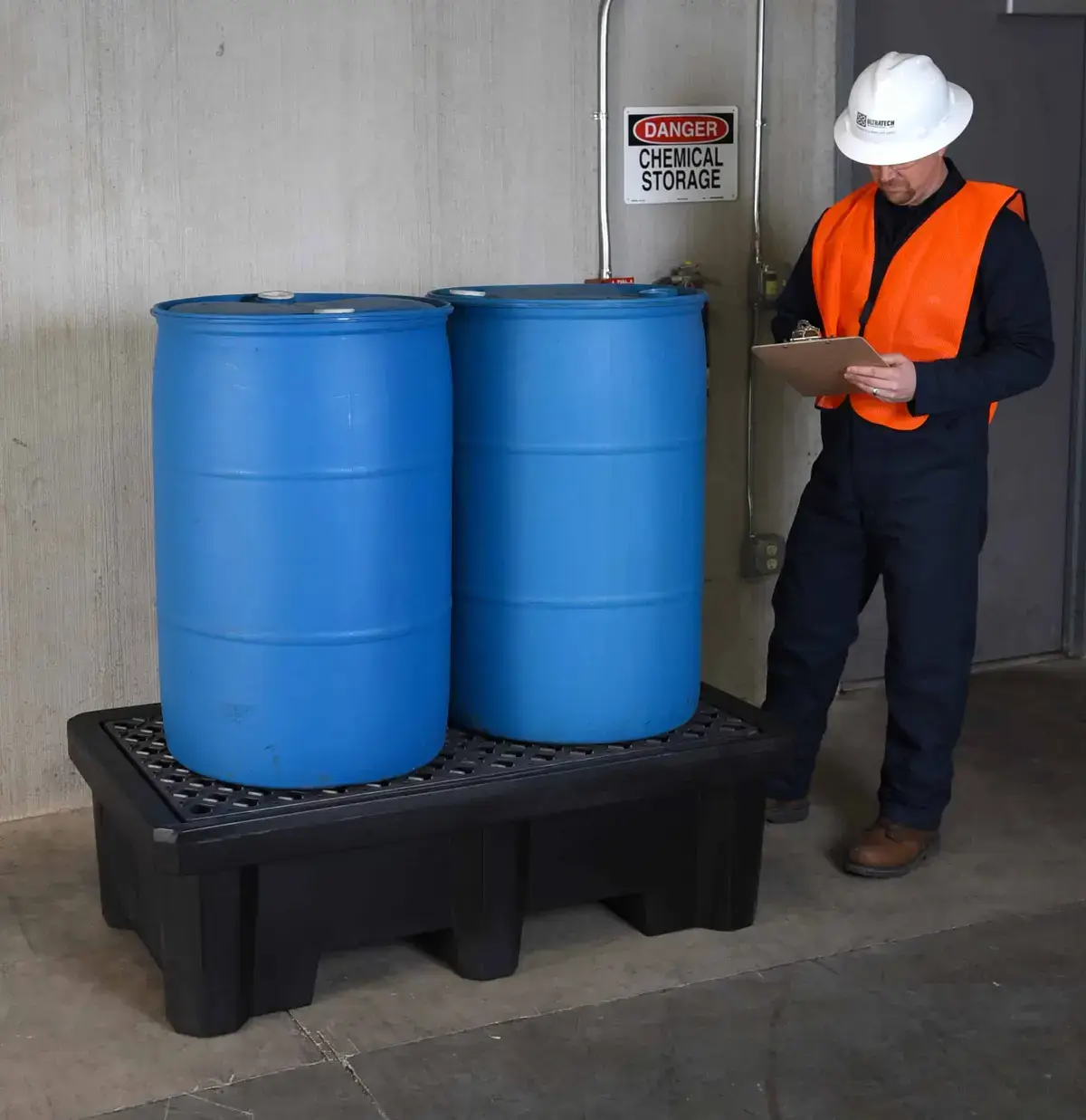

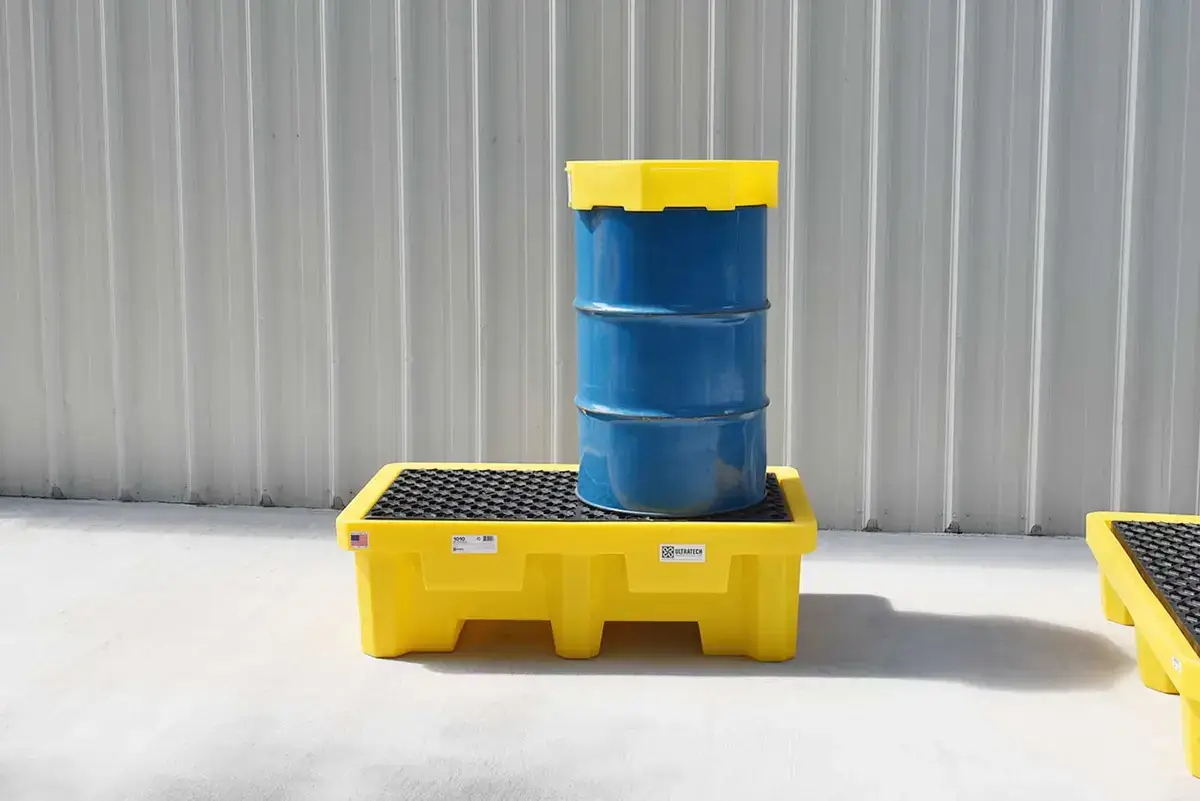

P2 Standard:

• Containment Capacity: 66 gallons
• Number of Drums: up to 2
• Dimensions: 53"L x 29"W x 16.5"H
• Grating Surface: 48"L x 24"W
• Weight: 63 pounds
• Weight Capacity: 3,000 pounds
• Ramp: No
• Drain: Optional
• Fork Lift Slots: Yes

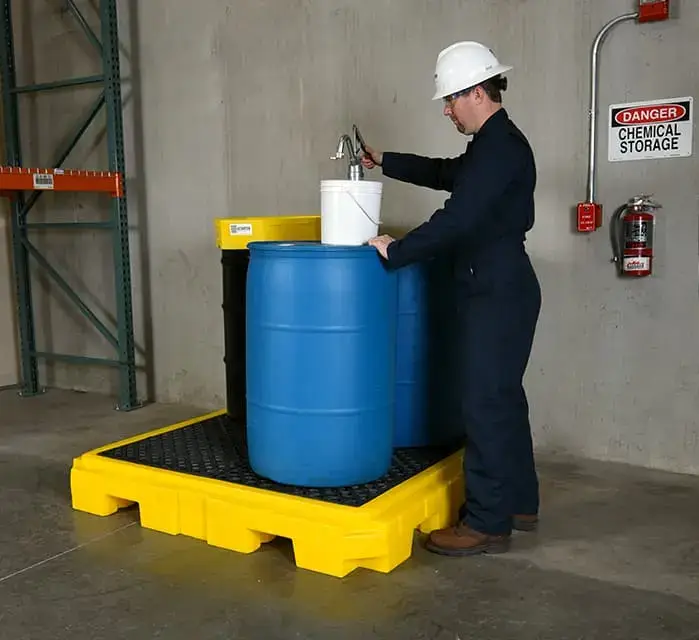

P4 Standard:

• Containment Capacity: 66 gallons
• Number of Drums: up to 4
• Dimensions: 53"L x 53"W x 11.8"H
• Grating Surface: 48"L x 48"W
• Weight: 90 pounds
• Weight Capacity: 6,000 pounds
• Ramp: Optional
• Drain: Optional
• Fork Lift Slots: Yes

P4 Nestable:

• Containment Capacity: 66 gallons
• Number of Drums: up to 4
• Dimensions: 51"L x 51"W x 10"H
• Grating Surface: 48"L x 48"W
• Weight: 80 pounds
• Weight Capacity: 6,000 pounds
• Ramp: Optional
• Drain: Optional
• Fork Lift Slots: Yes

P1 Plus:

• Containment Capacity: 62 gallons
• Number of Drums: 1
• Dimensions: 40"L x 40"W x 12"H
• Grating Surface: 26"L x 26"W
• Weight: 51 pounds
• Weight Capacity: 800 pounds
• Ramp: Optional
• Drain: Optional
• Fork Lift Slots: Yes

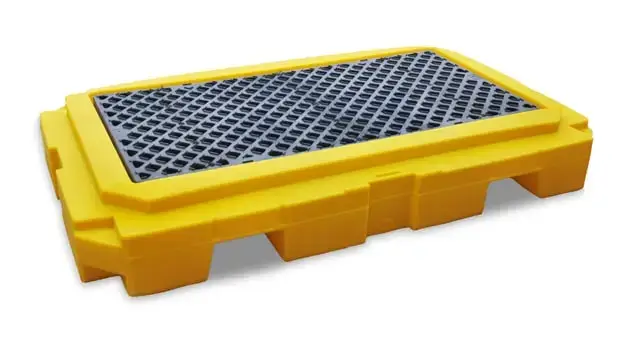

P2 Plus:

• Containment Capacity: 66 gallons
• Number of Drums: up to 2
• Dimensions: 66.5"L x 40"W x 8.8"H
• Grating Surface: 52"L x 26"W
• Weight: 88 pounds
• Weight Capacity: 4,500 pounds
• Ramp: Optional
• Drain: Optional
• Fork Lift Slots: Yes

P3 Plus:

• Containment Capacity: 66 gallons
• Number of Drums: up to 3
• Dimensions: 83"L x 35"W x 9"H
• Grating Surface: 72"L x 24"W
• Weight: 90 pounds
• Weight Capacity: 4,500 pounds
• Ramp: Optional
• Drain: Optional
• Fork Lift Slots: Yes

P4 Plus:

• Containment Capacity: 75 gallons
• Number of Drums: up to 4
• Dimensions: 62"L x 62"W x 8.8"H
• Grating Surface: 52"L x 52"W
• Weight: 140 pounds
• Weight Capacity: 9,000 pounds
• Ramp: Optional
• Drain: Optional
• Fork Lift Slots: Yes

Additional Options:

• Check other Ultra Spill Containment options or other Secondary Containment for 55 gallon drums.
