Ultratech Mini Containment Berm

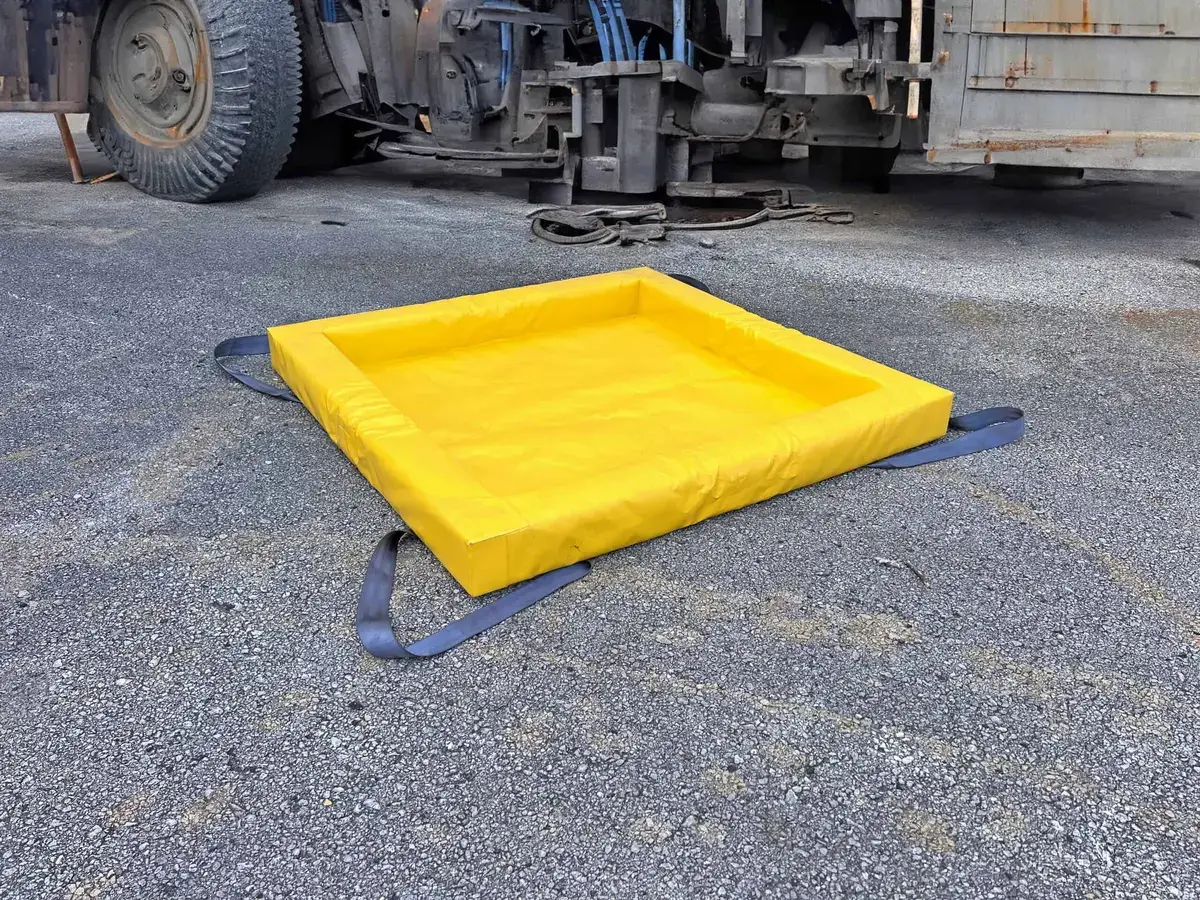

Ultratech's duck pond spill containment berm is a lightweight, portable foam wall berm designed for rapidly catching smaller leaks and drips from equipment.

The duck pond spill berms provide containment capacity ranging from 15 gallons to 134 gallons.

Applications:

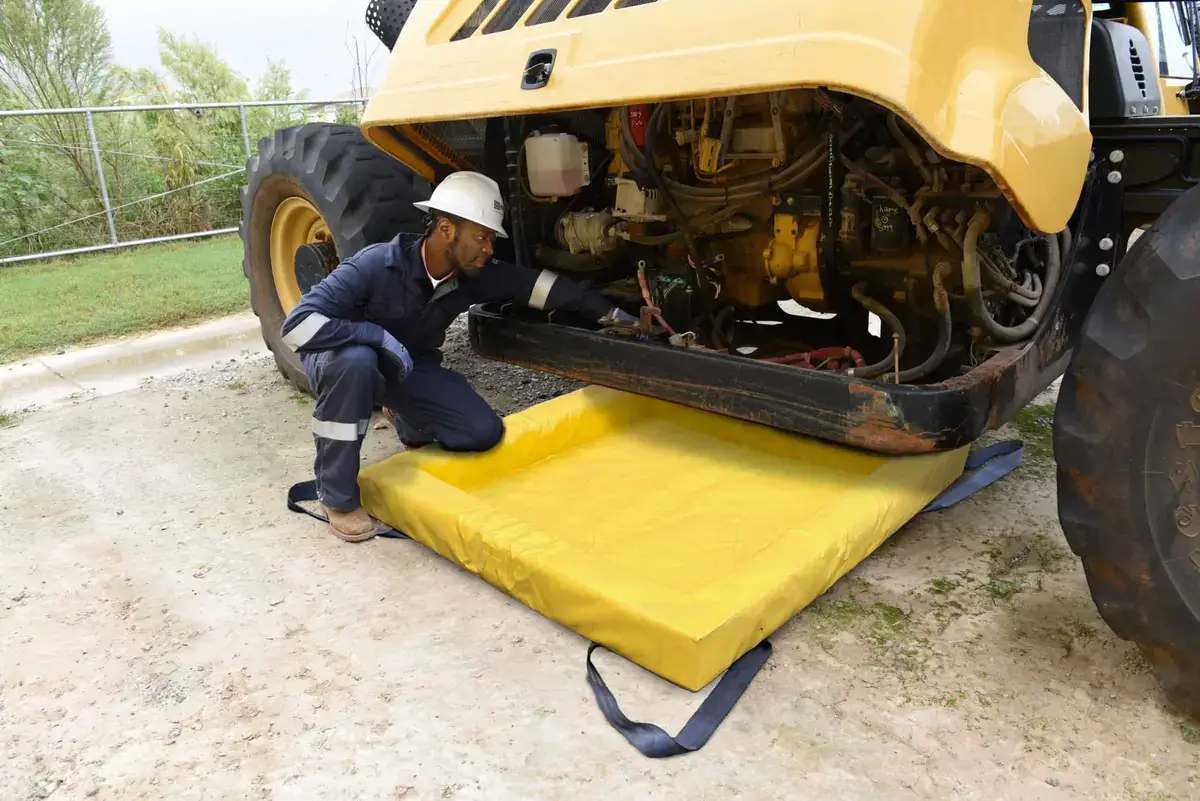

The duck pond spill berms are easy to store, transport and deploy, making them ideal spill containment for multiple applications including vehicle maintenance, industrial machinery, workshops, garages, fuel transfers, chemical storage, portable generators, drum storage, laboratory settings, battery storage, air compressors, and painting.

Spill Containment Types:

• Duck Pond Model - 6 inch foam side walls that can be driven over.
• Duck Pond XC Model - 4 inch side walls designed for use in extreme cold temperatures.

Compliance Standards:

• Meets EPA Container Storage Regulation 40 CFR 264.175
• Meets SPCC - Spill Prevention, Control & Countermeasure Act

Available Liner:

• Duck Pond - 22 oz PVC
• Duck Pond XC - 22 oz (31 mil) EVA designed for extreme cold

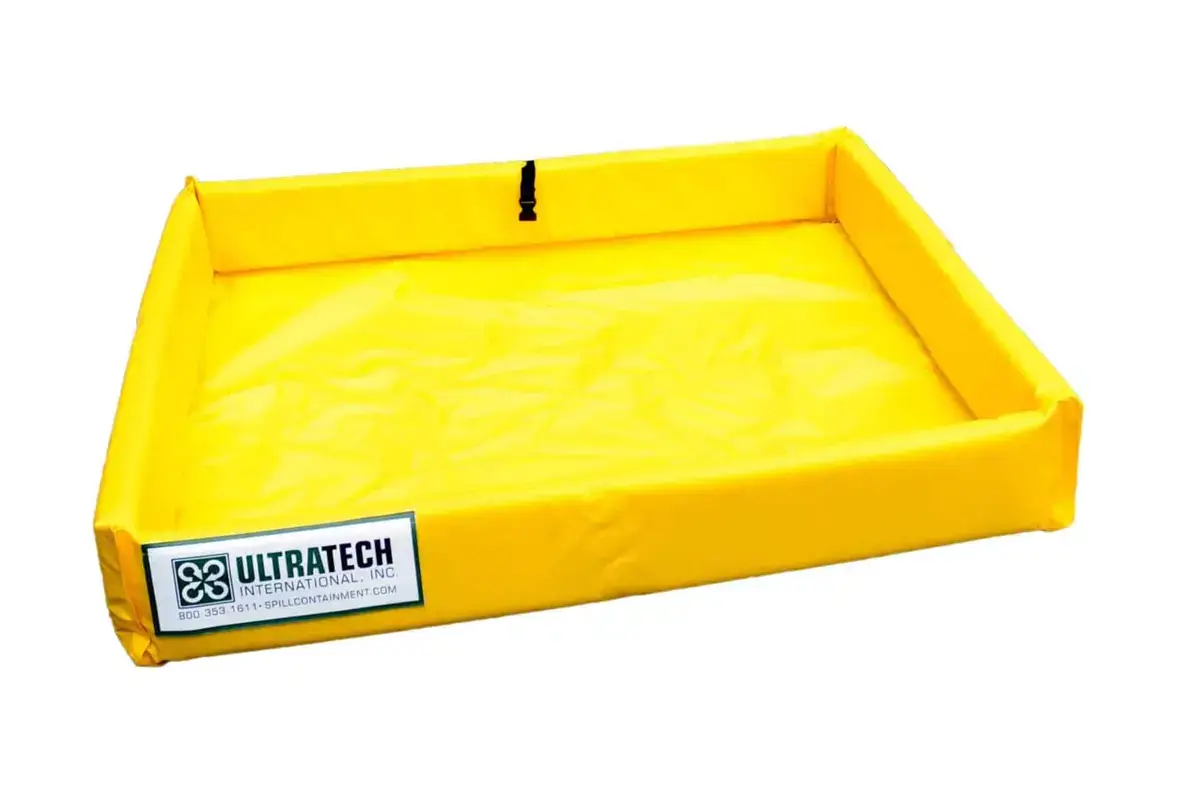

Duck Pond Model Features:

• No setup required; can be deployed in seconds.
• 6 inch sidewalls.
• 22 oz PVC liner.
• Foldable and secured using the attached strap for simple transport & storage.
• Foam sidewalls that can be driven over or stepped on.

• 5 year Manufacturer Warranty.

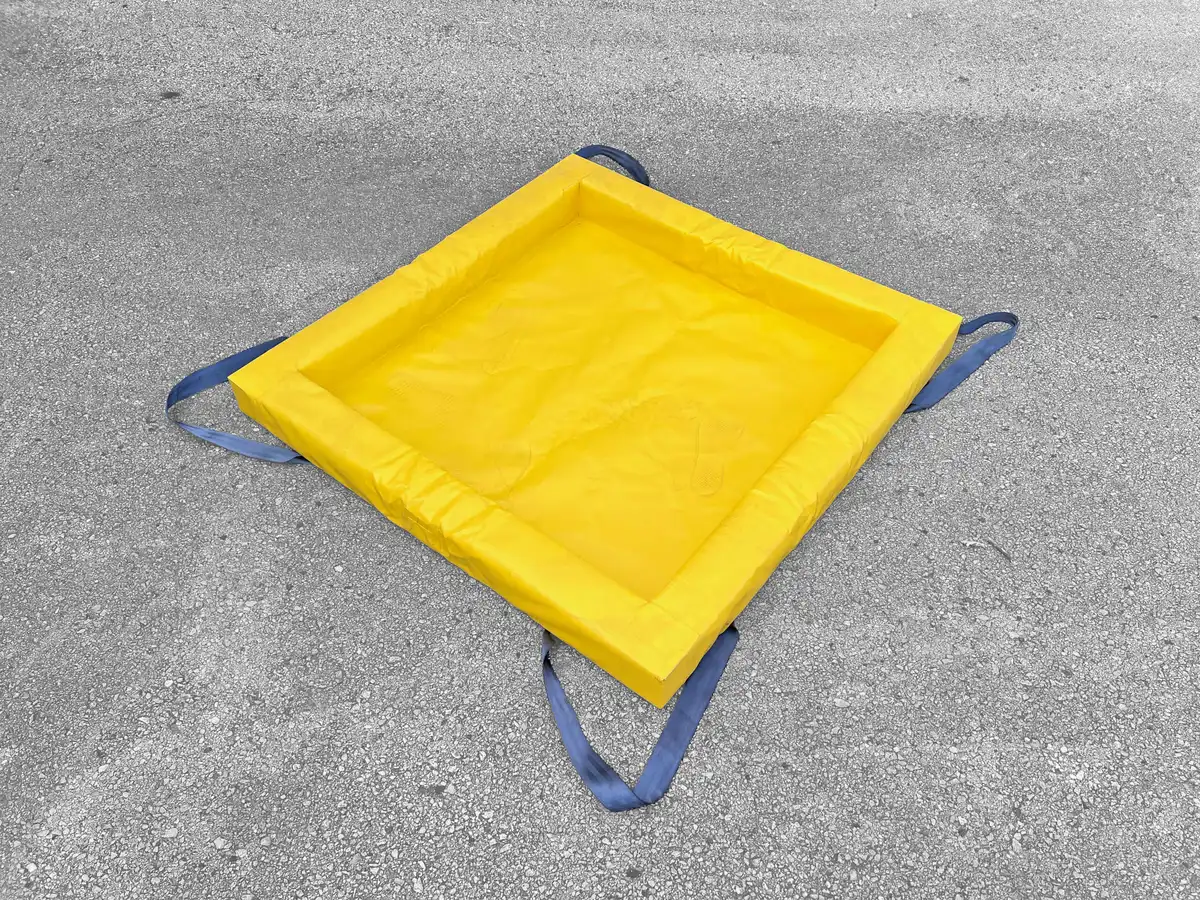

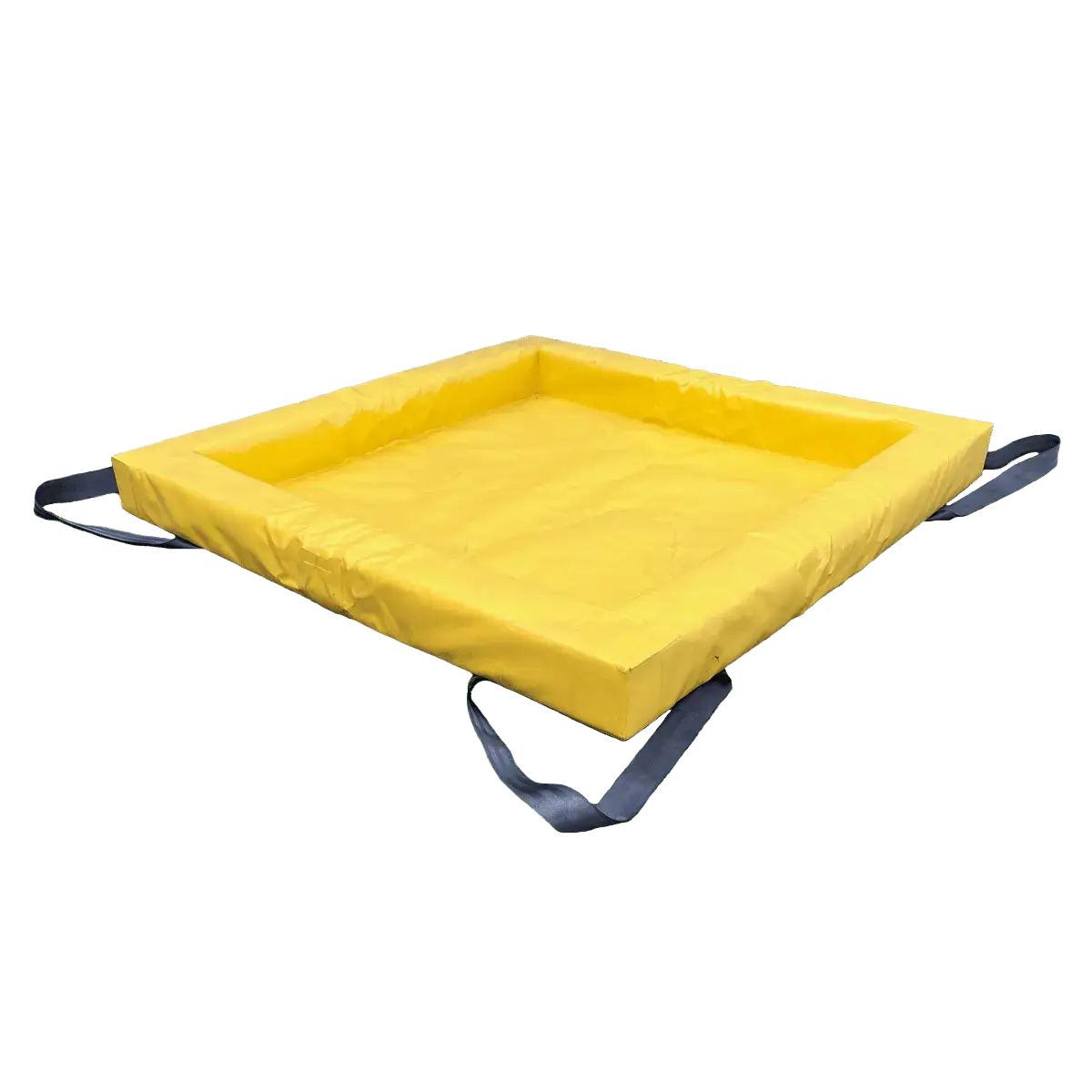

Duck Pond XC Model Features:

• No setup required.

• 22 oz (31 mil) EVA liner designed for use in extreme cold.
• 4 inch soft foam wall compresses for easy loading and off loading.

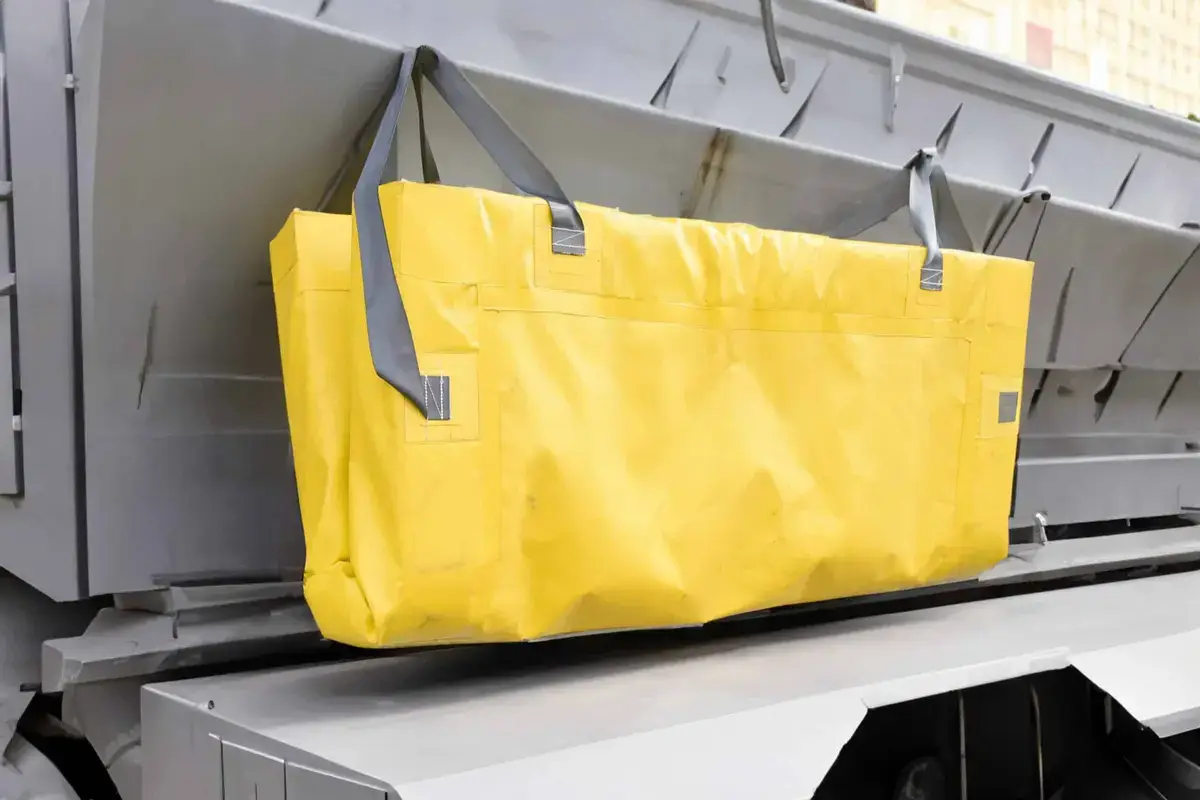

• Built-in 18 inch long handles for transport and storage.

Spec Sheets:

• Duck Pond Model
• Duck Pond XC Model


Berm Chemical Compatibility:

• Duck Pond Model Chemical Guide
• Duck Pond XC Model Chemical Guide

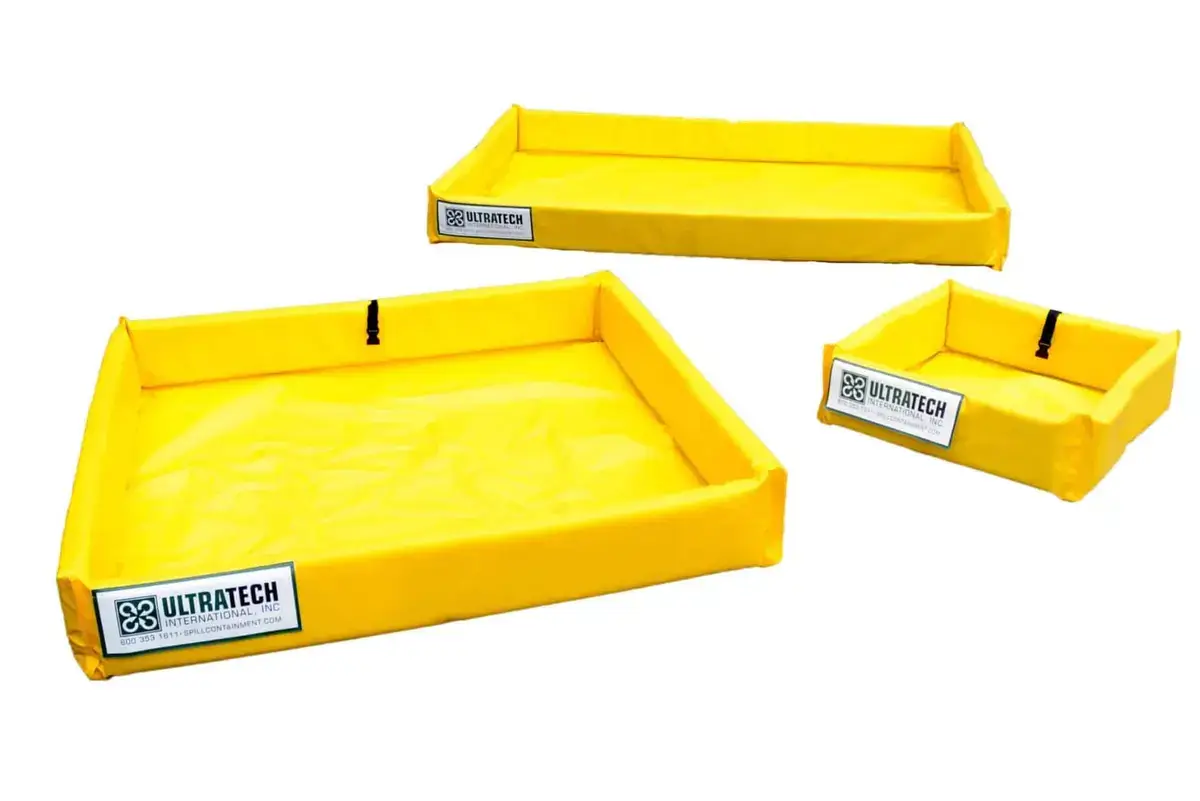

Available Sizes & Dimensions:

Duck Wall Model / 6 inch side wall height:

• 2'x2' - 15 gallon containment capacity / 3 lbs
• 3'x3' - 33 gallon containment capacity / 5 lbs
• 4'x4' - 60 gallon containment capacity / 7 lbs
• 4'x6' - 75 gallon containment capacity / 9 lbs
• 5'x5' - 94 gallon containment capacity / 9 lbs
• 6'x6' - 135 gallon containment capacity / 12 lbs

Duck Wall XC Model / 4 inch side wall height:

• 2'x2' - 9 gallon containment capacity / 6 lbs
• 2'x4' - 19 gallon containment capacity / 8 lbs
• 3'x3' - 22 gallon containment capacity / 8 lbs
• 4'x4' - 39 gallon containment capacity / 11 lbs
• 4'x6' - 59 gallon containment capacity / 15 lbs
• 5'x5' - 62 gallon containment capacity / 15 lbs
• 6'x6' - 89 gallon containment capacity / 19 lbs

Other Options:

• Browse other spill containment tray options or all Ultratech Containment options.
