Ultratech Spill Containment Berm

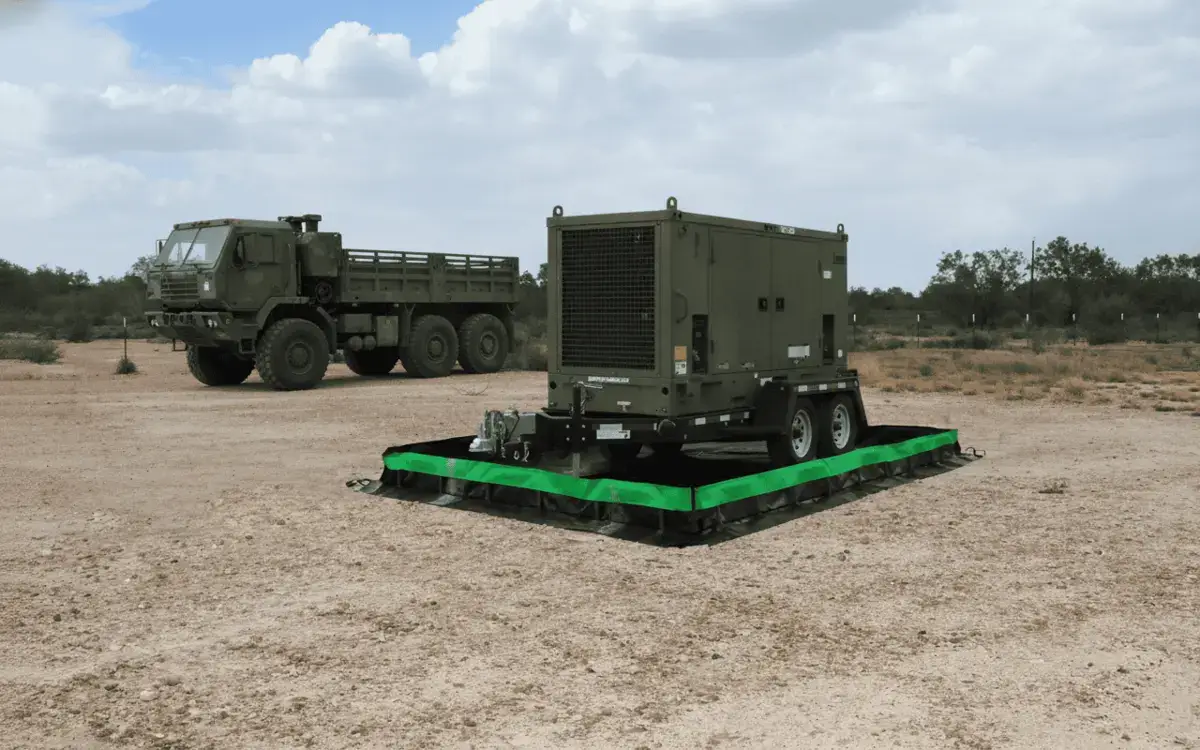

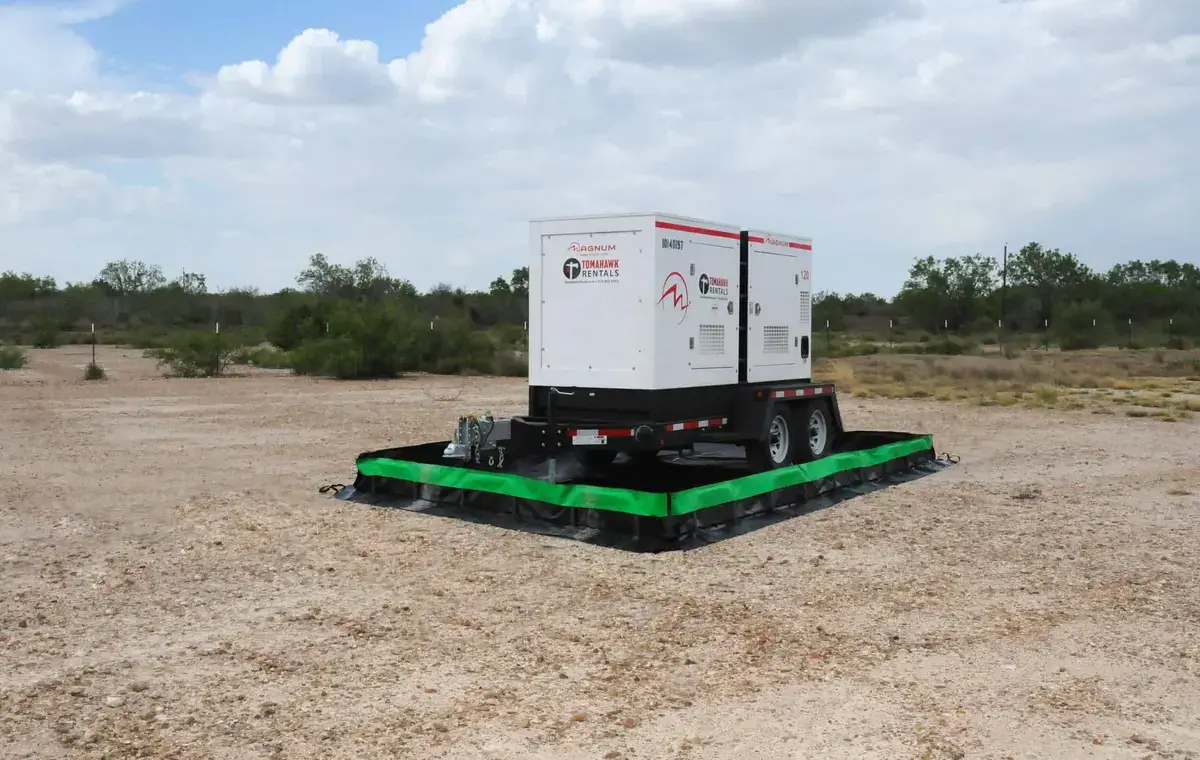

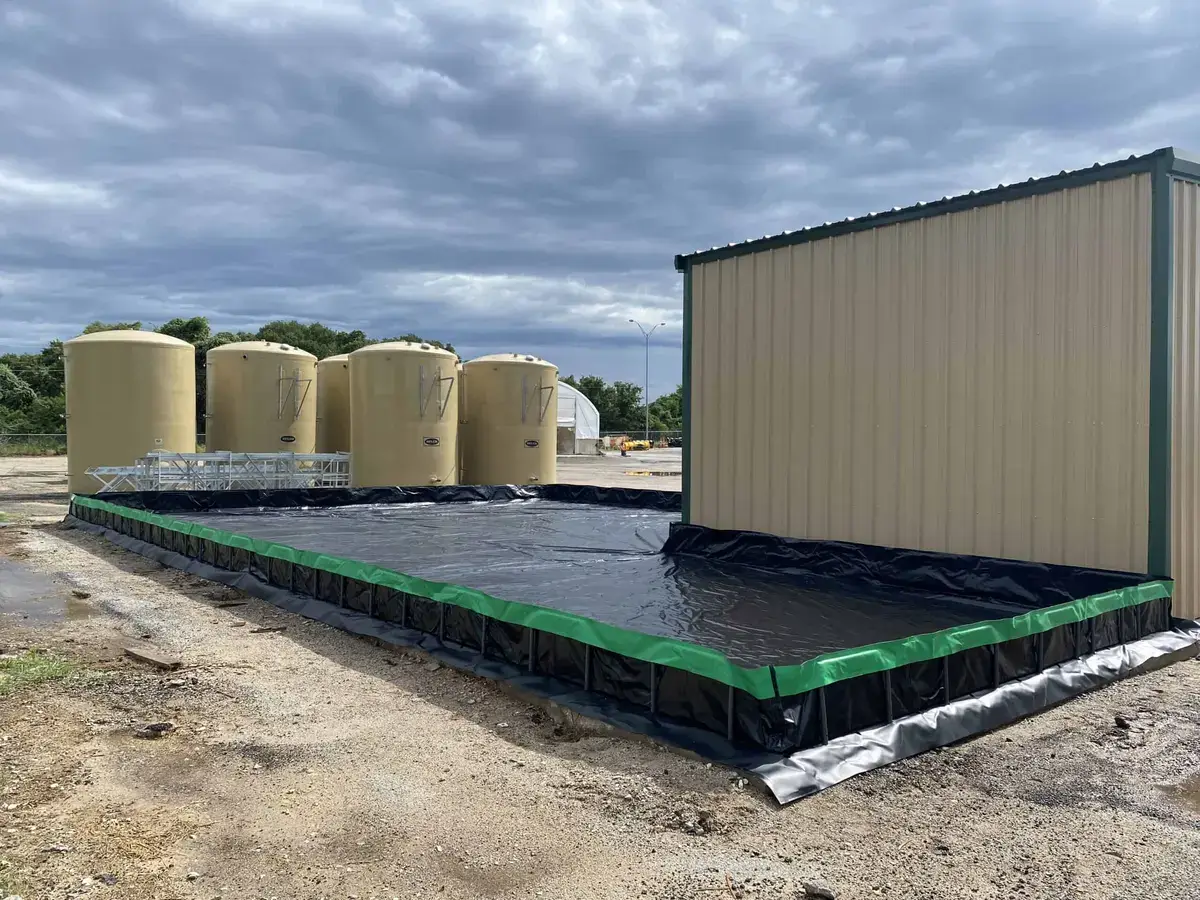

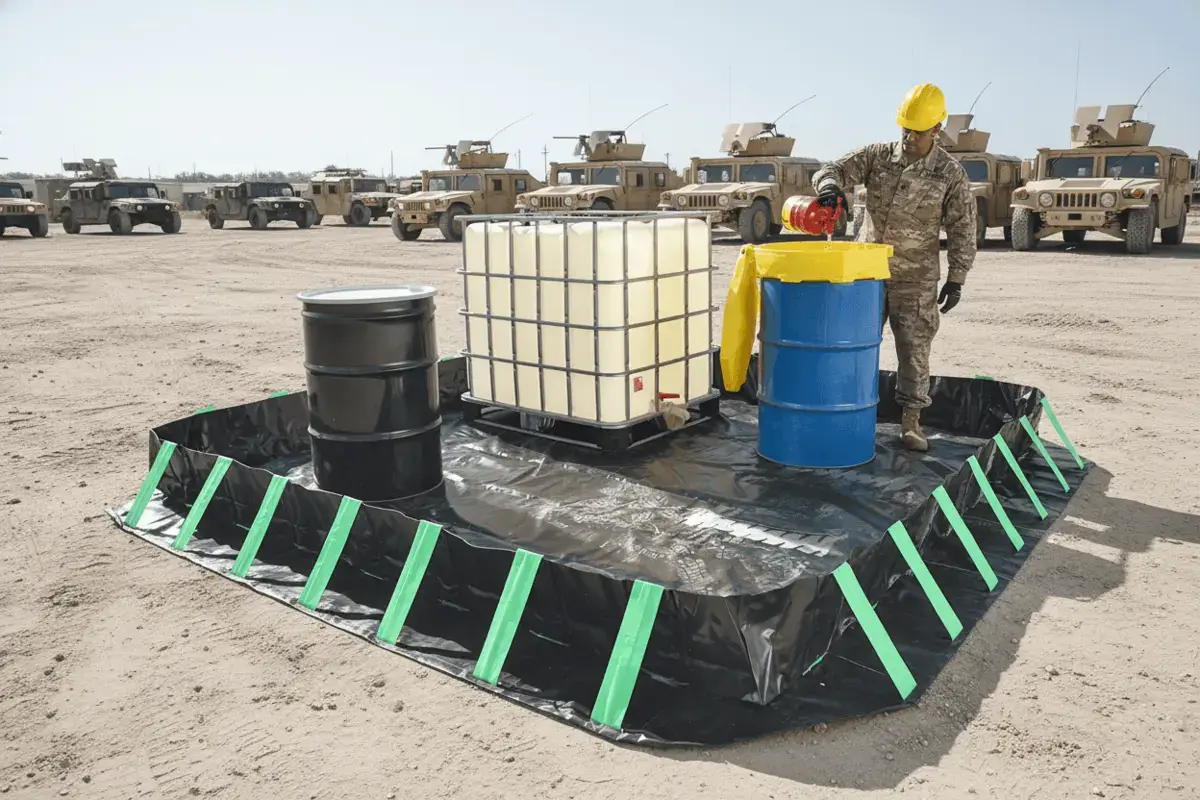

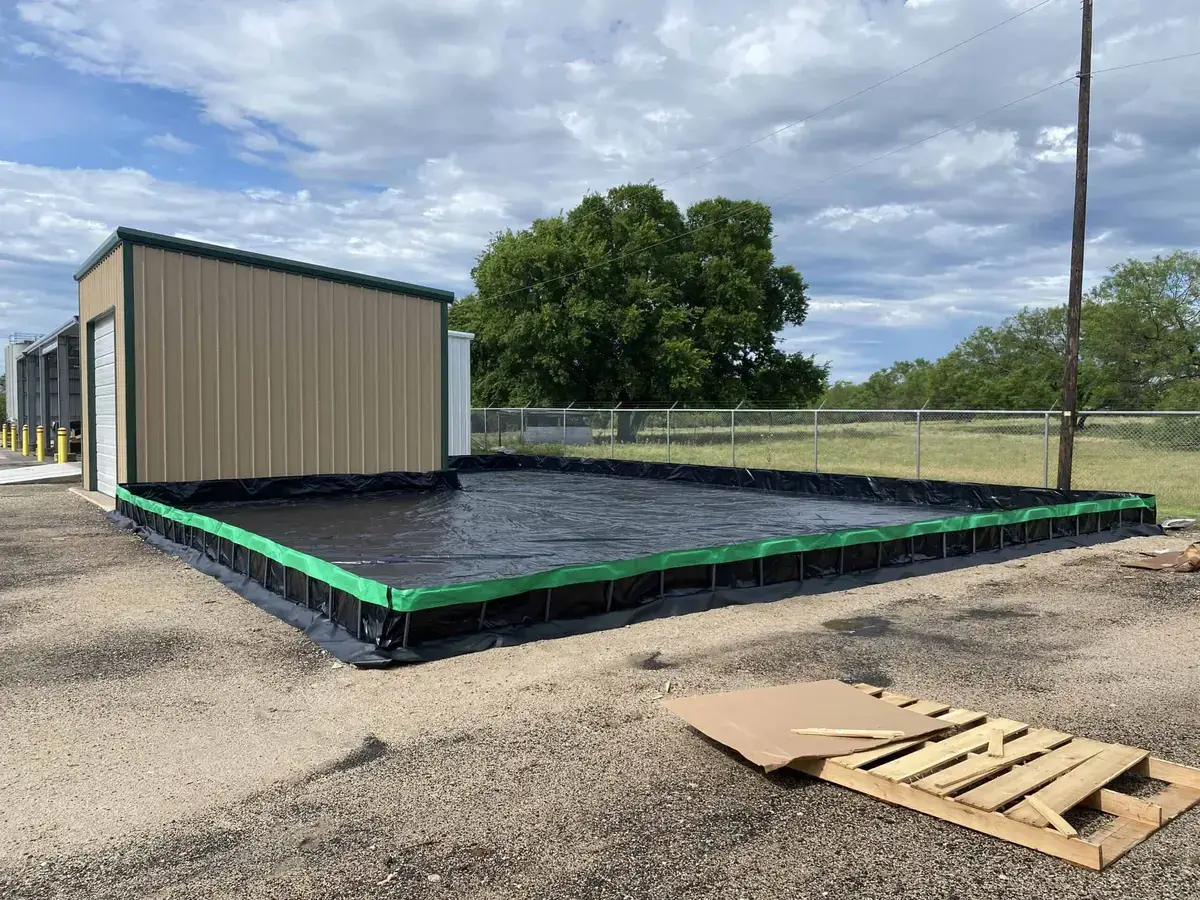

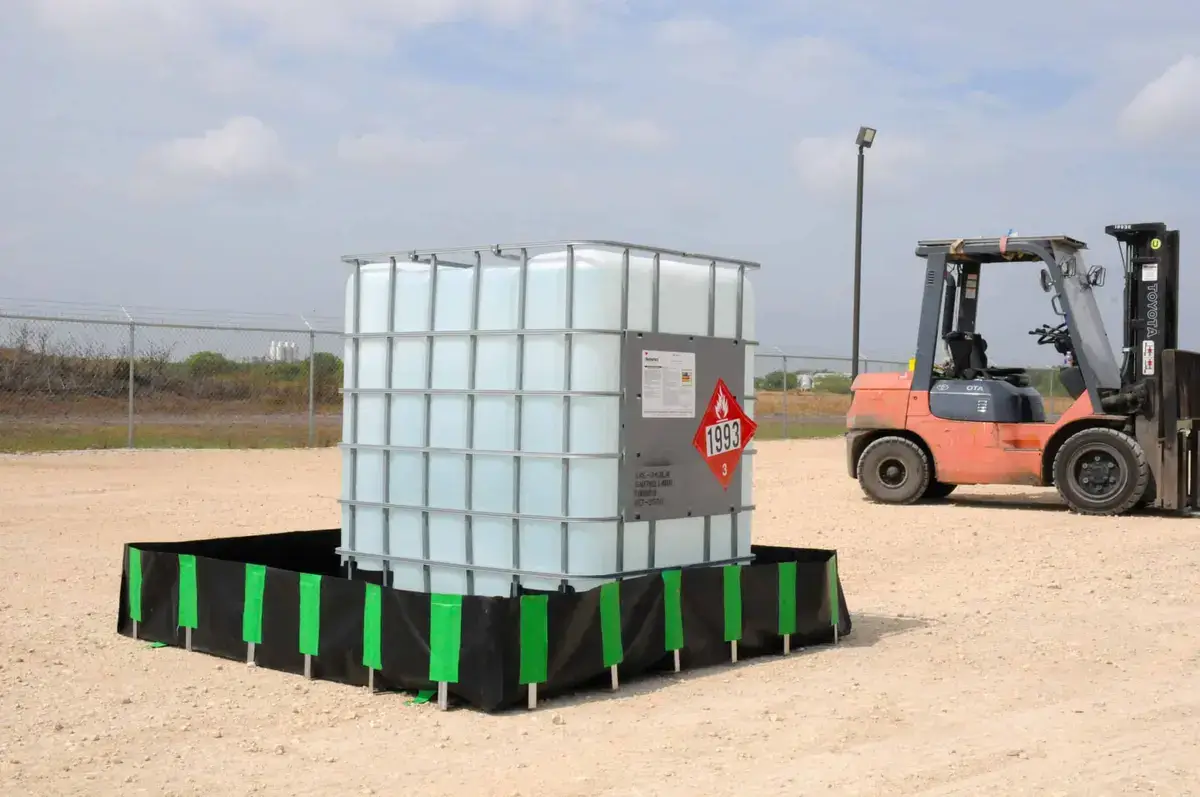

Ultratech's flexible spill containment berms provide portable containment for tanks, generators, compressors and other heavy equipment.

Protects heavy equipment from spills during filling, discharging, cleaning and maintenance.

Spill Containment Types:

• Collapsible Wall Model - 12 inch side walls / swivel feet of PVC supports to raise or lower sidewalls.
• L Bracket Economy Model - 12 inch side walls / L brackets inserted to raise sidewalls.
• Compact Model - 12 inch side walls / aluminum struts inserted in sidewalls.

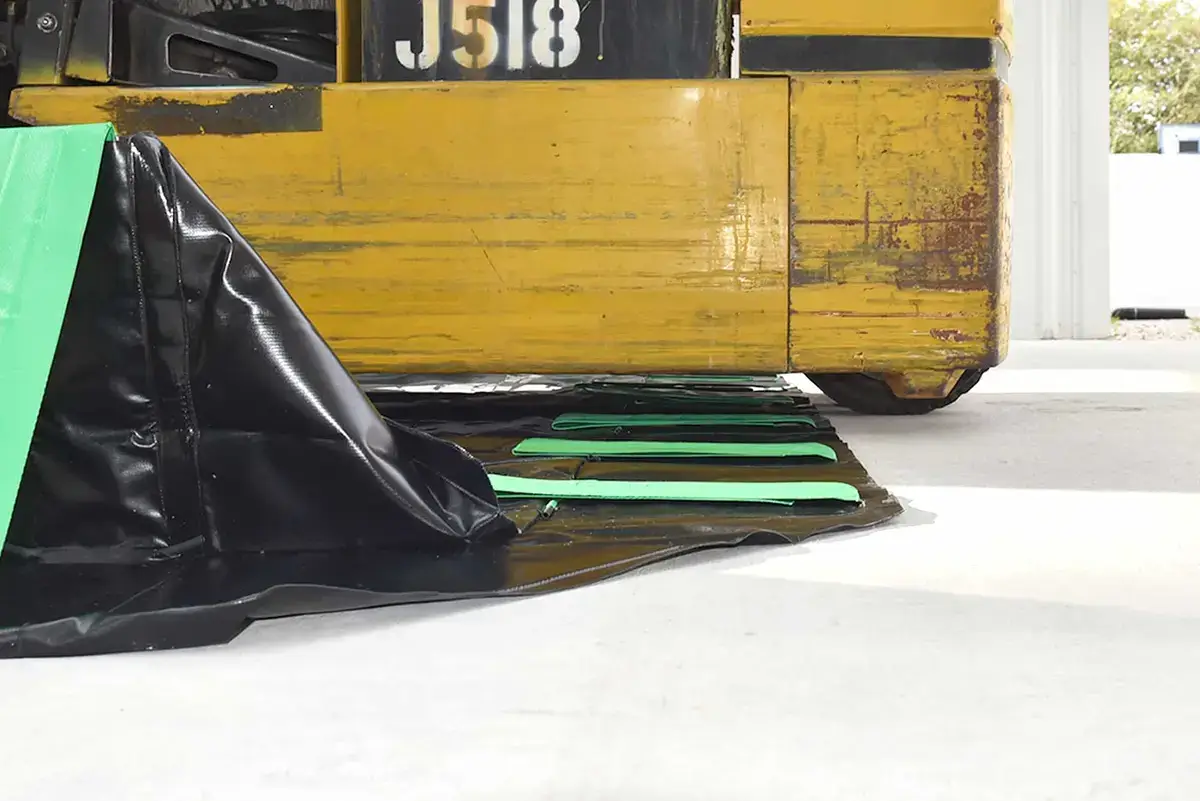

Note: the sidewalls are not designed to be driven over; sidewalls must be manually lowered to ground level in order to drive over with a vehicle.

Compliance Standards:

• Meets EPA Container Storage Regulation 40 CFR 264.175
• Meets SPCC - Spill Prevention, Control & Countermeasure Act

Available Liner:

• Copolymer-2000 - 28 oz

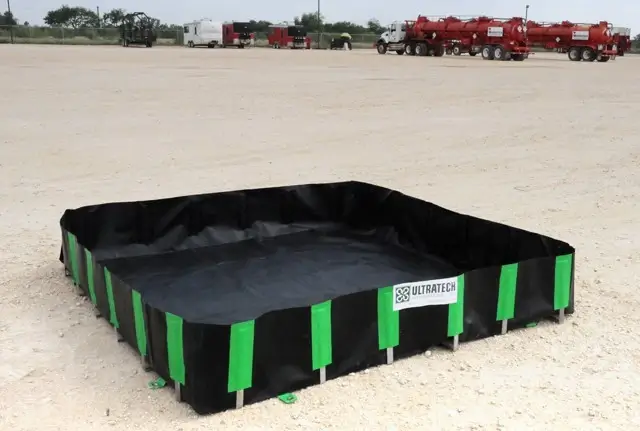

Collapsible Wall Model Features:

• Capture leaks and spills from tanks, generators and other equipment.
• 12 inch sidewalls.
• Rugged PVC sidewall assemblies for sidewall support.
• Simply swivel the feet of the PVC supports to lower or raise the sidewalls in seconds.

• Optional self bailer to keep rainwater out of the berm.

• 5 year Manufacturer Warranty.

L Bracket Economy Model Features:

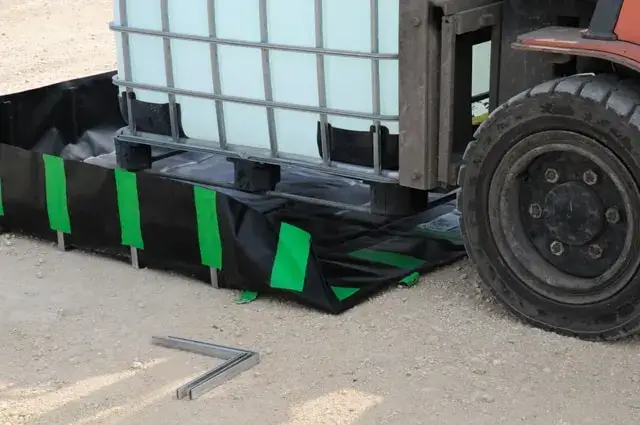

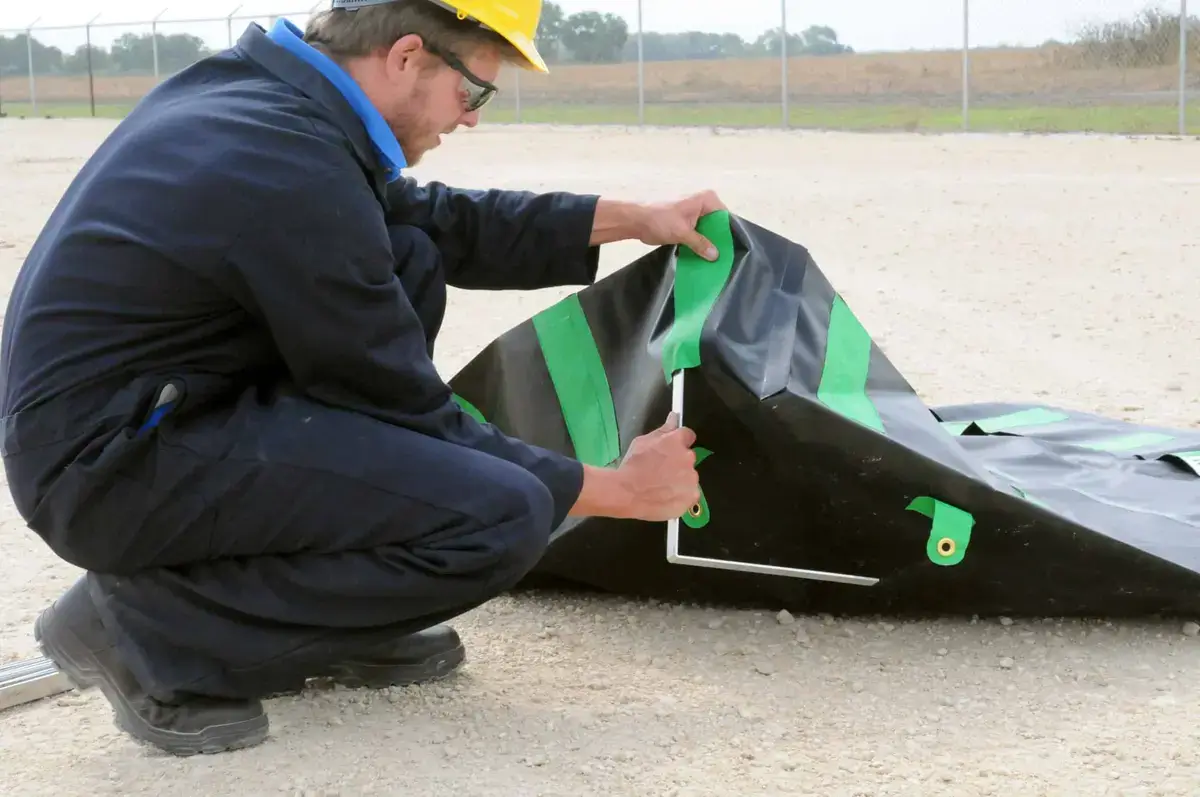

• L-Shaped aluminum brackets provide sturdy sidewall support.

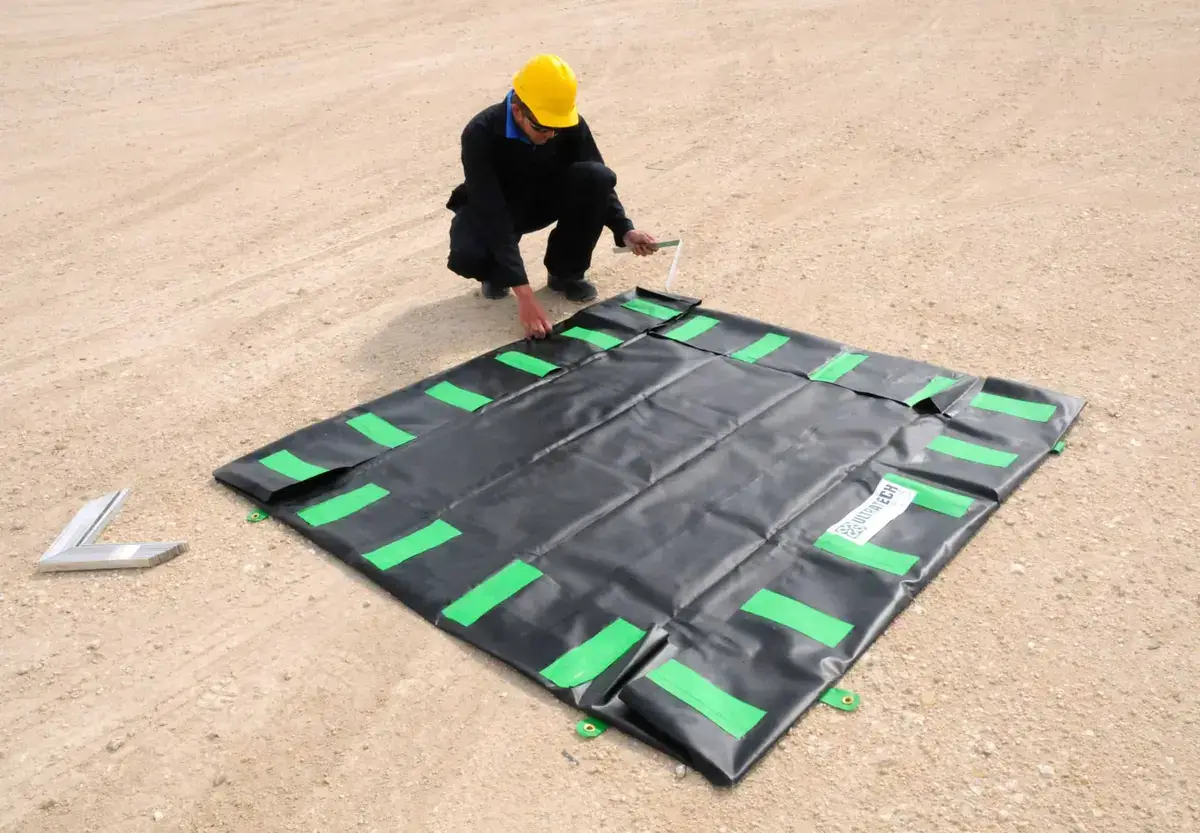

• Easy setup; brackets are quickly and easily inserted into sleeves spaced around the perimeter of the berm.
• No frames, components or extra material outside of the sidewall.

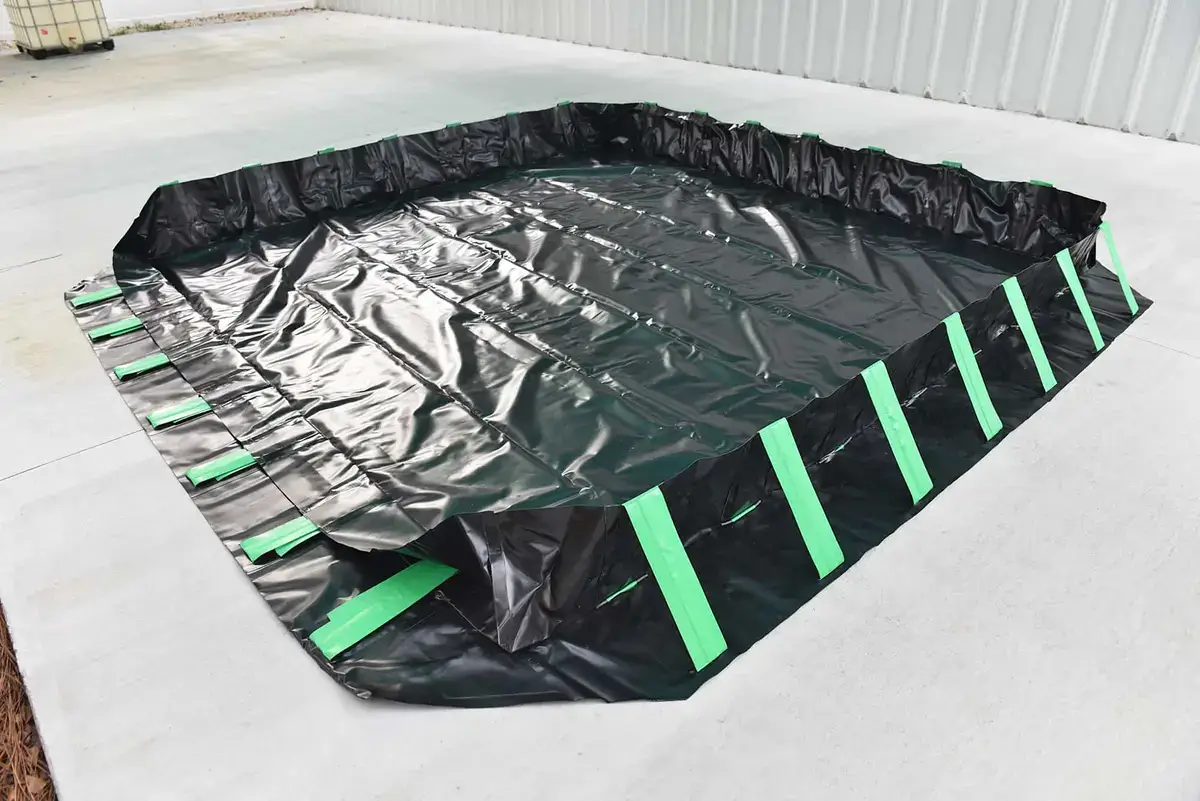

Compact Model Features:

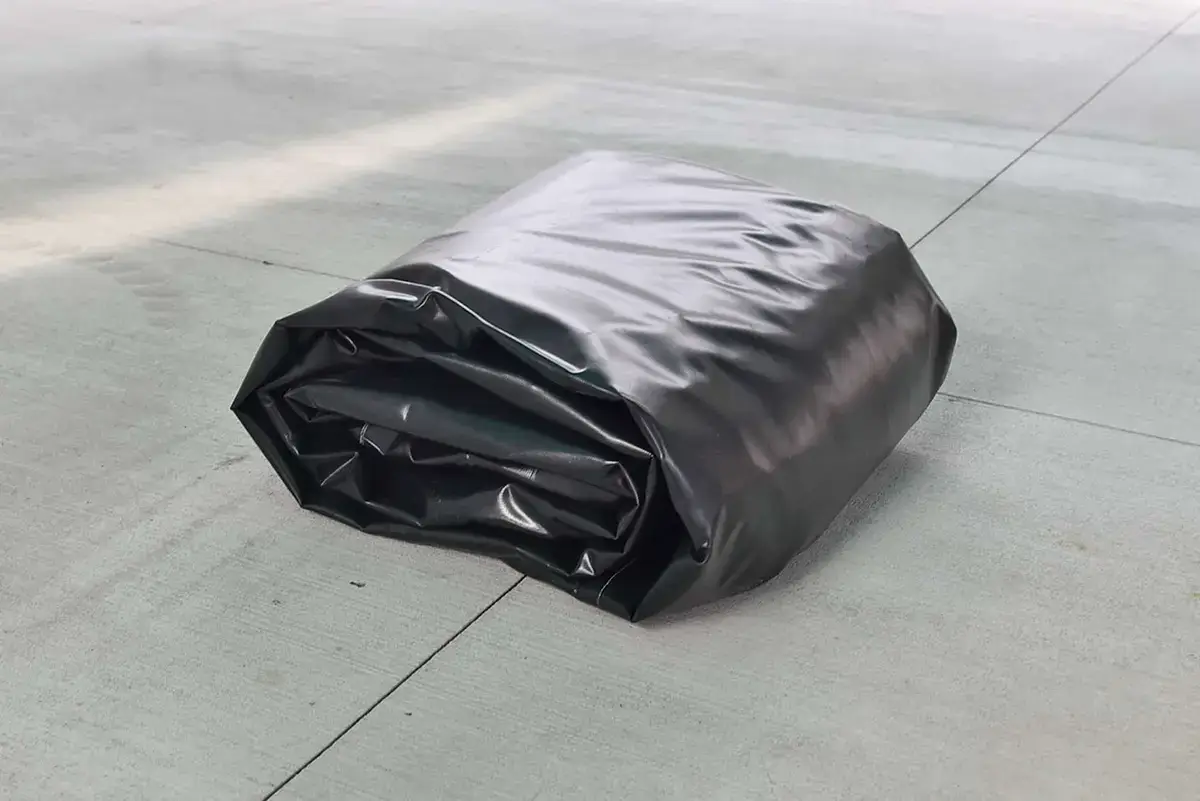

• Compact, lightweight and portable design - no inflation required.

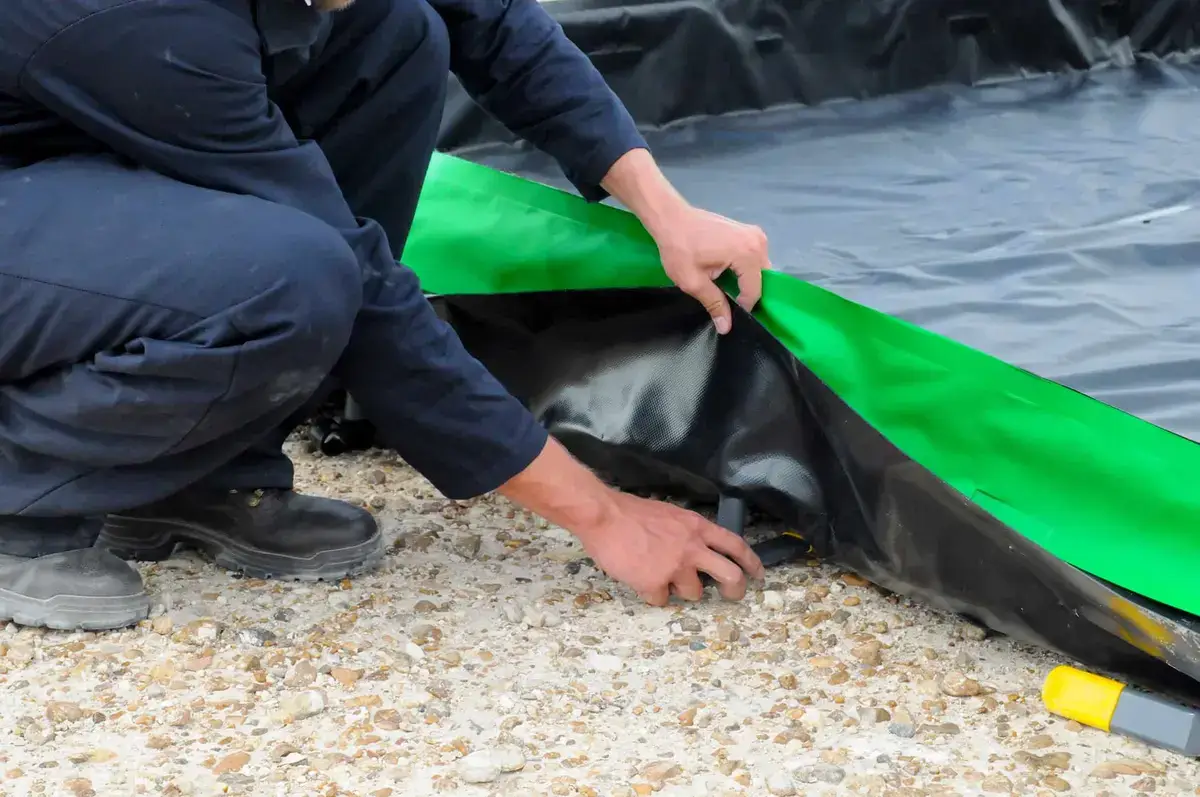

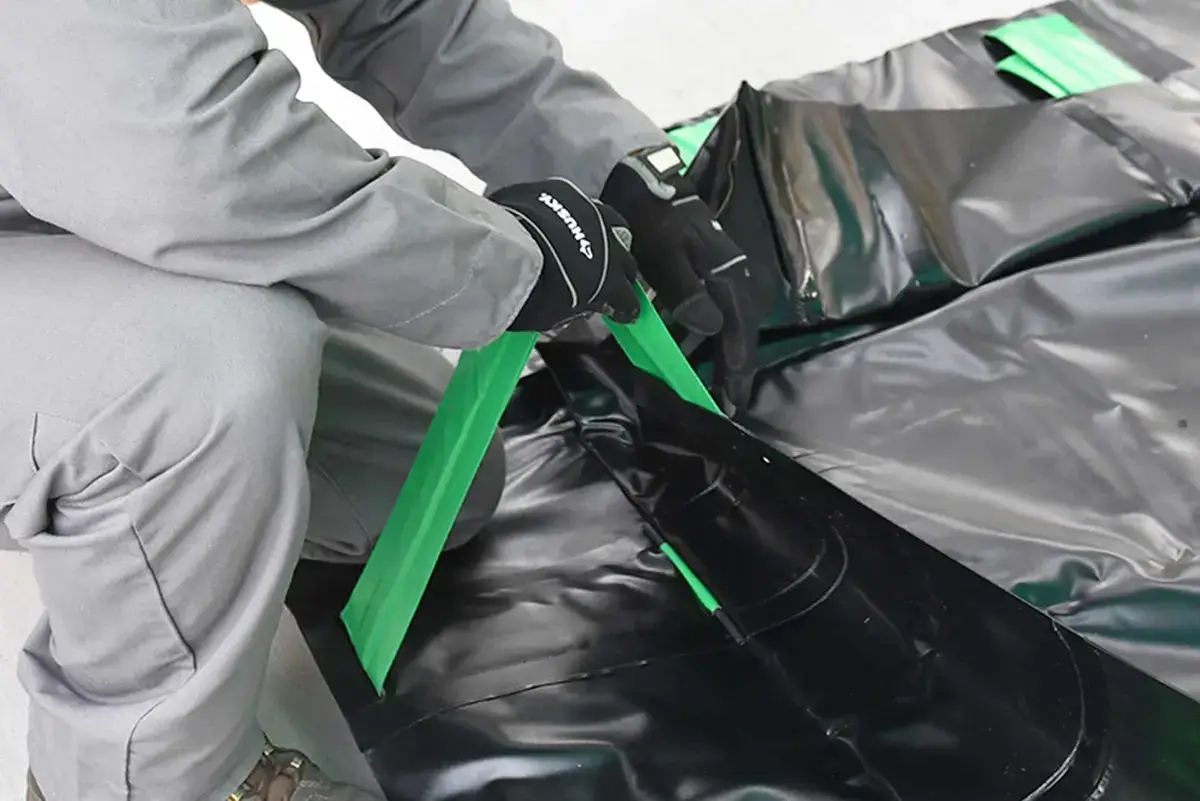

• Attached aluminum struts inserted into sleeves along the sidewall.

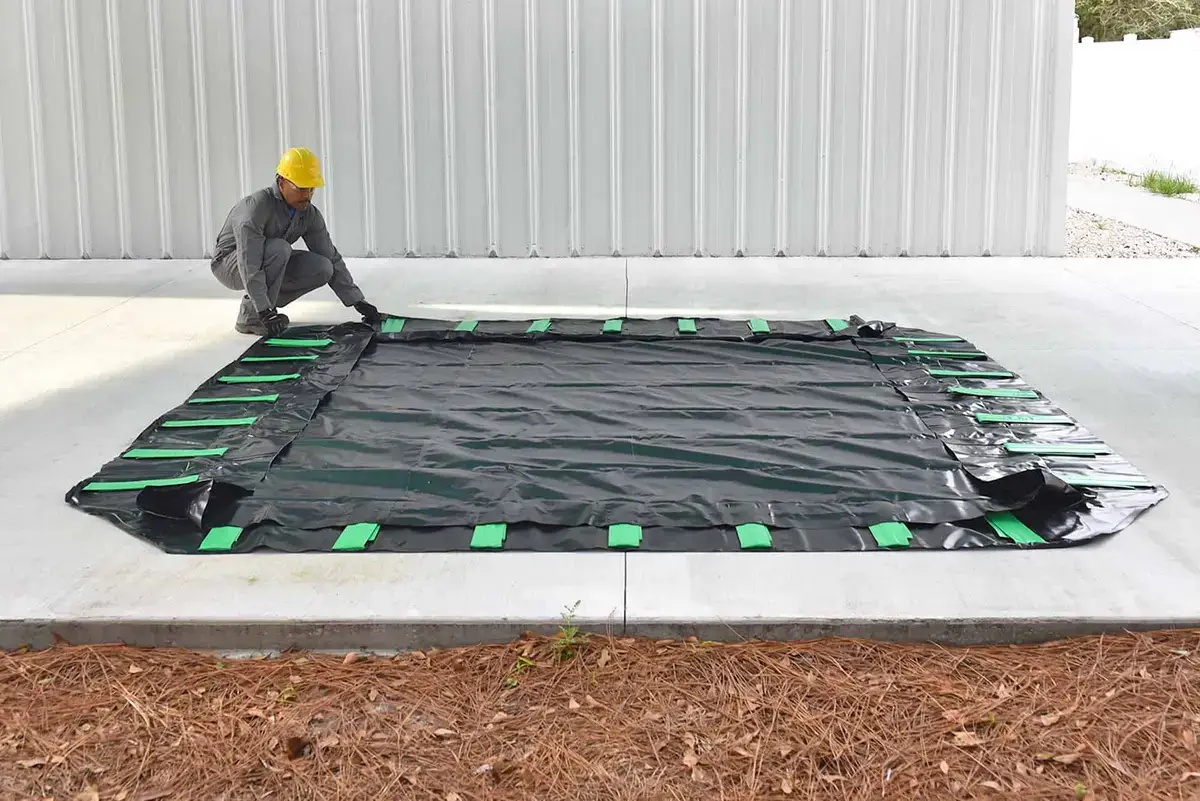

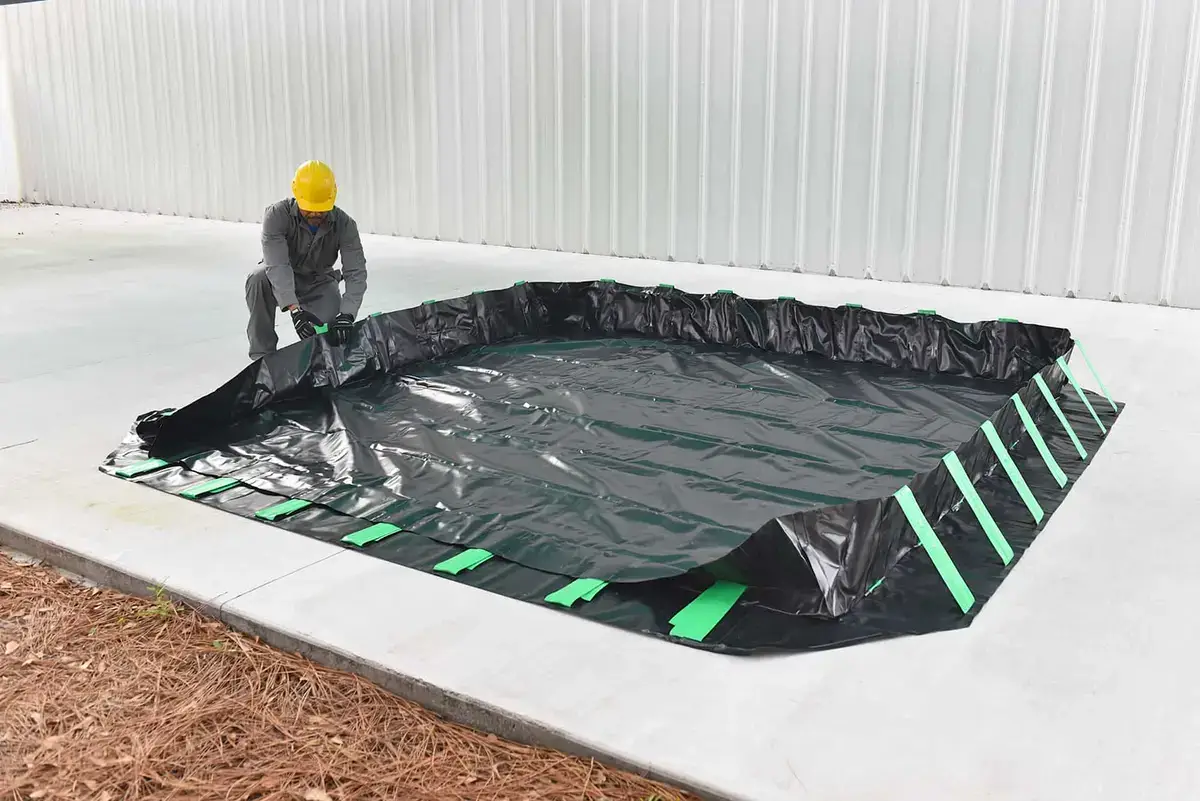

• Sidewalls can be manually lowered to ground level to allow drive in and drive out of vehicles.

Spec Sheets:

• Collapsible Wall Model
• L Bracket Economy Model
• Compact Model


Berm Chemical Compatibility / Maintenance:

• Spill Berm Chemical Guide

Available Sizes & Dimensions:

Collapsible Wall Model / 12 inch side wall height / copolymer liner:

• 4'x6' - 179 gallon containment capacity / 43 lbs
• 6'x6' - 269 gallon containment capacity / 46 lbs
• 10'x10' - 748 gallon containment capacity / 70 lbs
• 10'x20' - 1,496 gallon containment capacity / 96 lbs
• 10'x30' - 2,244 gallon containment capacity / 132 lbs
• 10'x40' - 2,992 gallon containment capacity / 170 lbs
• 10'x50' - 3,740 gallon containment capacity / 209 lbs
• 12'x12' - 1,077 gallon containment capacity / 69 lbs
• 12'x20' - 1,795 gallon containment capacity / 103 lbs
• 12'x30' - 2,692 gallon containment capacity / 142 lbs
• 12'x40' - 3,590 gallon containment capacity / 183 lbs
• 12'x50' - 4,488 gallon containment capacity / 224 lbs
• 12'x60' - 5,385 gallon containment capacity / 323 lbs
• 15'x15' - 1,683 gallon containment capacity / 95 lbs
• 15'x20' - 2,244 gallon containment capacity / 119 lbs
• 15'x30' - 3,366 gallon containment capacity / 164 lbs
• 15'x40' - 4,488 gallon containment capacity / 210 lbs
• 15'x50' - 5,610 gallon containment capacity / 319 lbs
• 15'x66' - 7,405 gallon containment capacity / 420 lbs

L Bracket Economy Model / 12 inch side wall height / copolymer liner:

• 4'x6' - 179 gallon containment capacity / 21 lbs
• 6'x6' - 269 gallon containment capacity / 26 lbs
• 10'x10' - 748 gallon containment capacity / 52 lbs
• 10'x20' - 1,496 gallon containment capacity / 88 lbs
• 10'x30' - 2,244 gallon containment capacity / 124 lbs
• 10'x40' - 2,992 gallon containment capacity / 160 lbs
• 10'x50' - 3,740 gallon containment capacity / 196 lbs
• 12'x12' - 1,077 gallon containment capacity / 69 lbs
• 12'x20' - 1,795 gallon containment capacity / 102 lbs
• 12'x30' - 2,692 gallon containment capacity / 144 lbs
• 12'x40' - 3,590 gallon containment capacity / 180 lbs
• 12'x50' - 4,488 gallon containment capacity / 227 lbs
• 12'x60' - 5,385 gallon containment capacity / 268 lbs
• 15'x15' - 1,683 gallon containment capacity / 95 lbs
• 15'x20' - 2,244 gallon containment capacity / 118 lbs
• 15'x30' - 3,366 gallon containment capacity / 165 lbs
• 15'x40' - 4,488 gallon containment capacity / 212 lbs
• 15'x50' - 5,610 gallon containment capacity / 259 lbs
• 15'x66' - 7,405 gallon containment capacity / 334 lbs

Compact Model / 12 inch side wall height / copolymer liner:

• 4'x6' - 179 gallon containment capacity / 34 lbs
• 6'x6' - 269 gallon containment capacity / 39 lbs
• 10'x10' - 748 gallon containment capacity / 72 lbs
• 10'x20' - 1,496 gallon containment capacity / 146 lbs
• 10'x30' - 2,244 gallon containment capacity / 201 lbs
• 10'x40' - 2,992 gallon containment capacity / 257 lbs
• 10'x50' - 3,740 gallon containment capacity / 312 lbs
• 12'x12' - 1,077 gallon containment capacity / 111 lbs
• 12'x20' - 1,795 gallon containment capacity / 158 lbs
• 12'x30' - 2,692 gallon containment capacity / 216 lbs
• 12'x40' - 3,590 gallon containment capacity / 274 lbs
• 12'x50' - 4,488 gallon containment capacity / 333 lbs
• 12'x60' - 5,385 gallon containment capacity / 335 lbs
• 15'x15' - 1,683 gallon containment capacity / 147 lbs
• 15'x20' - 2,244 gallon containment capacity / 179 lbs
• 15'x30' - 3,366 gallon containment capacity / 243 lbs
• 15'x40' - 4,488 gallon containment capacity / 306 lbs
• 15'x50' - 5,610 gallon containment capacity / 317 lbs
• 15'x66' - 7,405 gallon containment capacity / 404 lbs
