Ultratech Spill Containment Wall

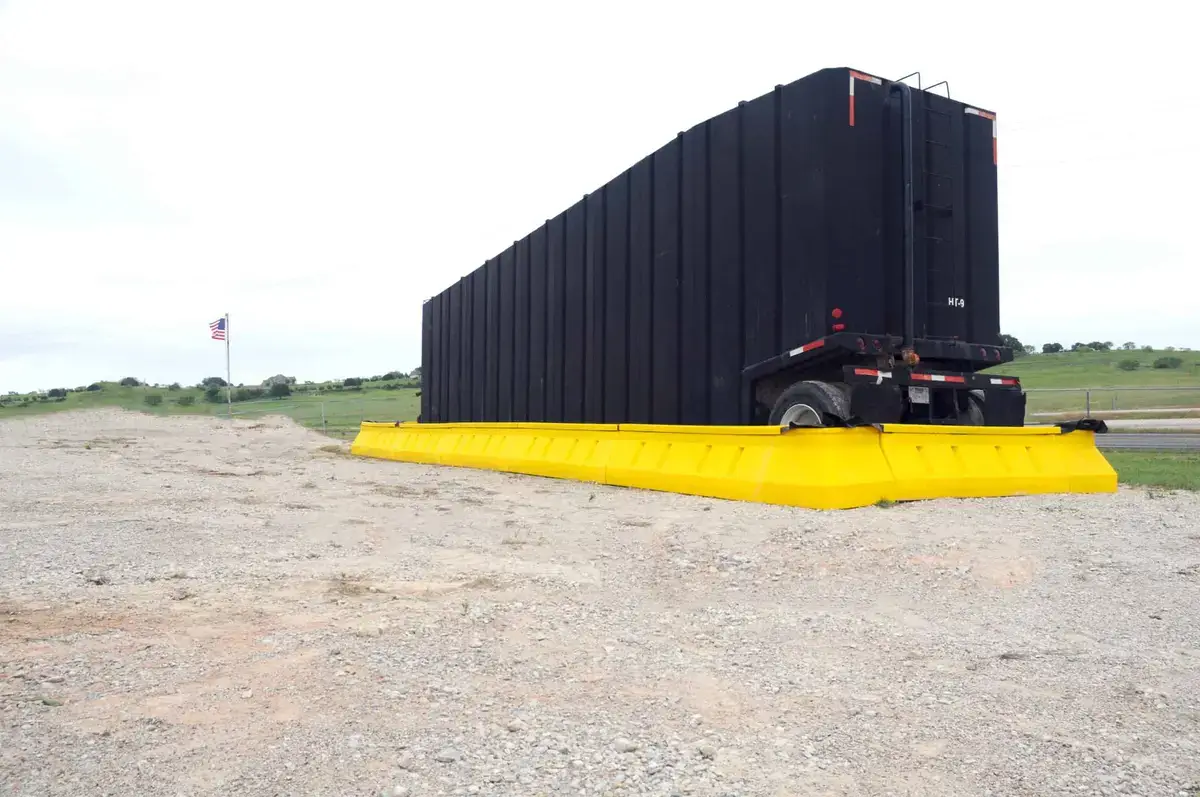

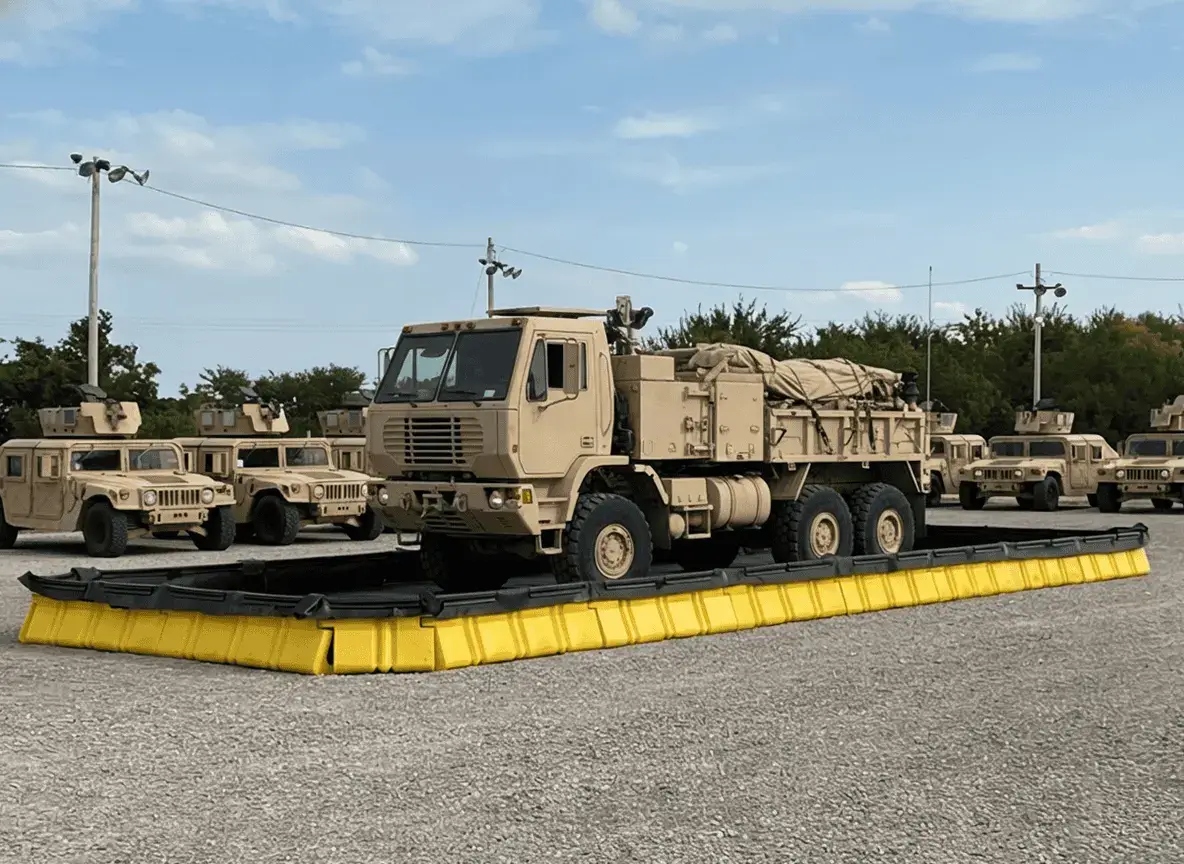

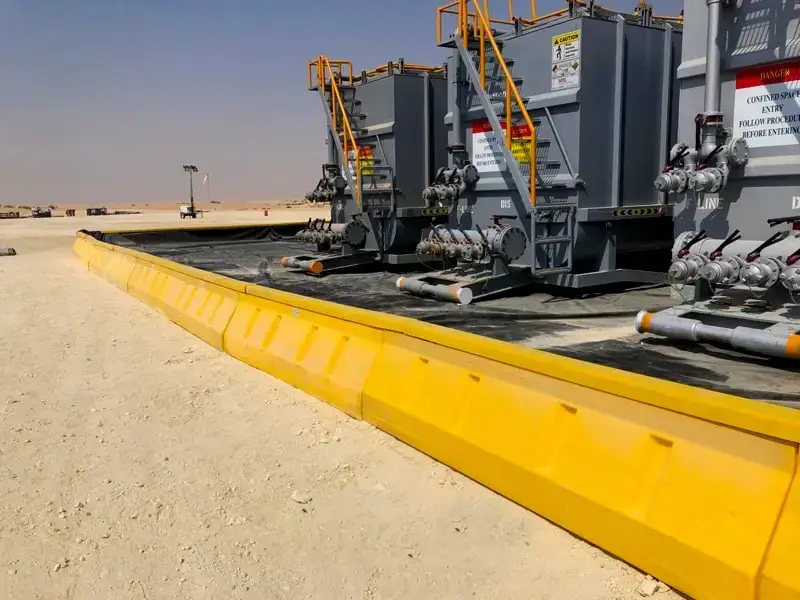

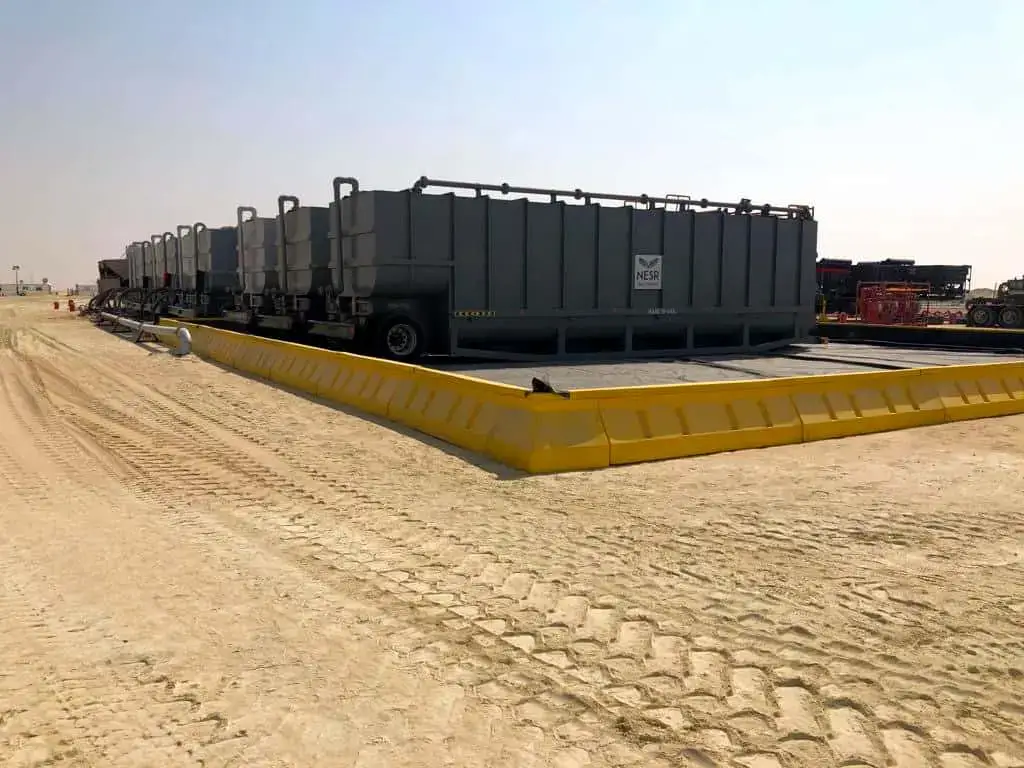

Ultratech's modular hard walled containment system provides temporary spill containment for very large equipment and very large spills.

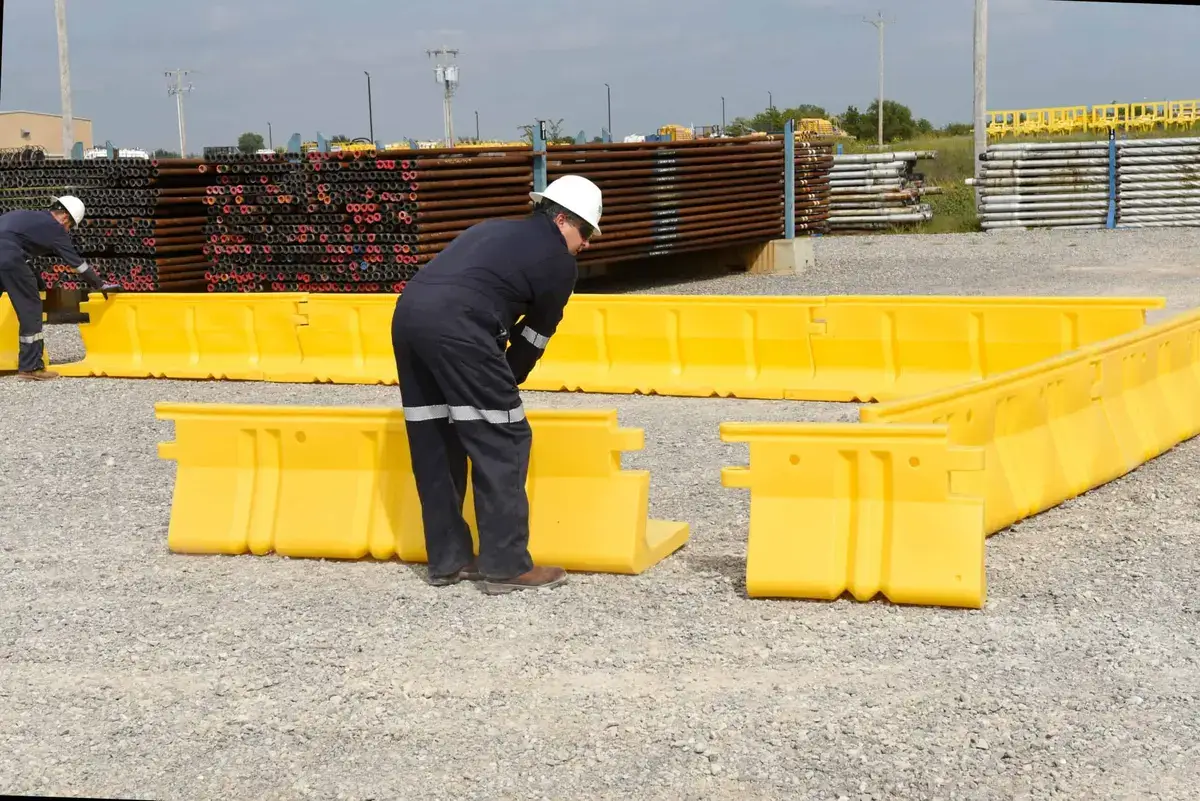

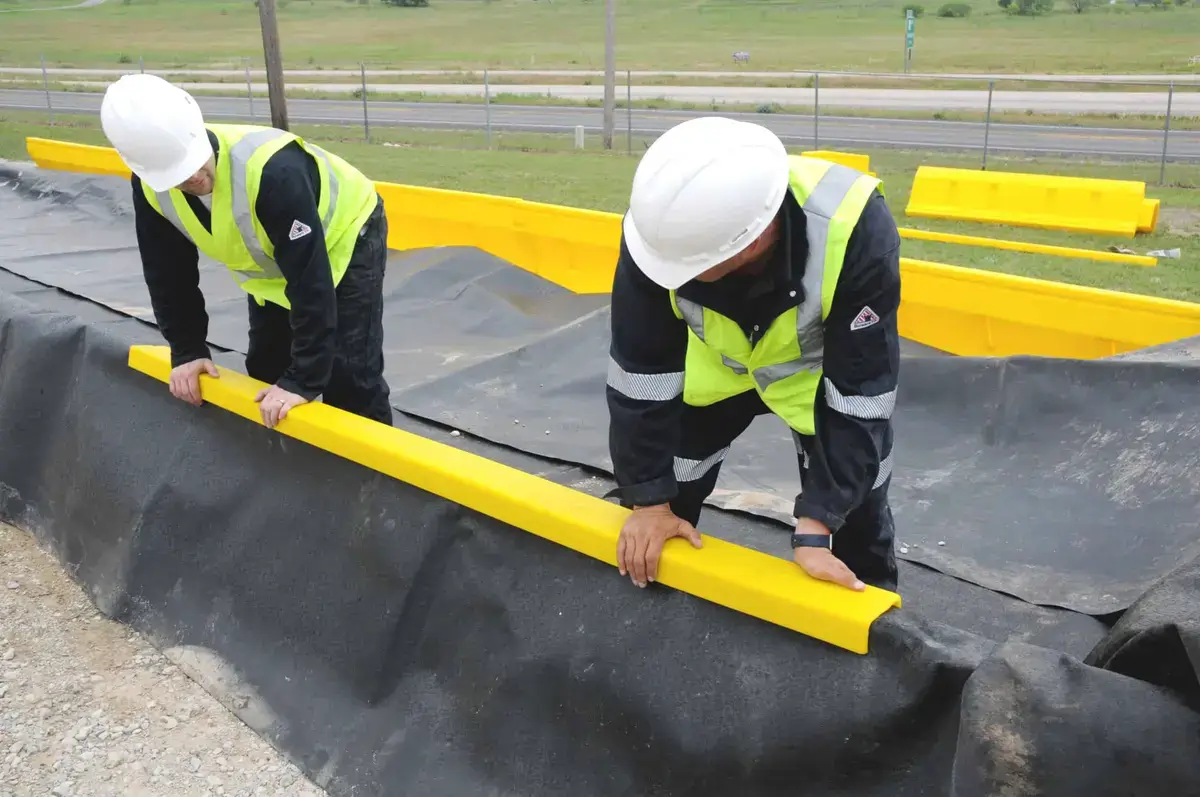

Modular wall sections can be easily assembled to form almost any size or shaped spill containment area.

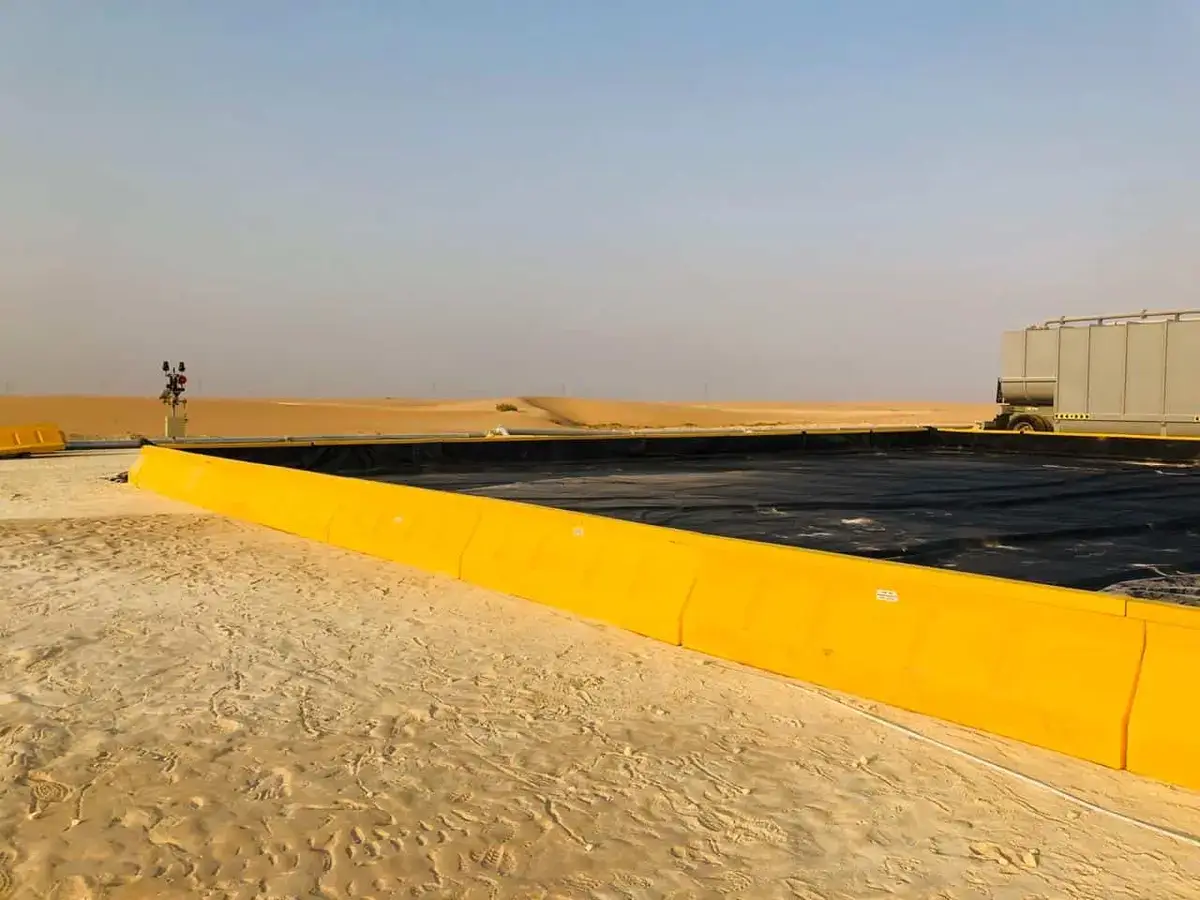

The Ultratech containment wall system is not secured to the substrate so it can be used for parking lots, sand, rocky soil, muddy soil, frozen soil or on concrete areas.

Containment Wall Types:

• M2 - standardized 86 inch straight wall lengths across all wall heights.
• M1 - variable straight wall lengths starting at 120 inches for a 1 ft high wall and declining to 72 inches long for a 3 ft wall height.

Spill Containment Wall Options:

• Containment Wall Sections - Choose a straight or corner wall section to use with an existing modular setup or for designing your own containment area.

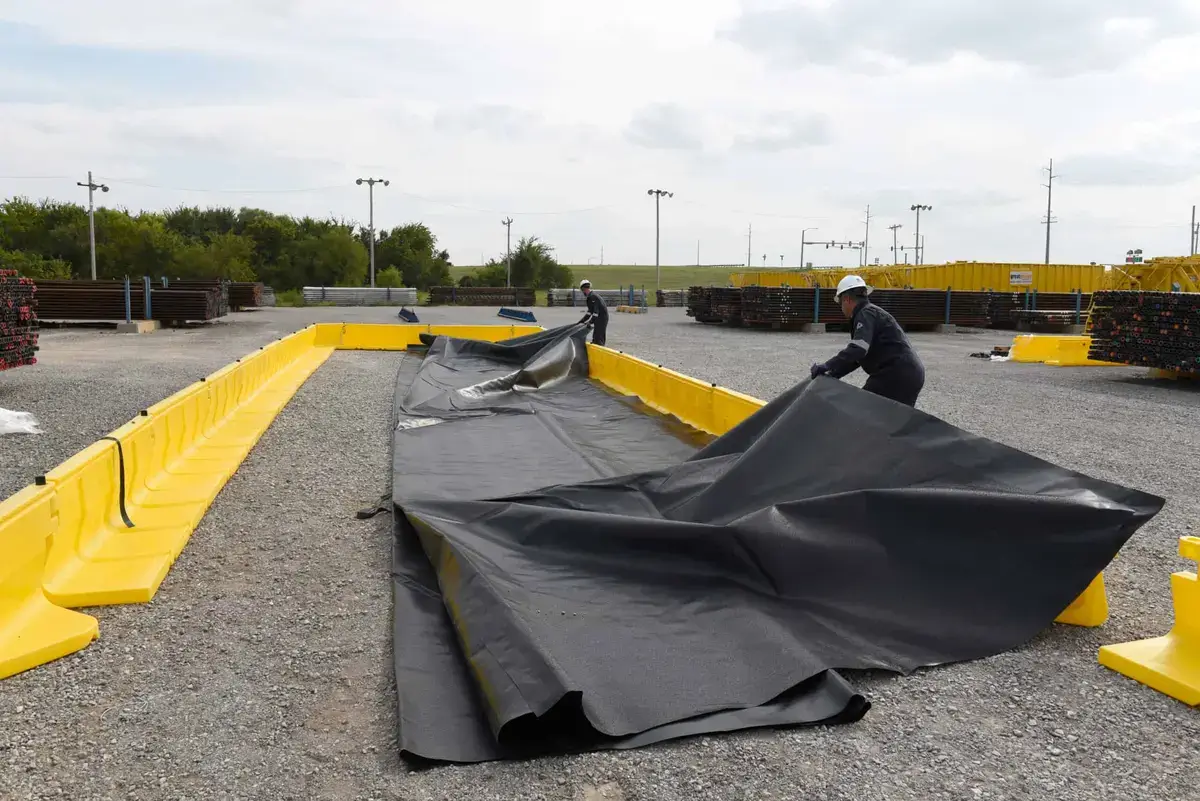

• Containment Wall Systems - Choose a pre-built containment system that includes all related components (walls + liner) to setup within a set containment capacity.

*Note:

• If you purchase individual wall sections, you will still need to purchase a liner separately.
• Containment systems include all walls & liner.  No additional liner purchase required.

Containment Wall Heights:

• Choose a 1 Ft, 2 Ft or 3 Ft. high containment wall.

M2 Systems Containment Capacity:

• 1 Ft. High M2 Containment Wall System - 6,211 gallons / 15'L x 56'W x 1'H
• 2 Ft. High M2 Containment Wall System - 12,421 gallons / 15'L x 56'W x 2'H
• 3 Ft. High M2 Containment Wall System - 18,632 gallons / 15'L x 56'W x 3'H

M1 Systems Containment Capacity:

• 1 Ft. High M1 Containment Wall System - 3,978 gallons / 10'L x 49'W x 1'H
• 2 Ft. High M1 Containment Wall System - 13,716 gallons / 16'L x 55'W x 2'H
• 3 Ft. High M1 Containment Wall System - 14,336 gallons / 11'L x 55'W x 3'H

M1 Systems Containment (Extra Long) Capacity:

• 1 Ft. High M1 Containment Wall System - 34,802 gallons / 68'L x 68'W x 1'H
• 2 Ft. High M1 Containment Wall System - 60,089 gallons / 63'L x 63'W x 2'H
• 3 Ft. High M1 Containment Wall System - 83,582 gallons / 61'L x 61'W x 3'H

Compliance Standards:

• Meets EPA Container Storage Regulation 40 CFR 264.175
• Meets SPCC - Spill Prevention, Control & Countermeasure Act

Wall Material:

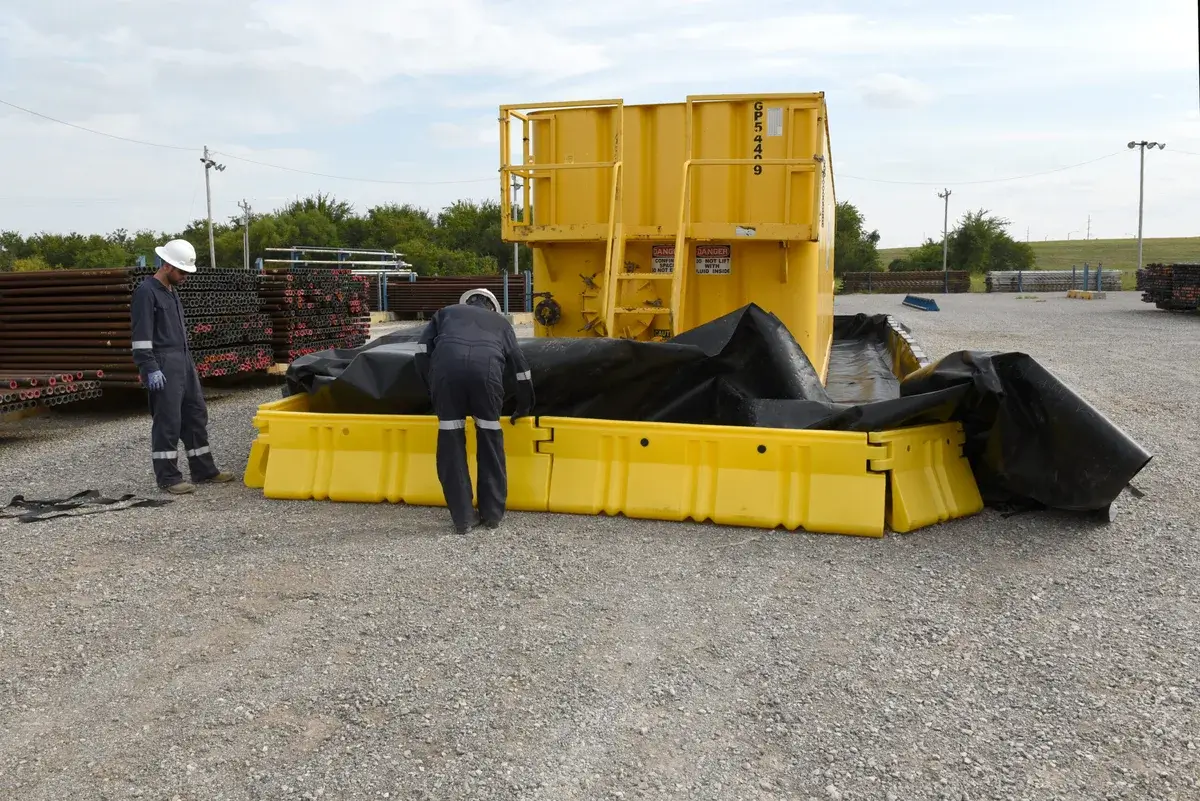

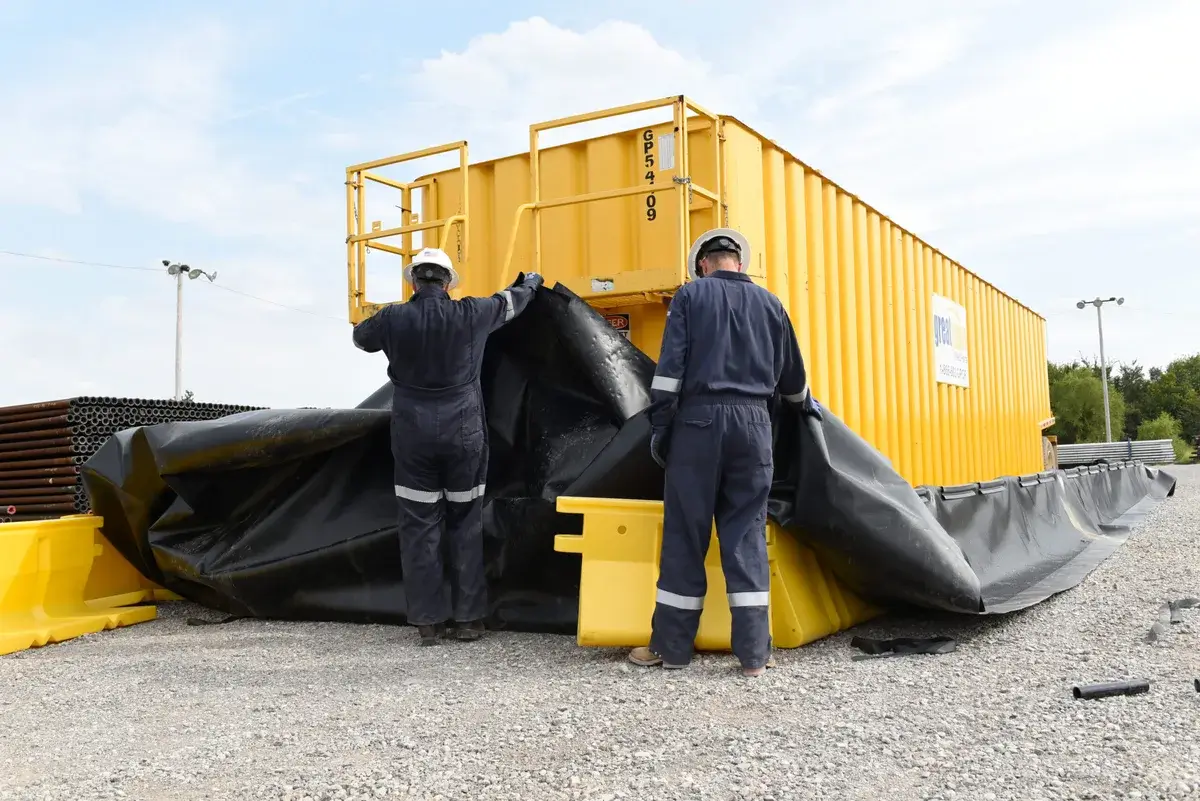

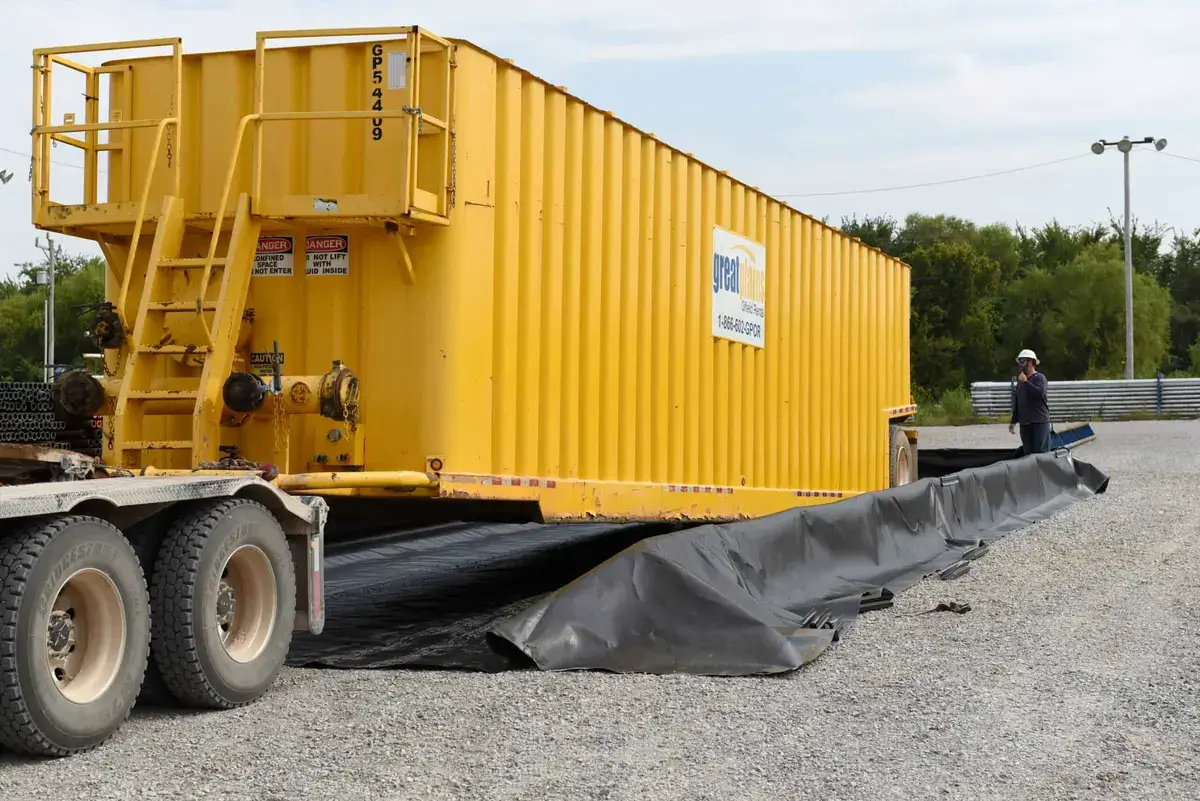

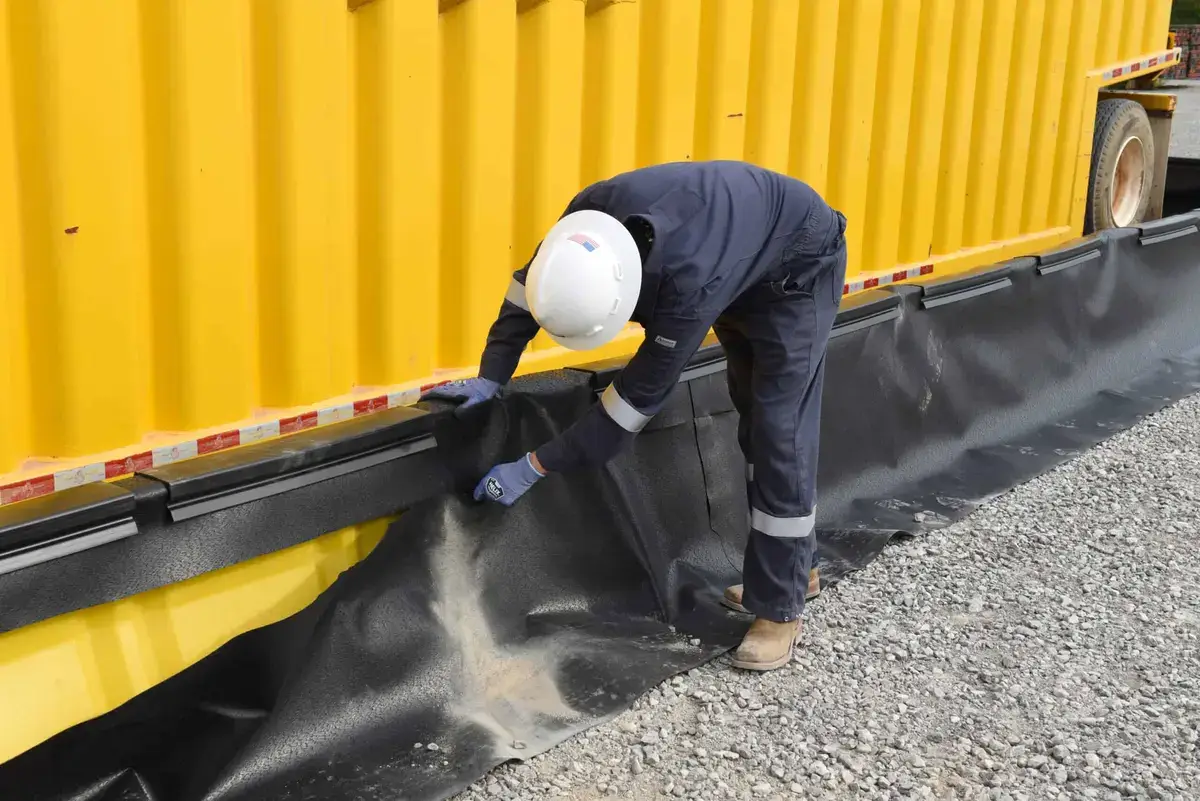

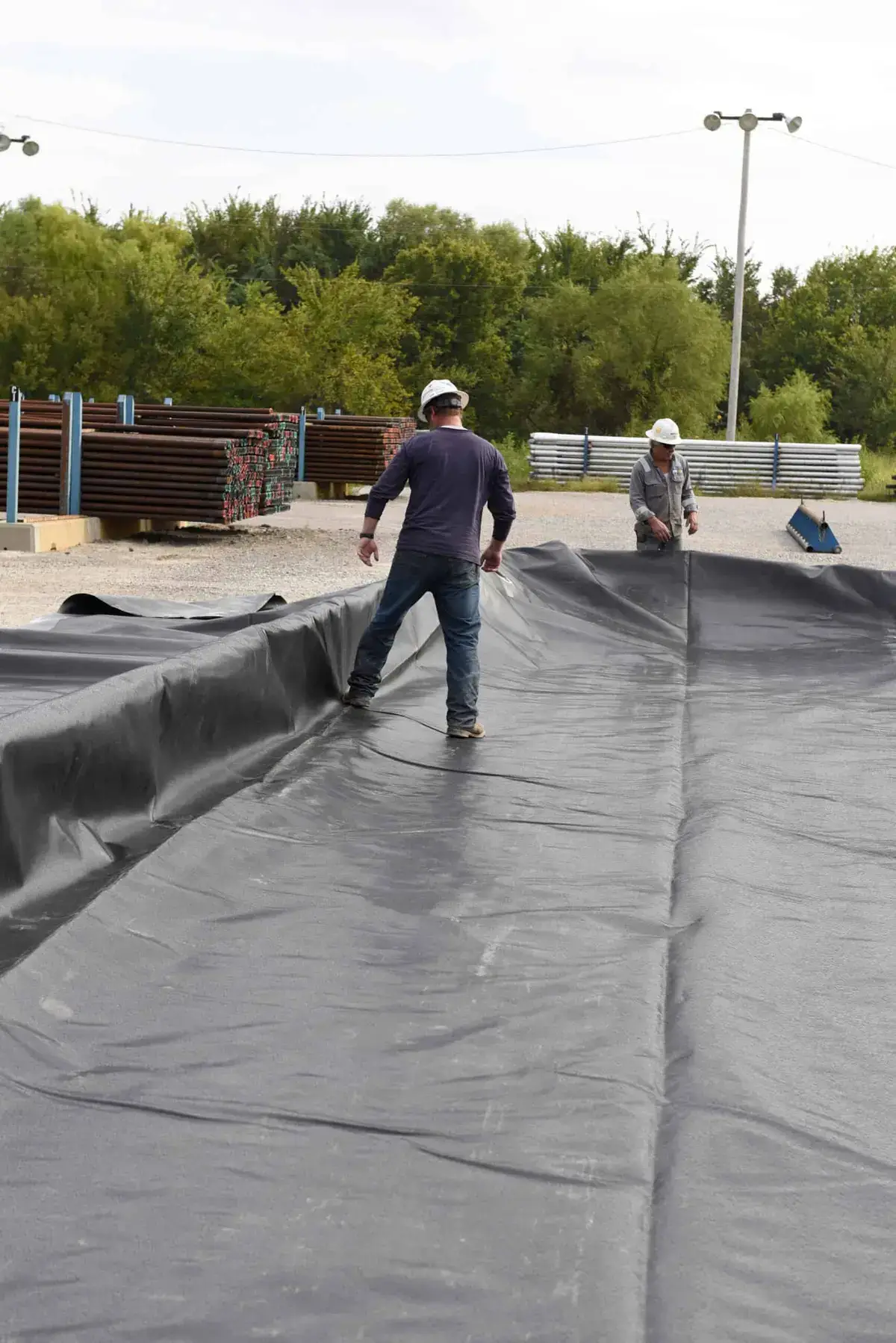

• Heavy duty 30 mil, textured polyethylene liner provides rugged, impermeable barrier to capture leaks and spills.

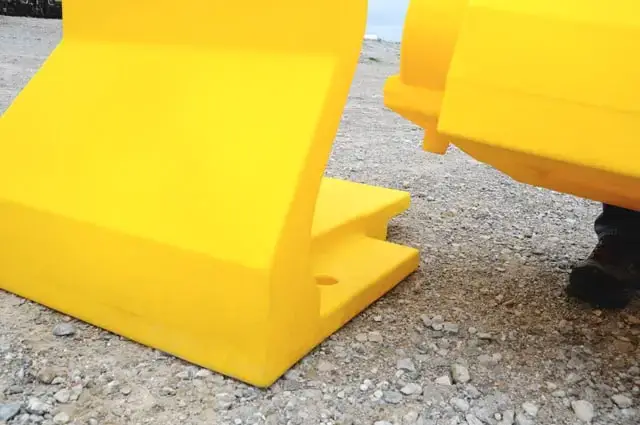

M2 Containment Wall Features:

• Standardized 86 inch long straight walls.

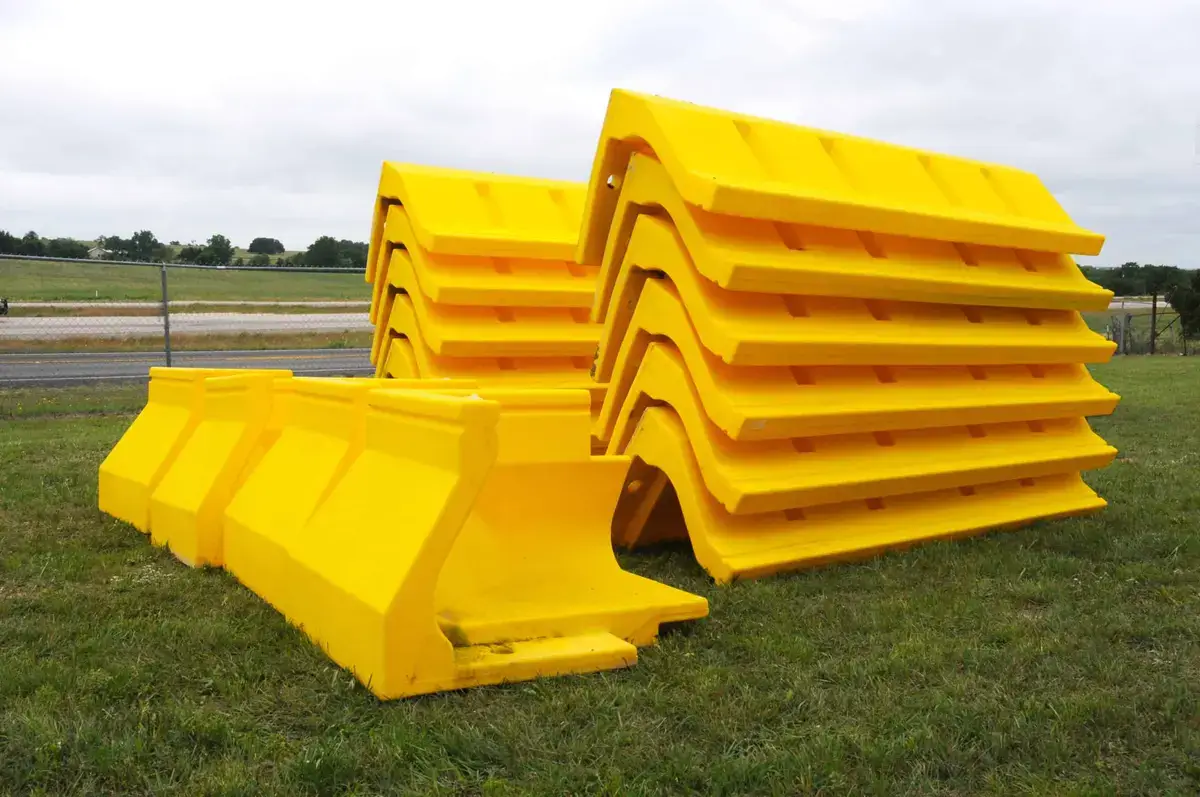

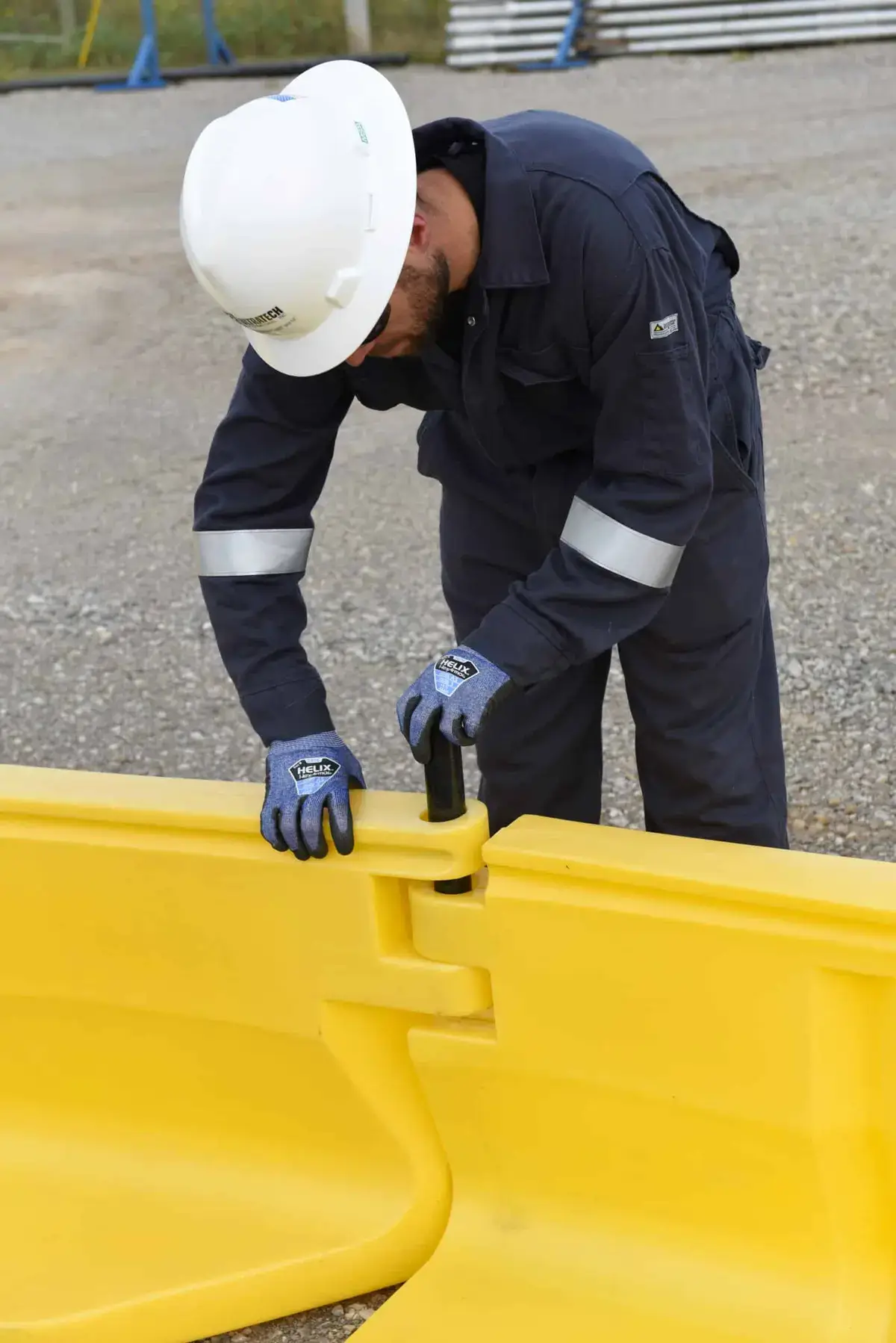

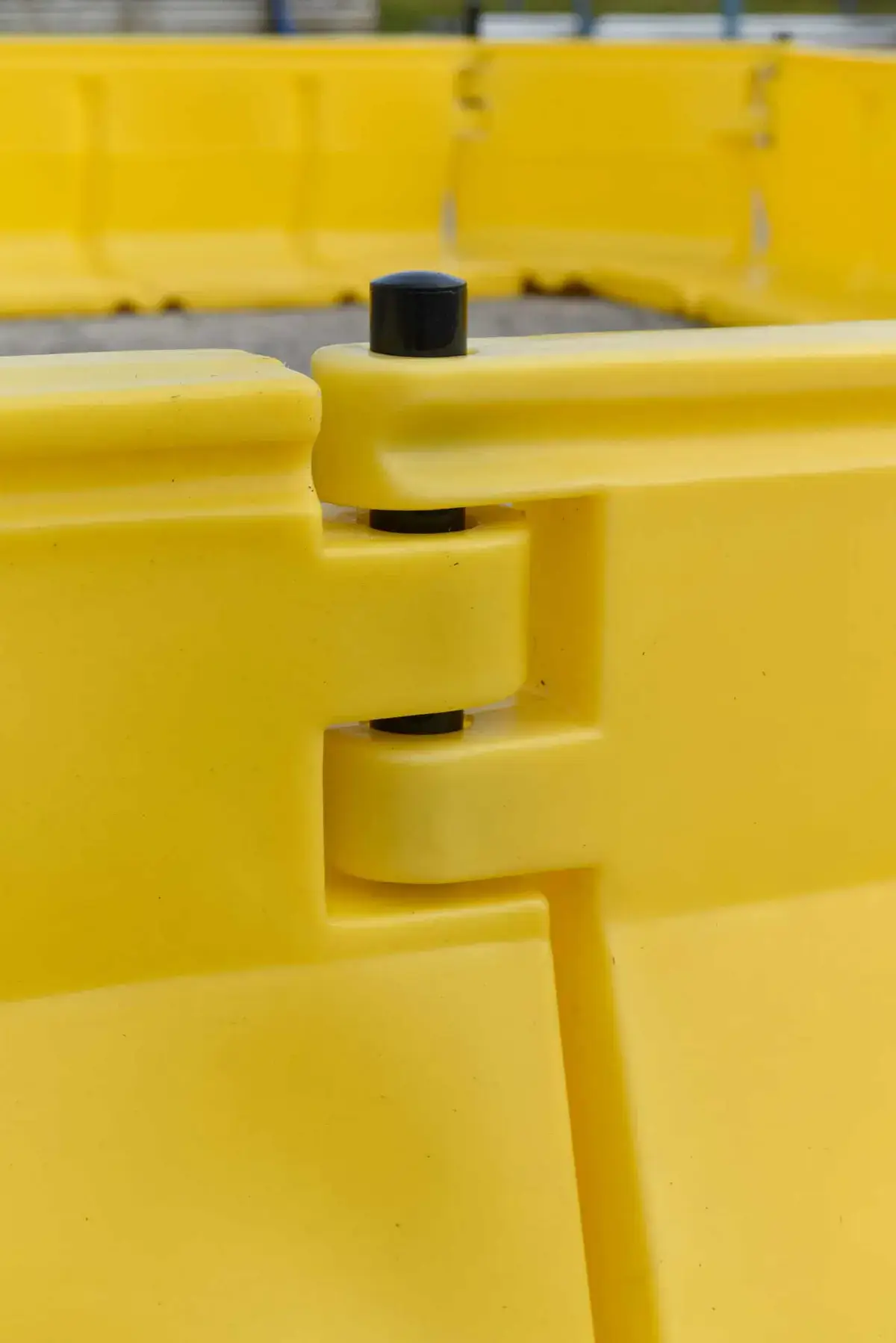

• Modular wall sections and corners can be easily assembled to form almost any shape or size spill containment area needed.
• 1 foot, 2 foot or 3 foot high sidewalls available.
• Creates a large, semi-permanent containment area.
• Choose individual wall sections or a pre-built system.
• Versatile system that can be easily disassembled for reuse.

• 5 year Manufacturer Warranty.

M1 Containment Wall Features:

• Variable straight wall lengths starting at 120 inches long.
• Provides higher containment capacity for extra large containment needs.

• Longer straight wall lengths vs M2 wall lengths at 1' & 2' sizes.
• Modular wall sections can create any spill containment area size.
• 1 foot, 2 foot or 3 foot sidewall heights.
• Easy to disassemble for reuse.

Spec Sheets:

• M2 Containment Wall
• M1 Containment Wall

• Containment Wall Liner Specs

Containment Wall Chemical Compatibility / Setup:

• M1 Containment Wall Setup Instructions
• M2 Containment Wall Setup Instructions
• Molded Poly Wall Chemical Guide
• Textured Liner Chemical Guide
• Subgrade Prep for Wall Liner

Available Sizes & Dimensions:

M2 Containment Wall Sections:

• 1 Ft Straight Wall Section - 86"L x 18"W x 12"H / 34 pounds
• 1 Ft Corner Wall Section - 36.8"L x 36.8"W x 12"H / 12 pounds
• 2 Ft Straight Wall Section - 86"L x 24"W x 24"H / 65 pounds
• 2 Ft Corner Wall Section - 36.8"L x 19"W x 24"H / 19 pounds
• 3 Ft Straight Wall Section - 86"L x 24"W x 36"H / 76 pounds
• 3 Ft Corner Wall Section - 36.8"L x 19"W x 36"H / 25 pounds

M2 Containment Wall Systems:

*All systems below include 20 straight walls & 4 corner walls:

• 1 Foot High - 15'L x 56'W - 6,211 gallon containment capacity / 728 lbs
• 2 Foot High - 15'L x 56'W - 12,341 gallon containment capacity / 1,376 lbs
• 3 Foot high - 15'L x 56'W - 18,362 gallon containment capacity / 3,075 lbs

M1 Containment Wall Sections:

• 1 Ft Straight Wall Section - 120"L x 12"W x 12"H / 33 pounds
• 1 Ft Corner Wall Section - 22"L x 22"W x 12"H / 9 pounds
• 2 Ft Straight Wall Section - 100"L x 24"W x 24"H / 70 pounds
• 2 Ft Corner Wall Section - 35"L x 30"W x 24"H / 26 pounds
• 3 Ft Straight Wall Section - 72"L x 24"W x 36"H / 60 pounds
• 3 Ft Corner Wall Section - 30"L x 30"W x 36"H / 36 pounds

M1 Containment Wall Systems:

*All systems below include 4 corner walls with different straight wall amounts:

• 1 Ft High: 10'L x 49'W / 3,978 gallon containment / 12 Str Walls / 754 lbs.
• 2 Ft High: 16'L x 55'W / 13,716 gallon containment / 18 Str Walls / 1,821 lbs.
• 3 Ft High: 11'L x 55'W / 14,336 gallon containment / 24 Str Walls / 2,157 lbs.

M1 Containment Wall Systems (Extra Large):

*All systems below include 4 corner walls with different straight wall amounts:

• 1 Ft High: 68'L x 68'W / 34,802 gallon containment / 28 Str Walls / 2,066 lbs.
• 2 Ft High: 63'L x 64'W / 60,089 gallon containment / 32 Str Walls / 3,450 lbs.
• 3 Ft High: 62'L x 61'W / 83,582 gallon containment / 44 Str Walls / 3,958 lbs.
